SKU
CE-4500HVE
Rating:
100 % of 100
$4,838.00

CE-4500HVE Vertical Band Sealer is a Vertical, Free Standing, Coding continuous band sealer that is suitable for sealing  stand up pouches, liquid-type products, and all types of thermoplastic materials and bags. Perfect for application in the food, medical, and cosmetic industries. The CE-4500HVE is  suitable for a wide range of bag heights with an adjustable sealing head and conveyor. Equipped with dry ink coding to print numbers or letters on the seal line.

  • Stainless Steel Construction
  • Digital Thermostat (not shown)
  • Product Counter (not shown)
  • 1/2 HP Motor
  • 2 Sets of Heating Blocks
  • Right Feed
  • Dry ink coding
  • 110 volt
  • 0-315”/min seal speed
  • 8mm seal width
  • 11.8” wide conveyor

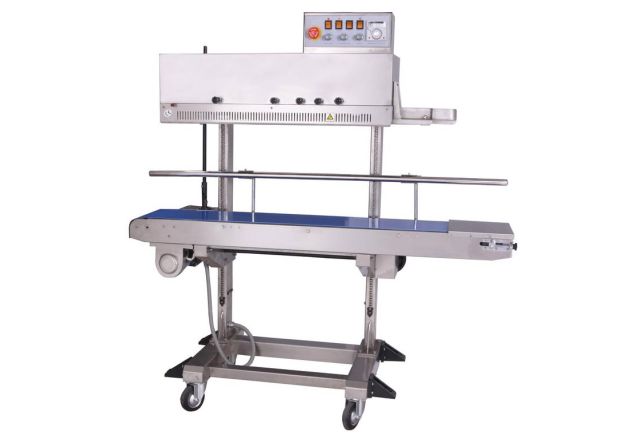

CE-4500HVE Vertical Band Sealer
CE 4500 HVE Continuous Vertical Band Sealer CE-4500HVE Vertical Band Sealer

Details

CE-4500HVE Vertical Band Sealer is a Vertical, Free Standing, Coding continuous band sealer that is suitable for sealing  stand up pouches, liquid-type products, and all types of thermoplastic materials and bags. Perfect for application in the food, medical, and cosmetic industries. The CE-4500HVE is  suitable for a wide range of bag heights with an adjustable sealing head and conveyor. Equipped with dry ink coding to print numbers or letters on the seal line.

  • Durable stainless steel construction
  • Easy Operation with Minimal Training
  • Fast warm up time
  • Ideal for medium duty and heavy duty applications
  • Digital Thermostat (not shown)
  • Product Counter (not shown)
  • Vertical configuration makes this suitable for any product including liquids
  • Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality
  • Motorized rubber conveyor for speed control
  • Knurled pressure wheels with variable pressure adjustment
  • Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks
  • Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)
  • Dry ink coding allows for printing at the seal line
  • Unit feeds from Right to Left
  • Spare parts includes: PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, and type set





UNIQUE FEATURES  ADJUSTABLE SEALING HEAD
FEEDING  RIGHT TO LEFT
POWER  110V / 60HZ
MOTOR POWER  230 (1//3 HP)
SEALING SPEED  0-394 INCHES/MINUTE
SEAL WIDTH  8MM
TEMPERATURE RANGE  0-300° C
SEALING POWER  300 X 2
CONVEYOR SIZE  55" X 10"
SINGLE CONVEYOR LOAD  11 LBS

MAX CONVEYOR LOAD

 33 LBS
BAG SIZE (FILLED)  3.9" - 27.0"
DISTANCE FROM CONVEYOR TO FLOOR  19.6" - 41.3"
CHARACTER SIZE
(FOR PRINTING VERSION - 1120AL/D

 TWO TYPES AVAILABLE

R TYPE: PT 18PH - 2 LINES
OPTION: PT 10.5 - 3LINES

PRINTING HEATING POWER (W)  40 X 2
PRINTING OPTIONS  20 CHARACTERS / LINE
DIMENSIONS  57" X 27" X 58"
SHIPPING DIMENSIONS  62" X 28" X 68"
WEIGHT  344 LBS / 450 (gw)


View All Bag Sealing Machines

Specs

More Information
Power Supply 110V / 60Hz
Sealing Speed 0-394 Inches/Minute
Temperature Range 0-300° C
Construction Digital Thermostat (not shown) Product Counter (not shown)
Conveyor Size 55" x 10"
Conveyor Load Max Conveyor Load (Single) 11 lbs
Conveyor Load (Max) 33 lbs
Seal Width 8mm
Minimum Vertical Bag Height 3.9"
Maximum Vertical Bag Height 27"
Print Specs 20 Characters per Line
Amperage 1050W 9.5A

Reviews 9

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Downloads

pdf
(Size: 2.2 MB)
CE-4500-HVE Continuous Sealer Operation Manual
pdf
(Size: 600.4 KB)
CE-4500HVE Continuous Band Sealer Product Brochure

Videos

FAQ (3)

Customer Questions
How do you use a bag sealer?

Check out our video to operate the CE-2500-HVE Continuous Band Sealer for bag sealing applications.

What is a sealing machine used for?
Many industries use continuous band sealers for mid- to high-volume bags or film sealing of stand up pouches, liquid-type products, and all types of thermoplastic materials and bags. Cleveland Equipment offers a variety of band sealers, and each is able to seal single or composed bags or film with a thickness of up to 20 mils.
What is sealing temperature?
Heat is applied to the outside surface of the film and transfers inward, melting the sealant. The seal initiation temperature is the minimum temperature at which seal strength is obtained.
