Max Pallet Size
50” W x 50” L x 98” H
Power Supply
120V / 1Ph / 15A Dedicated Service
Machine Weight
1,300 Lbs.

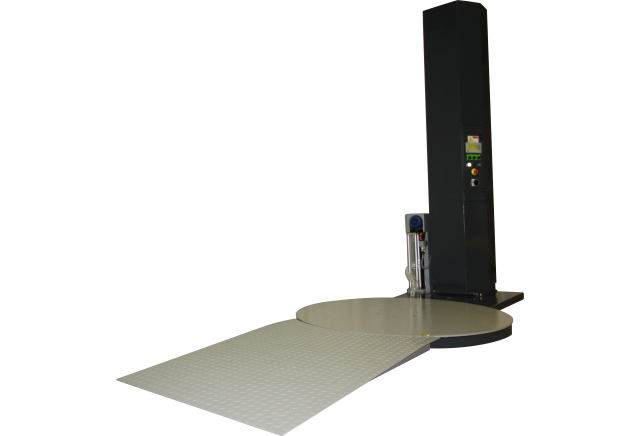

Turntable
<ul> <li>59" diameter laser-cut steel plate</li> <li>16 point cam-follower support system</li> <li>3" Turntable height</li> <li>Safety surround ring encloses turntable</li> <li>Ramp accessible on all three sides</li> </ul>
Turntable Drive
<ul> <li>0-12 RPM variable speed</li> <li>1 HP AC motor with variable frequency drive</li> <li>ANSI #50 direct chain drive with shock dampener</li> </ul>

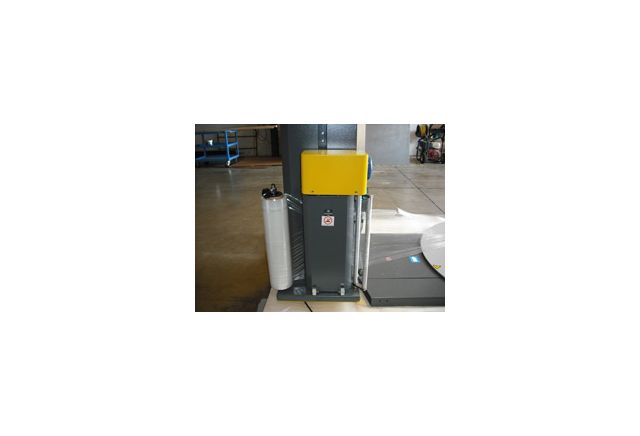

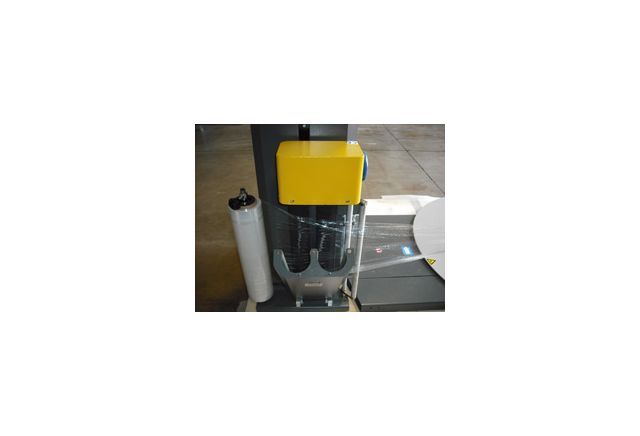

Film Delivery
<ul> <li>Quick thread web tensioning system</li> <li>200% Powered Prestretch</li> <li>Electronic film tension control</li> </ul>
Film Capacity
20" machine grade film
Control Features
<ul> <li><span>Simple to operate</span></li> <li><span>LCD Screen and PLC</span></li> <li><span>Programmable wrap pattern </span></li> <li><span>Single button automatic cycle start</span></li> <li><span>Emergency stop button</span></li> <li><span>Variable film carriage speed</span></li> <li><span>Auto load height photo-eye </span></li> <li><span>Manual controls</span></li> </ul>
