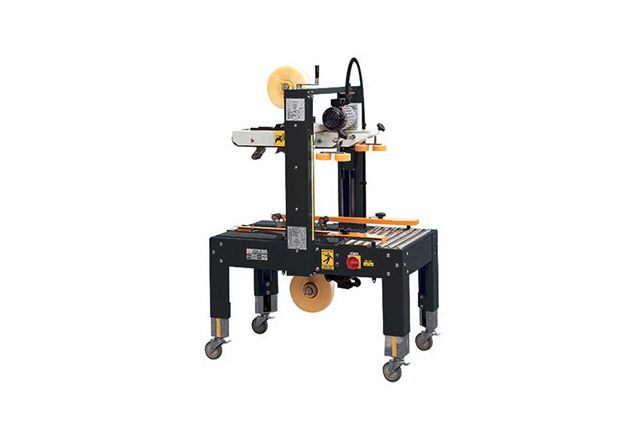

CE-652 Uniform Top Bottom Drive Case Sealer Machine

Name: CE-652 Uniform Top Bottom Drive Case Sealer Machine
Brand: ABSealer
SKU: TB-652
Availability: InStock
Rating: 5.0 (1 reviews)

Speed: Up to 2,400 Cases/Hour (65 fpm)
Case Length: 6" minimum – no maximum
Case Width: 7" minimum – 20" maximum
Case Height: 4.5" minimum – 20" maximum
Electrical: 110VAC-1PH-60Hz – 10 Amps
Air: None
Dimensions: 40"L x 31"W x 50-65"H
Weight: 300 lbs

SKU#: TB-652

$4,850.00

Shipping calculated at checkout.

or Request a Quote

866-888-6327

Details

The CE-652TB Uniform Top Bottom Drive Case Sealer is extremely versatile for standard sized cases. Four belt positively control cases. Manual flap folding.

Plug-in Operation
Dual Masts with twin lead screws for stability
Precise Top and Bottom sealing
Dual, Top Mounted Belt Drives for top control
Heavy Duty Side-Belt Drives ensure square cases
Side Mounted Compression Rollers for tight seals
Adjustable Leg Supports
Easy case-size change-over – two crank handles

Specifications

Power Supply: 110VAC-1PH-60Hz – 10 Amps

Min Box Size: 4.5" H x 7" W x 6" L

Max Box Size: 20" H x 20" W x ∞ L

Drive: Top & Bottom Belts

Air Supply: None

Dimensions: 40"L x 31"W x 50-65"H

Machine Weight: 300 lbs

Downloads

CE-652 Uniform Top Bottom Drive Case Sealer Brochure (Size: 119.0 KB)

CE-652 Uniform Top Bottom Drive Case Sealer Brochure
