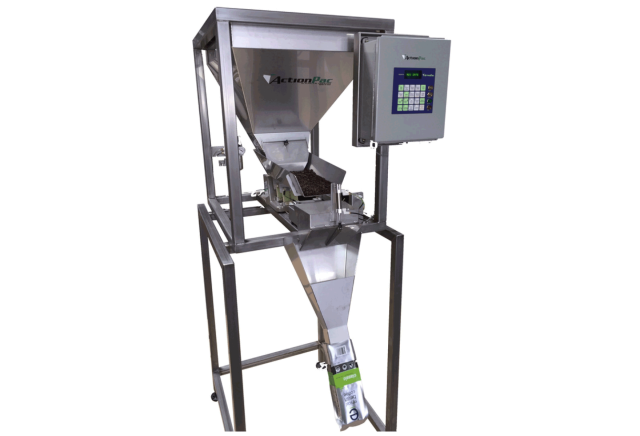

CE-ME-109 Linear Weigh Filler*

Machine comes with a 1 year limited part warranty and tech support.

The CE-ME-109 linear weigh filler is a programmable net-weigh scale for accurately filling bags, jars, pouches, and similar containers with dry, free-flowing particulates. The machine fills a weigh bucket to the programmed target, pauses to allow product to settle, then releases the measured product through the selected funnel.

Accurate net-weigh filling for dry products

The standard ME109 series covers approximately 1 oz to 5 lb, with the actual working range determined by the bucket, funnel, product, and system configuration. It is well suited to coffee and other dry, free-flowing particulates that need repeatable weights and controlled filling.

Programmable control with simple daily operation

• Recall a program and run: Factory-installed programs are tuned to the supplied product sample. Operators can recall the appropriate two-digit program, empty the weigh bucket, and press Run.
• Bulk and dribble filling: The feeder runs at bulk speed until the bulk cutoff, then uses dribble speed to approach the target weight.
• Check Delay: A programmable pause lets product in transition settle before the final weight is evaluated, balancing accuracy and throughput.
• Setpoints and subroutines: Target weight, bulk cutoff, feeder speeds, bucket timing, check delay, and other operating instructions can be stored in each program.
• Supervisor access: Program access controls help prevent accidental changes to speed and accuracy settings.
• Continuous production: In Run mode, the scale continues filling and dispensing until the operator presses Stop.

Modular buckets and funnels

• Quick-disconnect bucket and funnel mounting supports convenient changeovers.
• Open utility funnels support flat bags that do not need forming before filling.
• Side-gusset and quad-seal bag funnels help form and open bags with square or flat bottoms.
• Stand-up pouch funnels support doypouches, stand-up pouches, and bottom-gusset bags.
• Custom funnels can be configured for unusual bag formats and applications.
• The current listing includes a small-bucket resolution of approximately 0.01 oz and a large-bucket resolution of approximately 0.01 lb. Actual resolution depends on the bucket and program.

Built for repeatable production

• Standard hopper capacity is approximately 2.4 cubic feet.
• Hopper gate height controls product flow onto the feeder pan and should be set as low as practical for consistent control.
• Digital keypad and LED display provide program, weight, and cycle-status feedback.
• Accept and Over indicator lights show whether the completed cycle is within the programmed limits.
• Foot pedal releases product only after the programmed target and check sequence are complete.
• Factory-installed programs are typically set conservatively at approximately 8-12 cycles per minute for accuracy, with tuning possible for suitable products.
• The current listing states USDA/FDA materials and construction.

Typical applications

Use the CE-ME-109 for coffee, grains, seeds, and other dry free-flowing particulate products that need consistent net weights in bags, jars, pouches, or similar containers. Performance depends on product flow characteristics, target weight, bucket, funnel, and program settings.

Specifications

• Machine type: Programmable linear net-weigh filler
• Standard ME109 range: Approximately 1 oz to 5 lb, depending on configuration
• Hopper capacity: Approximately 2.4 cu. ft.
• Resolution: Approximately 0.01 oz with the small bucket or 0.01 lb with the large bucket, as configured
• Operation: Program recall, Run/Stop control, bulk and dribble stages, check delay, and foot-pedal discharge
• Controls: Digital keypad, LED display, indicator lights, setpoints, and programmable subroutines
• Power: Regulated 115 VAC; connect directly to a grounded dedicated circuit and do not use an extension cord
• Compressed air: Semi-automatic system air volume is negligible; the manual recommends a storage tank of at least 5 gallons to avoid constant compressor cycling
• Funnel options: Open flat-bag, side-gusset, quad-seal, stand-up pouch, and custom configurations
• Construction: USDA/FDA materials and construction, according to the current listing

For best results, control product flow before increasing feeder speed, keep the product level on the feeder pan low and consistent, empty the weigh bucket before starting, and calibrate with a verified known weight. Review the supplied manual for programming, calibration, funnel setup, speed and flow tuning, and maintenance guidance.
