Question 1

What is the Fischbein Model F portable bag closer, and what bag materials can it sew?

Accepted Answer

The Fischbein Model F is a 12 lb (5.4 kg) handheld, commercial-grade single-thread sewing machine that closes open-mouth bags made of plastic, woven polypropylene, multi-wall paper, composite materials, and jute. It is used across feed, seed, grain, fertilizer, flour, minerals, pet food, and chemical packaging. Fischbein has built portable bag closers since the 1950s, and the F Series is the most widely deployed handheld closer in North American plants.

Question 2

How fast is the Model F, and how many bags can one operator close per hour?

Accepted Answer

The Model F sews at 38 feet per minute (11.6 m/min) with a maximum motor speed of 1,830 RPM at full load, producing an average 3.75 stitches per inch (6.8 mm per stitch). At that rate the machine stitches across a typical 20-inch bag mouth in roughly three seconds, so real-world throughput is limited by bag handling rather than sewing speed — most single-operator stations run in the range of several hundred bags per hour.

Question 3

What is the warranty on the Fischbein Model F, and how do I register it?

Accepted Answer

The Model F ships with a warranty card at the front of its operator's manual, and Fischbein instructs owners to fill it out and mail it in as soon as possible. Complete it using the housing nameplate, which carries the model identification, weight, and serial number — record those numbers before you discard the packaging. Fischbein's manual states that warranty terms are governed by the standard terms and conditions of sale rather than by the manual itself. Cleveland Equipment supplies the Model F with the manufacturer's standard 12-month parts warranty from date of shipment. For warranty questions or claims, contact Cleveland Equipment at 866-449-2794 or sales@clevelandequipment.com.

Question 4

Are replacement parts available for the Model F, and do aftermarket parts void the warranty?

Accepted Answer

Yes — the Model F is fully supported with genuine Fischbein spare parts, and its operator's manual includes complete exploded-view drawings and part-number listings for every assembly, so any wear item can be identified and ordered by number. Fischbein states plainly that its parts are designed specifically for Fischbein equipment and that use of non-Fischbein parts can void the product warranty — that includes using non-Fischbein lubricants. Common consumables and wear parts include the timing drive belt, looper, feed dog, throat plate, thread and stationary knives, needles, motor brushes, and the 115 VAC or 220 VAC drive motor assembly. Fischbein also catalogs an oil-and-needles kit and a Model F tool kit. Order parts through Cleveland Equipment at 866-449-2794 or sales@clevelandequipment.com.

Question 5

How much does the Fischbein Model F cost, and what comes with it?

Accepted Answer

The Model F portable bag closer is $1,090.00 from Cleveland Equipment, with shipping calculated at checkout. Each machine is packed in a padded corrugated carton and ships with Fischbein #5-100 lubricating oil already in the reservoir plus a separate container of oil, along with the operator's manual and warranty card. The crepe tape attachment and the suspension unit are optional add-ons ordered separately. Budget also for 8 oz thread cones, spare needles, and Fischbein #5-101 cleaning lubricant.

Question 6

Does the Model F run on 115V or 230V, and can the voltage be changed later?

Accepted Answer

The Model F is available in either 115V or 230V, but it is wired at the factory for the voltage specified when the machine is ordered — so choose correctly at purchase rather than planning to convert it in the field. The customer supplies the incoming electrical connection; Fischbein recommends SO 12/4 (12 AWG, 4-conductor) cable and requires the machine to be bonded to building electrical ground per the National Electrical Code and local codes. The drive motor is a start-stop duty motor, not designed for long continuous running.

Question 7

What Model F variants are available besides the standard unit?

Accepted Answer

Fischbein builds five F Series configurations. The standard Model F is the handheld 115V/230V unit. The Model F-12V (#40179) runs from a 12-volt DC vehicle battery for field and mobile work. The Model F-S (#40565) is base-plate mounted to close bags lying horizontally, most commonly padded envelopes. The Model F-FH (#40670) reorients the handle for horizontal bag closing. The Model F-A (#40665) replaces the electric motor with a pneumatic air motor running best at 100 PSI through a 3/8 in. minimum ID hose — the right choice for wet or dusty rooms where air is preferred over electric.

Question 8

How do you oil and maintain a Fischbein Model F?

Accepted Answer

The Model F uses a manual oiling system. Before operating, fill the reservoir with genuine Fischbein #5-100 lubricating oil and press the pump button four times; then apply oil from the pump every four hours of operation. Daily, keep the machine free of dust and dirt and check for loose fasteners. Weekly, remove the thread, looper cover, and pulley cover, and stand the machine in a bath of Fischbein #5-101 cleaning lubricant up to throat-plate level, turning the pulley by hand to clean the moving parts. Never use aggressive cleaning products — they damage the seals. Check motor brushes regularly and replace them once they measure under 1/4 in. (6 mm).

Question 9

Should I add a suspension unit or crepe tape attachment to my Model F?

Accepted Answer

Add the Fischbein 1550 suspension unit for any station closing bags continuously. It holds the 12 lb machine above the work area on a spring-loaded arm, the operator pulls it down to bag-top level to sew, and it retracts to the home position on release — which removes the weight from the operator's arms, reduces fatigue, and prevents the damage caused by setting a handheld unit down on concrete. Add the Fischbein 1650 crepe tape attachment when you want a finished, sifting-resistant closure: it applies two-inch crepe tape over the bag top with a tape holder, folder, and cutter that leaves clean tabs at both edges.

Question 10

Why is my Model F skipping stitches or breaking thread?

Accepted Answer

Skipped stitches on a Model F are almost always a looper-and-needle timing problem — the two must be precisely set relative to each other to maintain proper chaining, and the manual gives the exact adjustment procedures for each. The other frequent causes are a dull or bent needle, incorrect thread tension, and low-grade thread: Fischbein specifies 100% blended polyester synthetic thread, which has uniform diameter and a lubricated high-speed finish, because cotton and cotton-blend threads cause frequent breaks, erratic seams, and bags that split along the stitch line. When reassembling, do not exceed 13.5 in-lbs (1.52 N·m) of torque on specified fasteners.

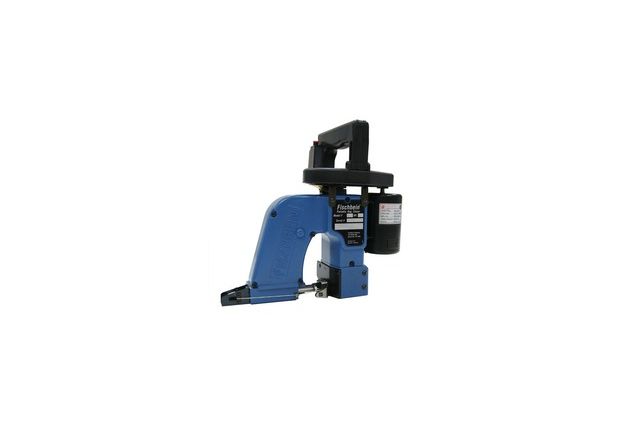

Model F Handheld Bag Sewing Machine*

Details

Machine comes with a 1 year limited part warranty and tech support.
