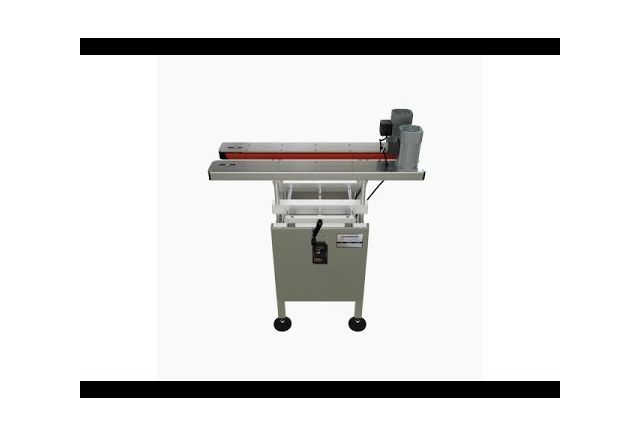

CE-TRA-37B - Bottomless Side Belt Transfer Conveyor
- Machine Dimensions 37" L x 24.5" W x 44" H
- Adjustable Height 35.5 TO 42 INCHES
- Angle Adjustment For Tapered Bottles
- Belt Dimensions 1”H x 36” L x ¾” Thickness
- Min. Bottle Width 1mm Diameter
- Max. Bottle Width 7” Diameter
- Electrical Requirements 115V / 1PH / 60Hz
SKU
CE-TRA-37B
$5,005
In stock
or
(866) 520-3248
The CE-TRA-37B Bottomless Conveyor has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. Designed to access the bottom side of the container for coding expiration dates, lot numbers, etc. The Gripper Belts are independently adjustable and can accommodate containers from 1 mm to 7" in diameter.
- IQ/OQ Certificate
- UL Certified components
- AC BROTHER GEARMOTOR 1/10 HP, 90 RPM, 74 IN-LBS , 230VAC THREE PHASE MOTOR
- Synchronous speed 1800 RPM reduced to 120 RPM
- 304 Stainless Steel and Duro Aluminum Construction
- Teco UFD to control speed up to 300 ft/min
- Easy bottle size adjustment with hand wheel
- Print Head bracket included ( Print Head Dimensions must be submitted by customer for manufacturing )
| Construction |
|
|---|---|
| Control | Variable Speed (Up To 300 Ft/Min) |
| Dimensions | 37" Long X 24" Wide X 34" To 38" Height |
| Belt Dimensions | 36" L x 3/4" W x 1" H |
| Conveyor Adjustable Height | 35.5 TO 42 INCHES (Level Or Angled) |
| Minimum Bottle Size | 1MM |
| Max Bottle Size | 7 INCHES |
| Motor | AC BROTHER GEARMOTOR 1/10 HP, 90 RPM, 74 IN-LBS , 230VAC THREE PHASE MOTOR |
| Power Supply | 115v/1/60 |
| Conveyor Speed | UP TO 80 FT/MIN |
