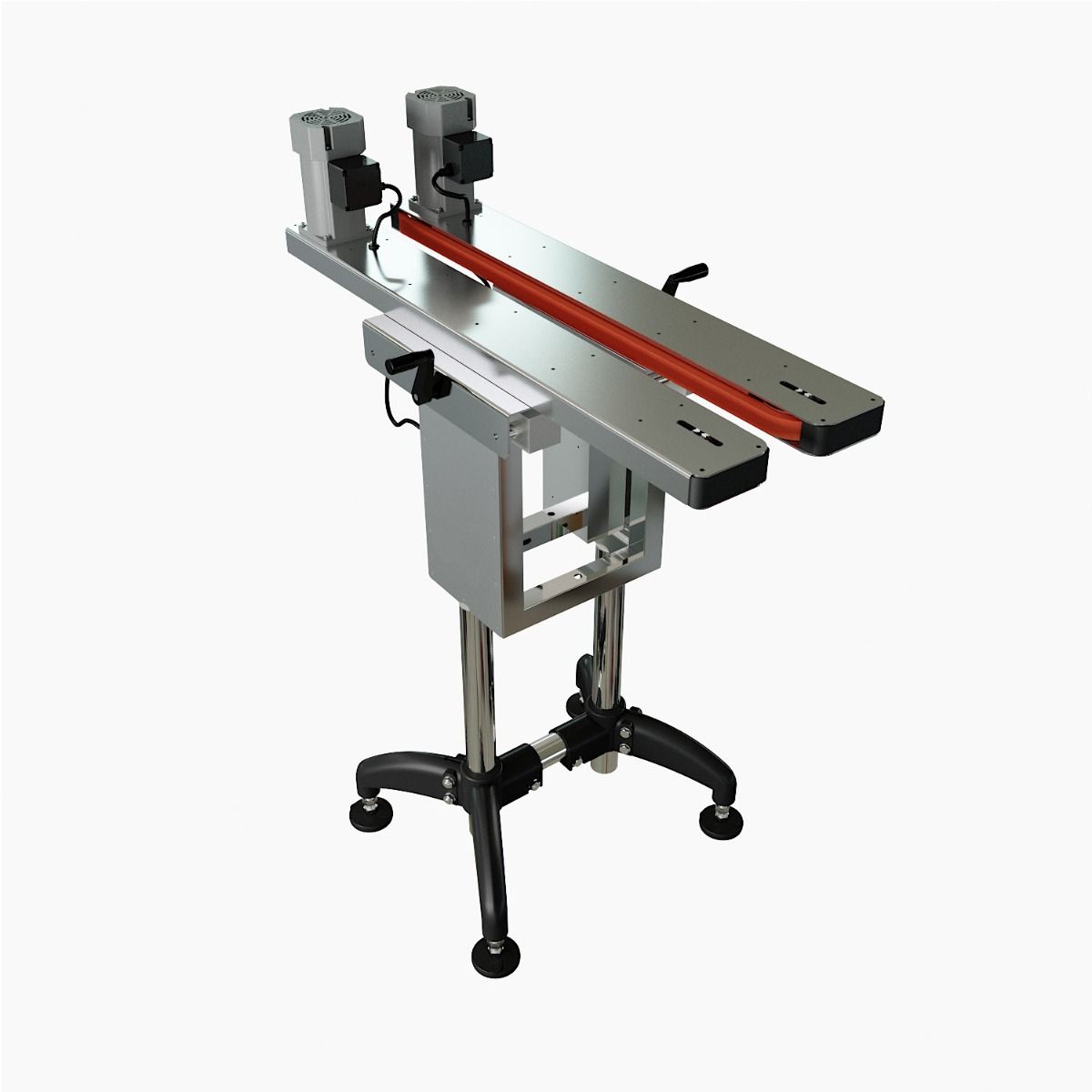

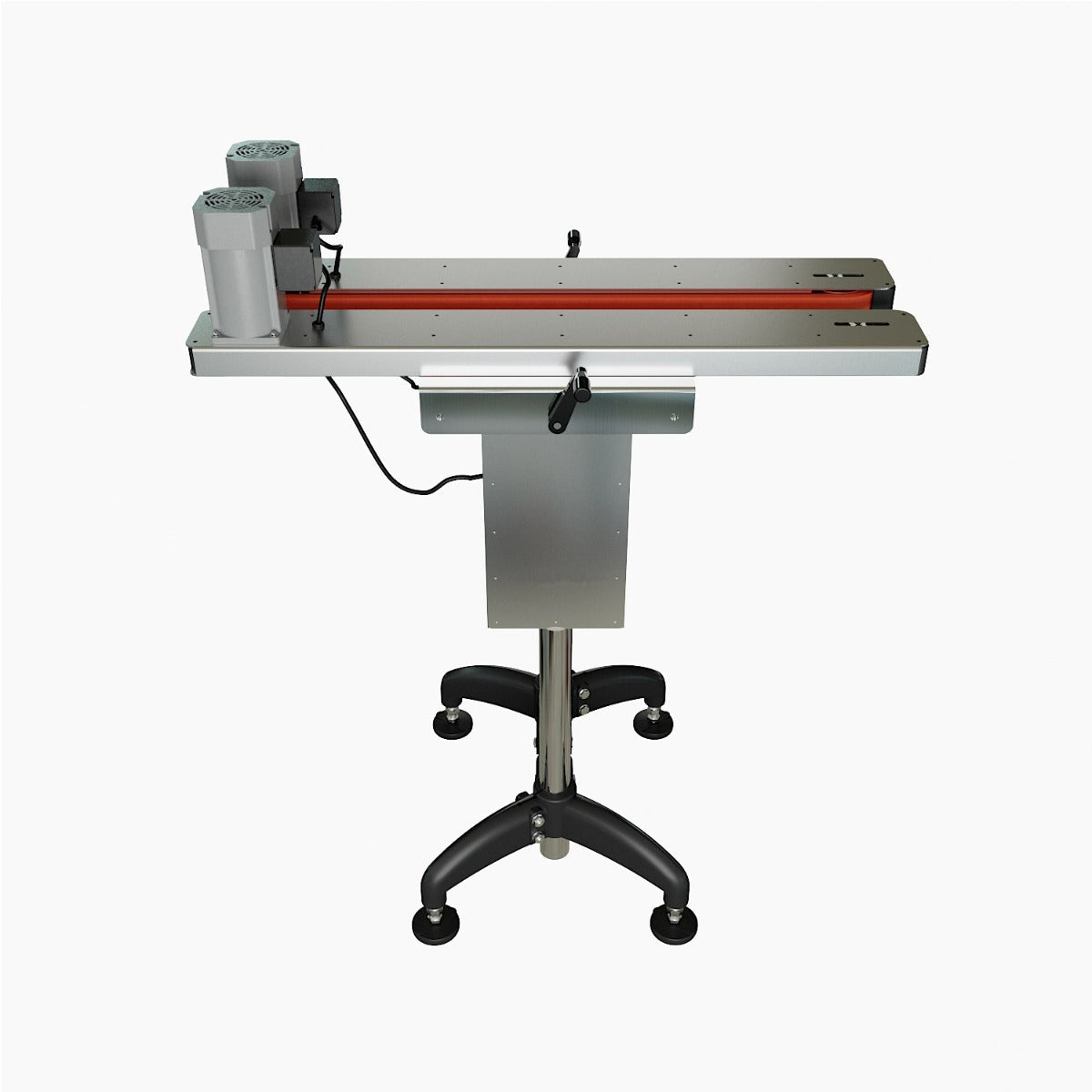

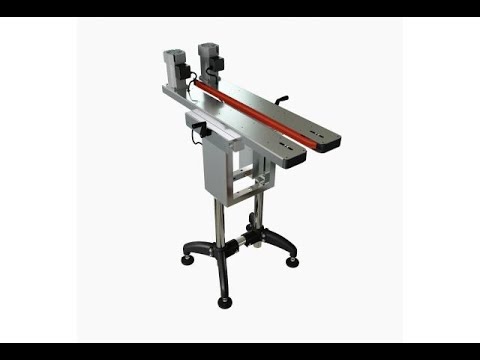

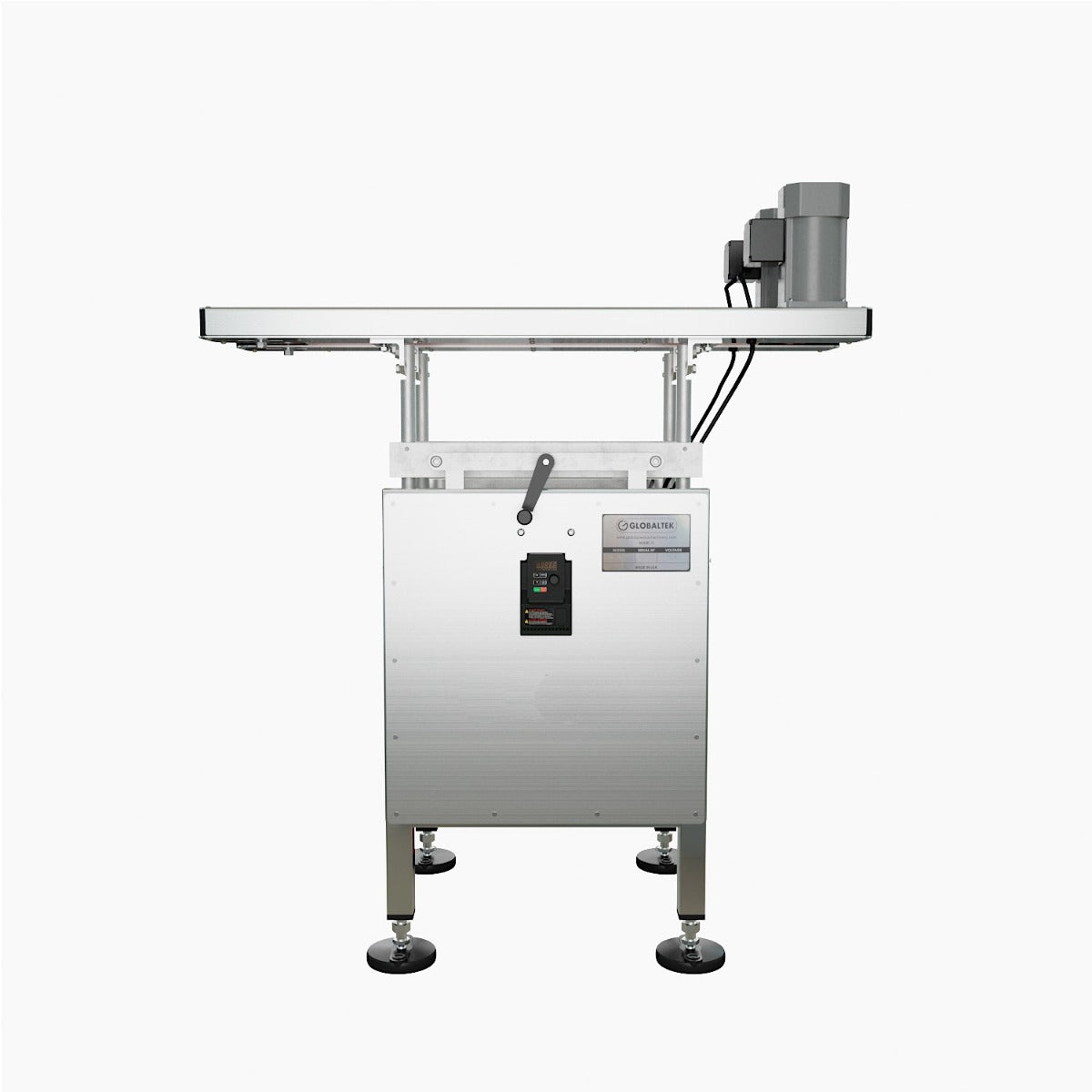

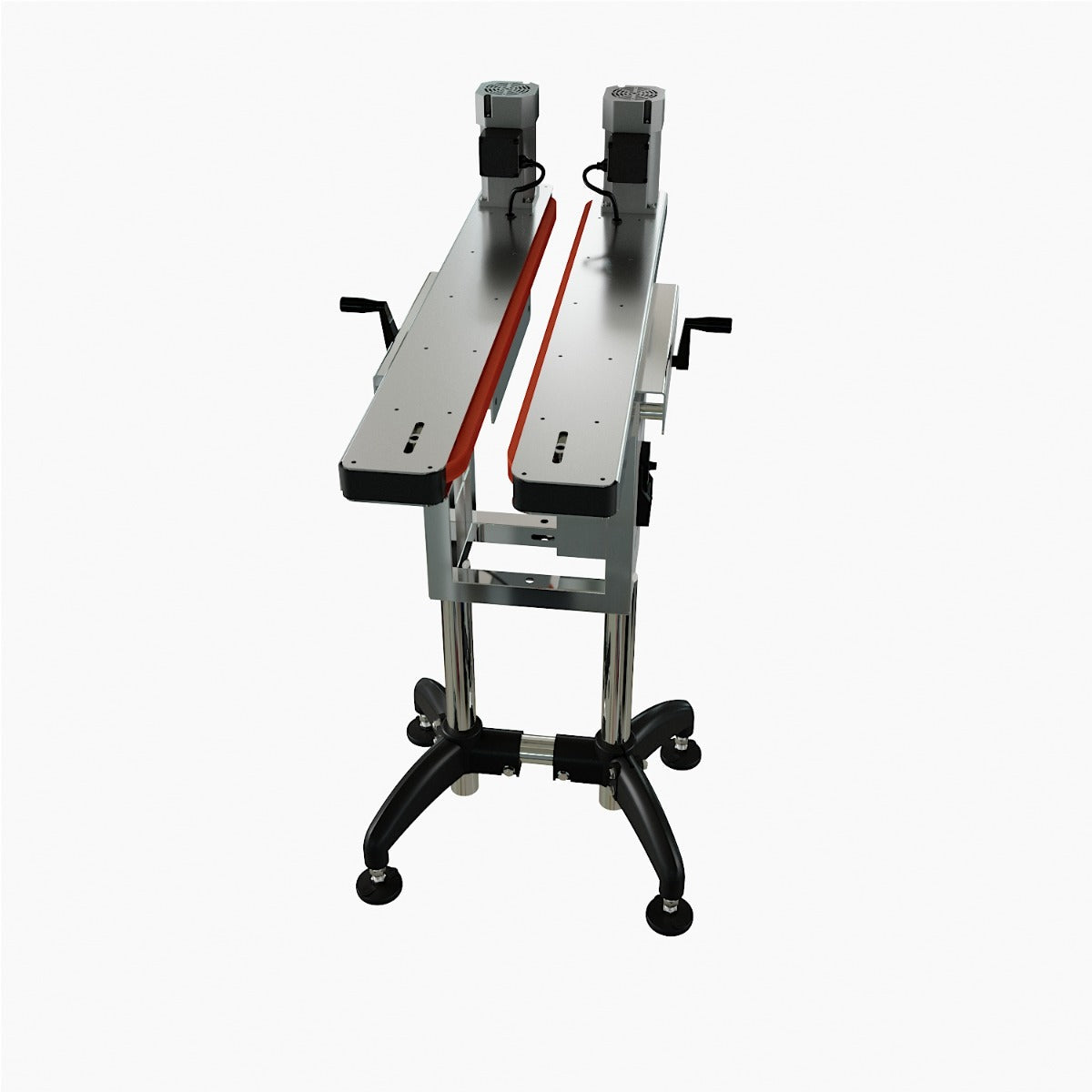

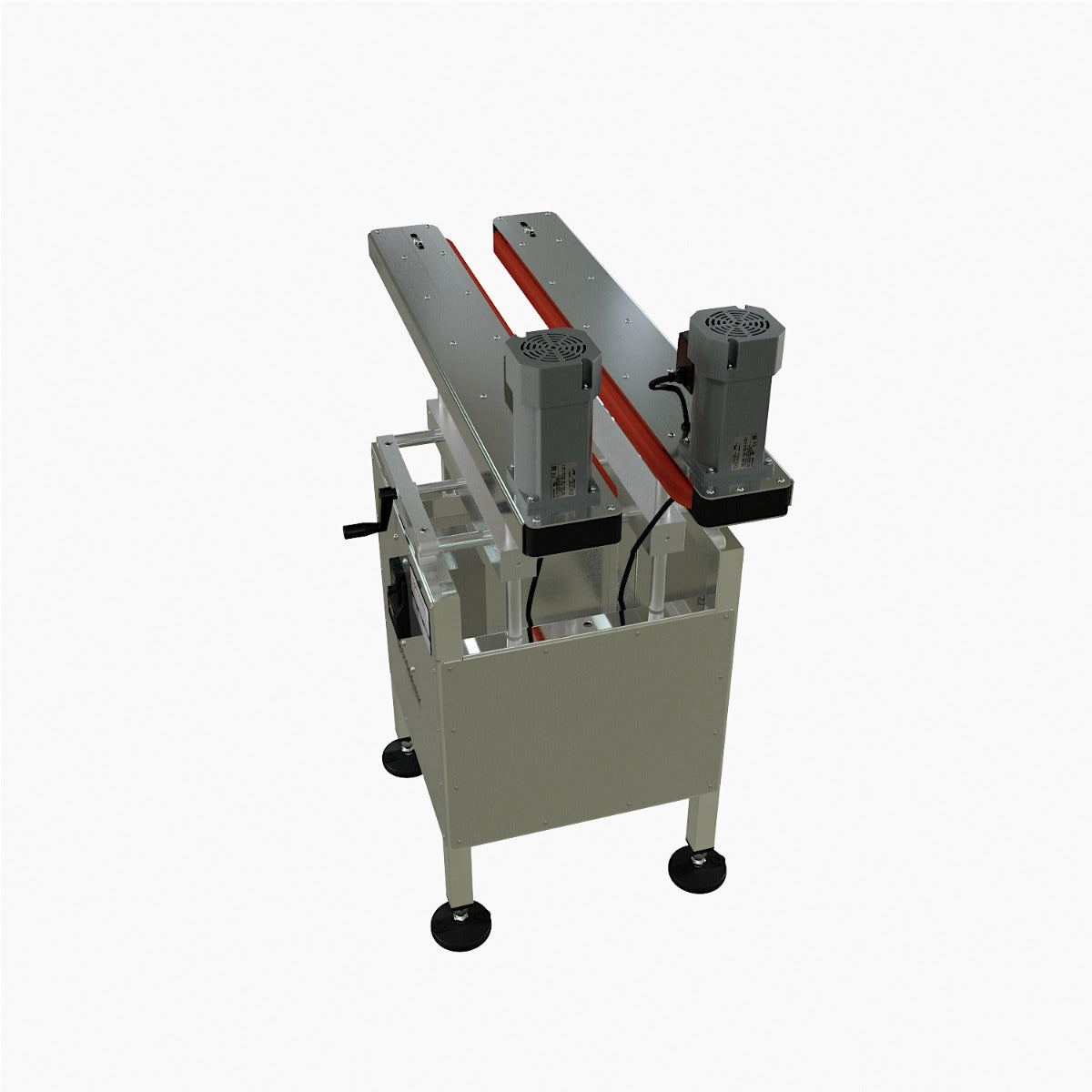

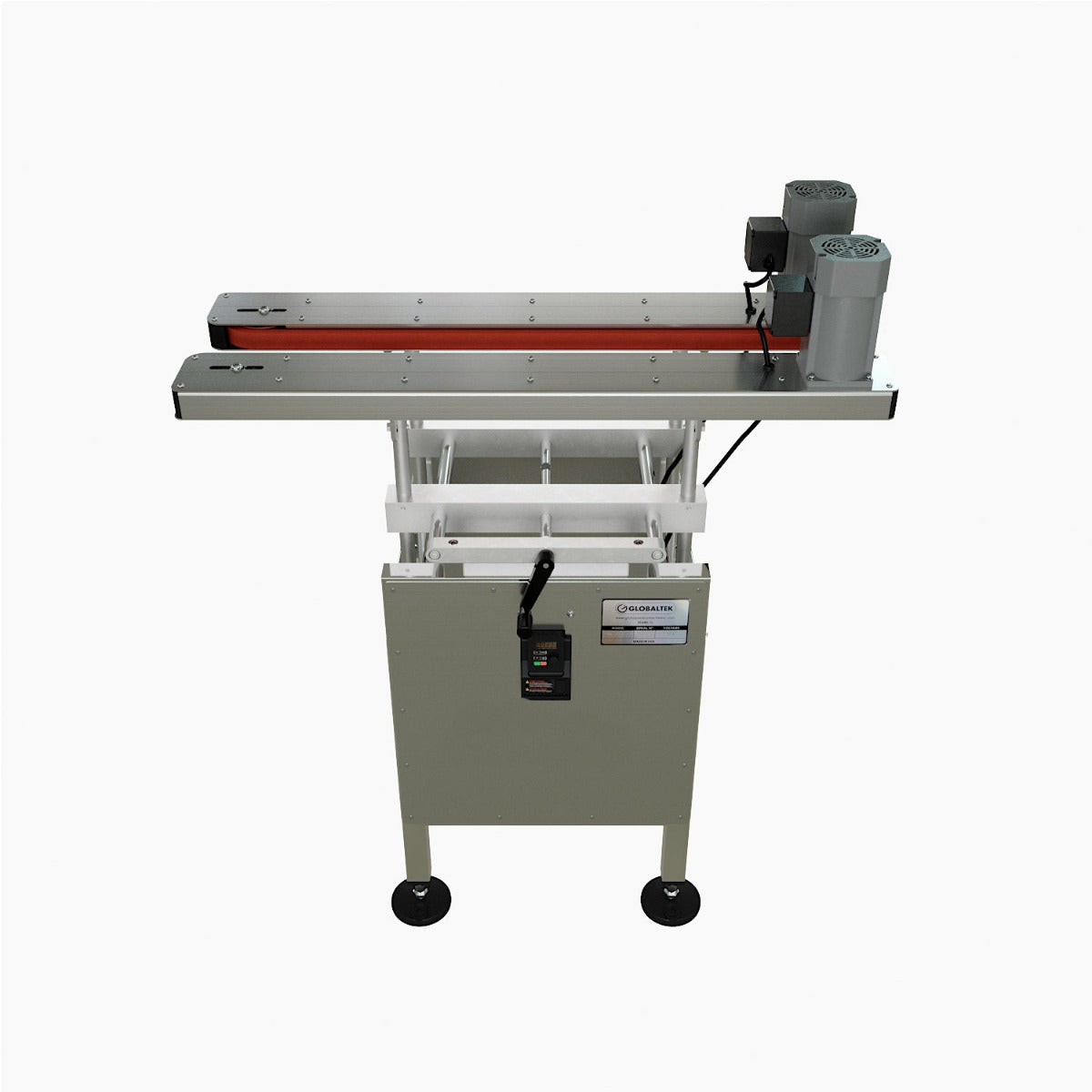

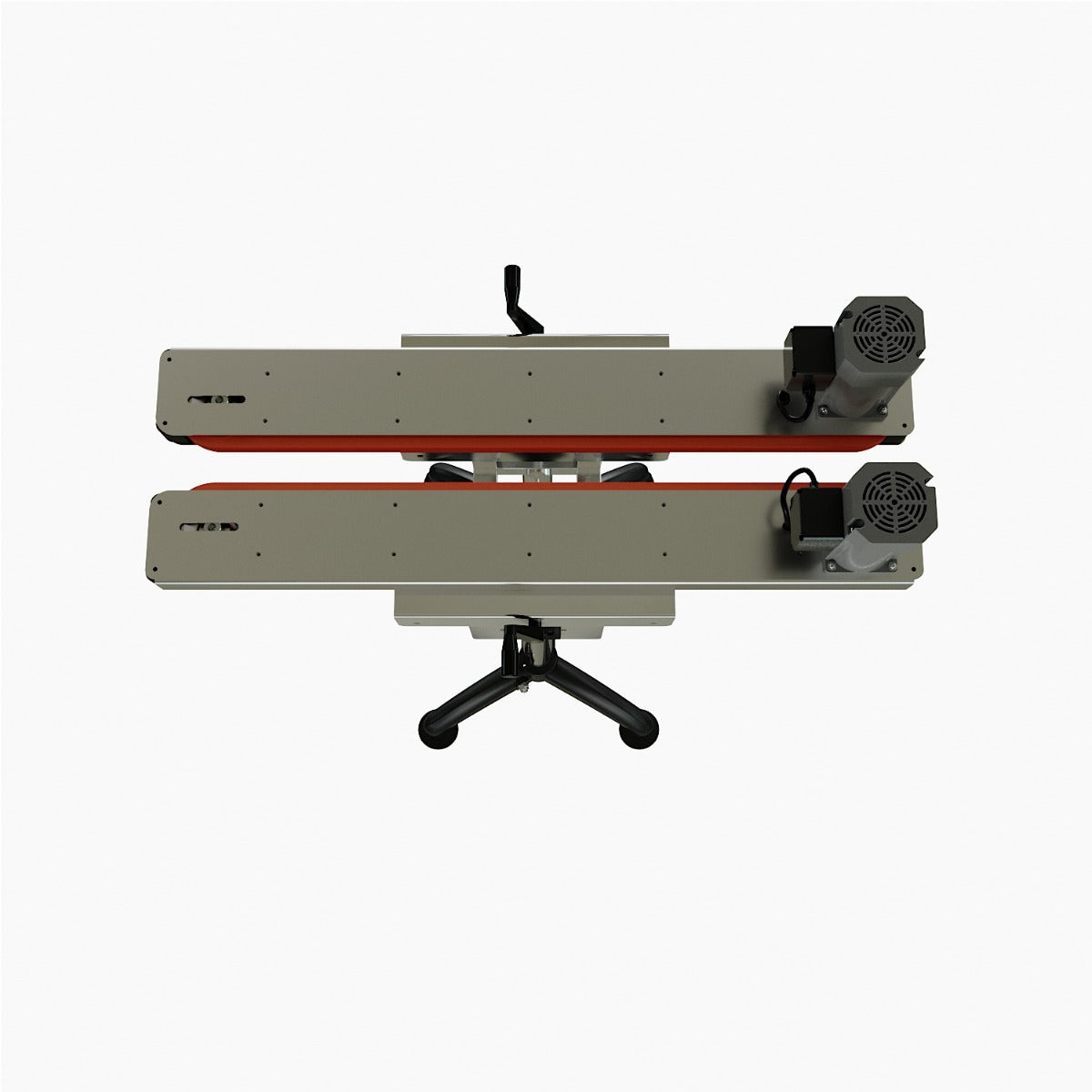

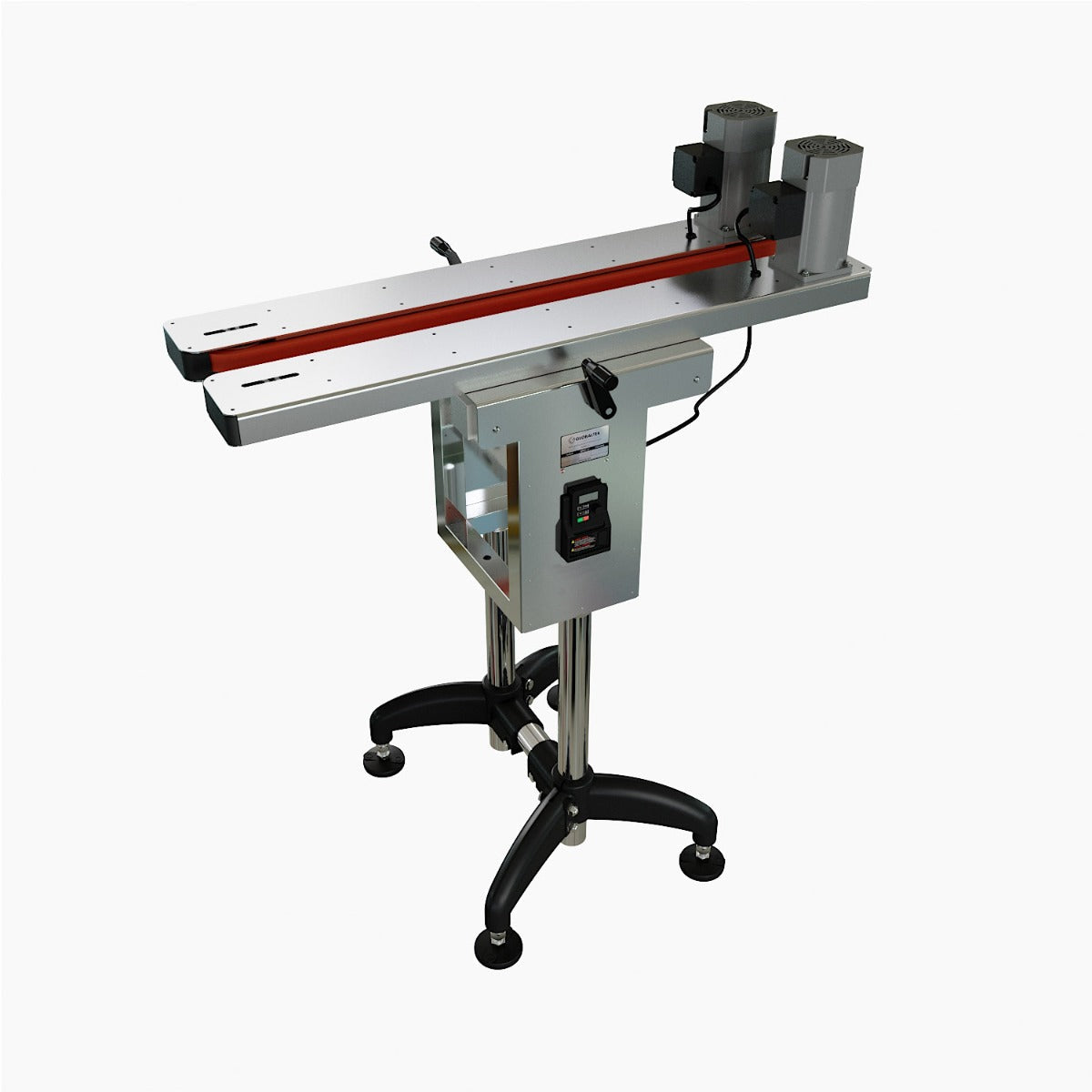

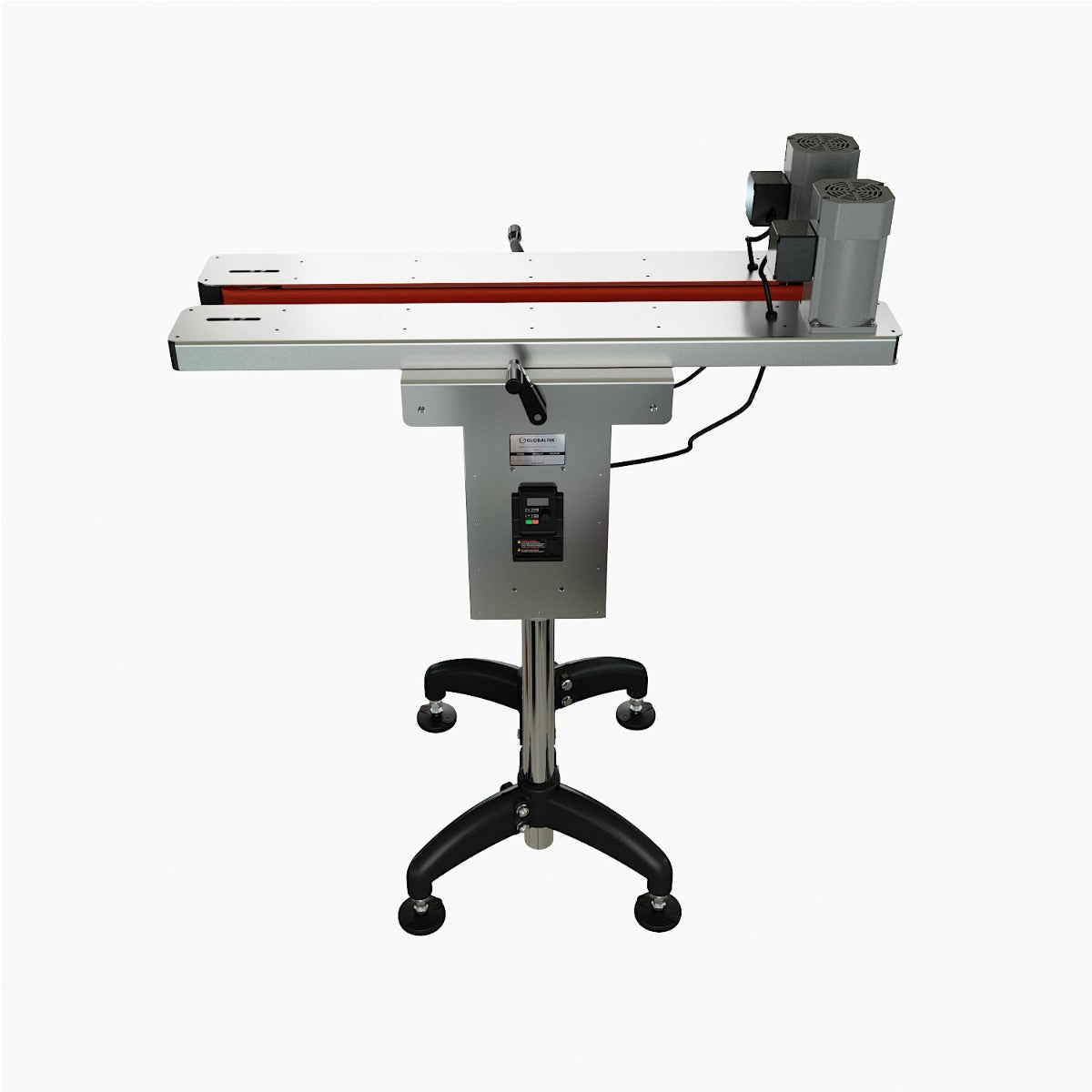

CE-TRA-37 Bottomless Side Belt Transfer Conveyor

The CE-TRA-37S Bottomless Conveyor has variable speeds and is used in moving containers a short distance from one working/transportation conveyor to another. Designed to access the bottom side of the container for coding expiration dates, lot numbers, etc. The Gripper Belts are independently adjustable and can accommodate containers from 1 mm to 10 1/2" in diameter.

• IQ/OQ Certificate
• UL Certified components
• AC BROTHER GEARMOTOR 1/10 HP, 90 RPM, 74 IN-LBS , 230VAC THREE PHASE MOTOR
• Synchronous speed 1800 RPM reduced to 120 RPM
• 304 Stainless Steel and Duro Aluminum Construction
• Teco UFD to control speed up to 300 ft/min
• Easy bottle size adjustment with hand wheel
• Print Head bracket included ( Print Head Dimensions must be submitted by customer for manufacturing )

Construction: STAINLESS STEEL AND DURO ALUMINUM• UL CERTIFIED COMPONENTS

Dimensions: 37" L x 27" W x 48" H

Belt Dimensions: 36" L x 3/4" W x 1" H

Conveyor Adjustable Height: 36 TO 42 INCHES

Minimum Bottle Size: 1MM

Max Bottle Size: 7 INCHES

Motor: AC BROTHER GEARMOTOR 1/10 HP, 90 RPM, 74 IN-LBS , 230VAC THREE PHASE MOTOR

Power Supply: 115V

Conveyor Speed: UP TO 80 FT/MIN
