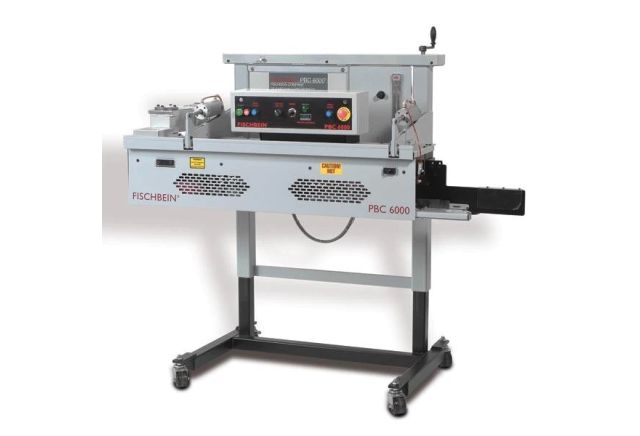

Fischbein PBC 6000 Pinch Paper Bag Sealer
PBC 6000 is a hot air, heat sealing, pinch bag closer for sealing multi-wall paper bags.
SKU
PBC 6000
$34,290
In stock
or
(866) 520-3248
The PCB 6000 is a pinch bag sealer that uses hot air to activate a pre-glued flap on multi-walled paper bags that is rolled over and pressed closed. The PBC 6000 is used on semi-automated or fully automated bag closing lines to seal 18-110 lb. flat or gusseted paper bags. Able to handle bags 12”-20” long and up to 56” wide makes the PCB 6000 is perfect for human and pet foods, bakery mixes, dry chemicals, fertilizers, pesticides, and similar products.
STANDARD FEATURES:
- Quality engineered to provide a sift-resistant closure
- Speeds up to 85 feet-per-minute1
- Accommodates a full range of pre-glued, multi-wall, pinch-style paper bags
- Advanced features ensure bag closures of unmatched reliability
- High-speed, maintenance-free, direct-drive system is more efficient and reliable
- Hot-air distribution manifold uses dual-finned elements for improved heat delivery to the bag
- Non-stick folder blade closes bags gradually
- Right to left bag feed
- Mobile height-adjustable frame allows for safe & fast maintenance
- Safe and user-friendly low-voltage control panel
- 8" infeed
- Thermal overload protection
- 73"L x 35" W (1854 mm L x 889 cm W)
- 710 lbs (322 kg) net weight
- Accommodates bags 12" to 20" long, up to 56" wide
- 18 lbs to 110 lbs filled bag weight
- Patented breakaway feature for easy maintenance
- Digital temperature control and readout
- Over-temperature sensor with auto shutdown
- Bag jam detector and safety on/off switch
- Digital control and readouts
- Variable AC-VFD speed control
- 6 month factory warranty
Output | 220/440 VAC, 3 Ph, 60Hz |
---|---|
Air Supply | 10-15 CFM @90 PSI |
