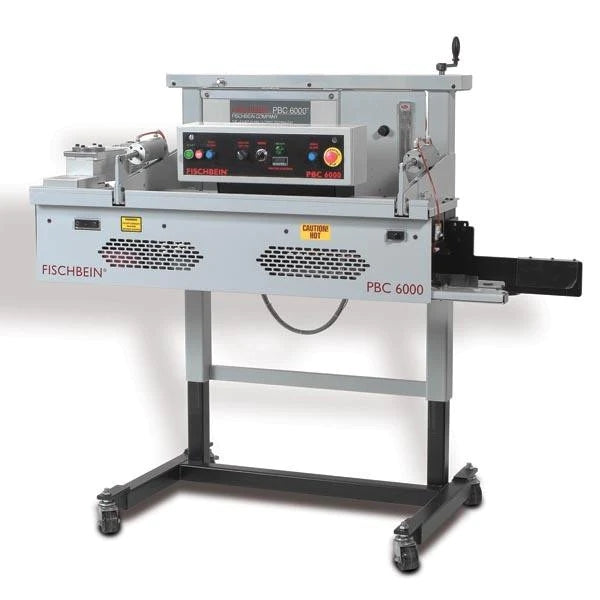

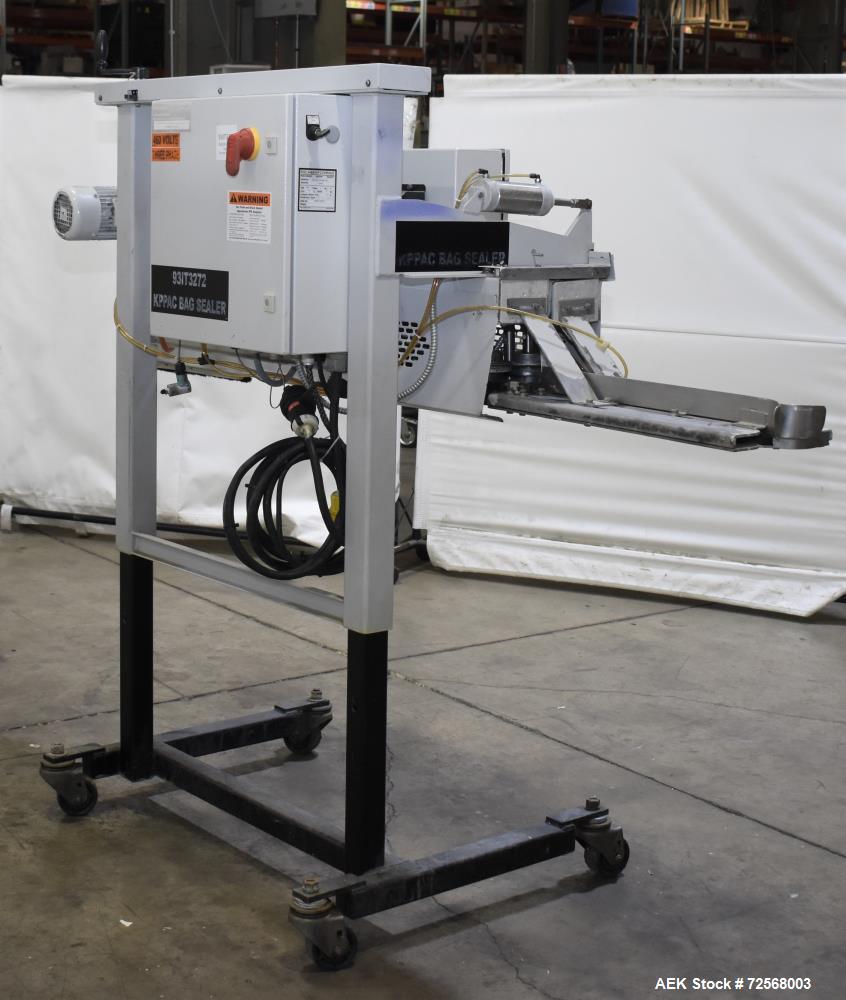

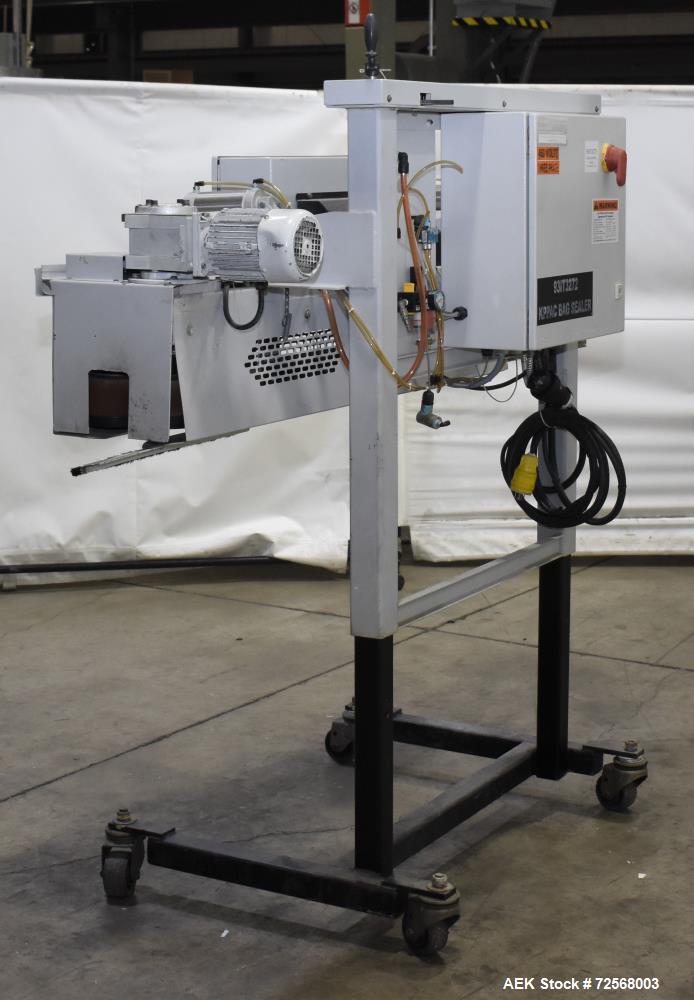

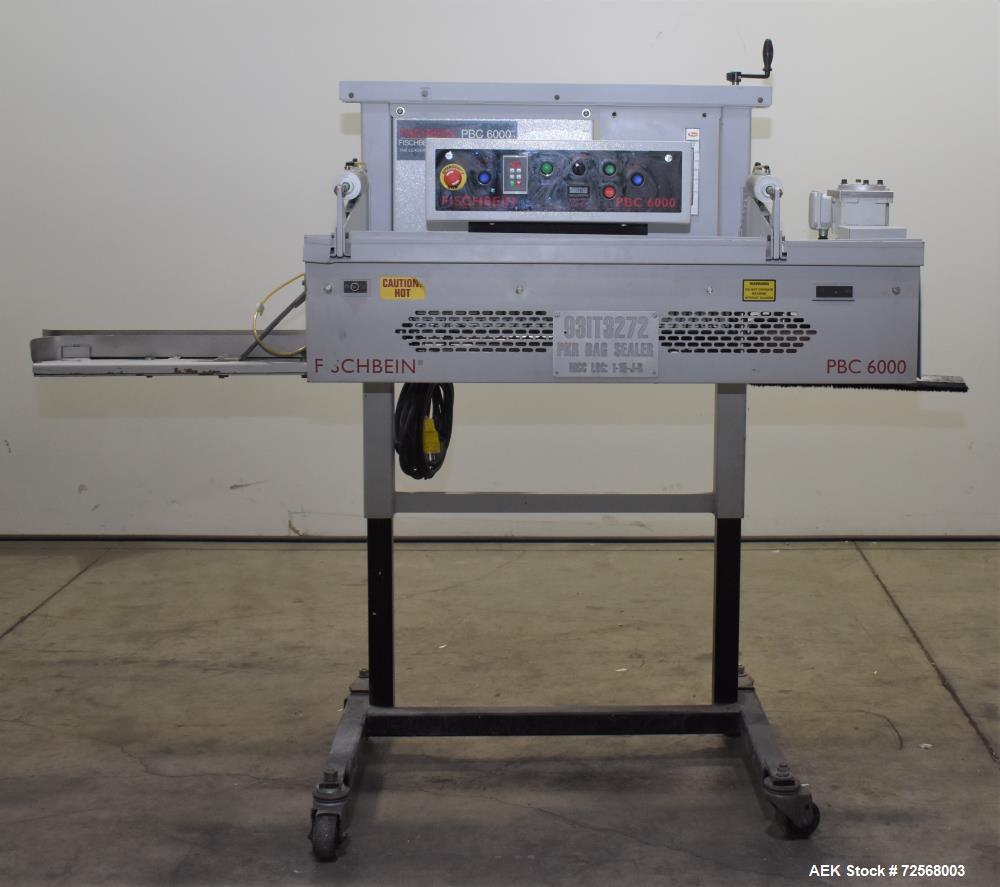

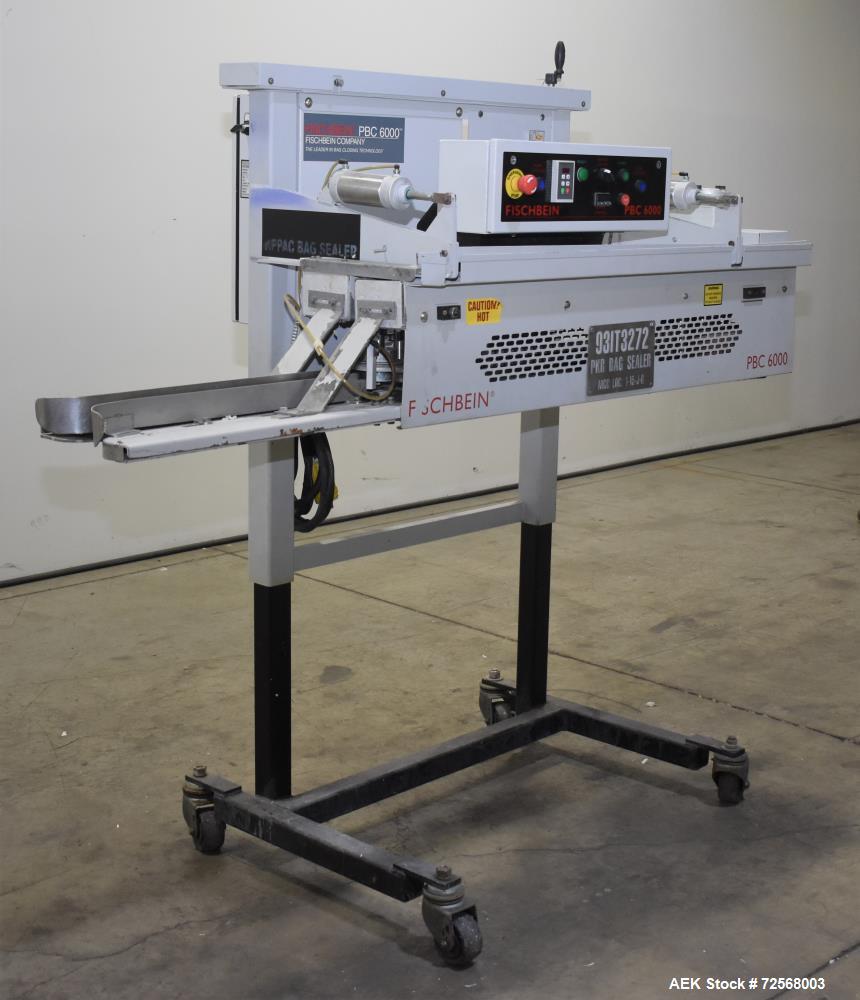

PBC 6000 Pinch Paper Bag Closer

The PBC 6000 is an industrial hot-air pinch paper bag closer for production lines that close pre-glued, multi-wall paper bags. It creates the crease, folds the adhesive-coated flap, heats the adhesive, and compresses the finished fold to help produce a strong, sift-resistant closure.

Built for production bag closing

The PBC 6000 is designed to integrate with manual or automated infeed systems and conveyor lines. Its carry-through belts guide the bag top through the creaser, folder, hot-air manifold, and compression section. The adjustable frame, height adjustment, casters, variable speed control, digital temperature control, and bag counter support repeatable production setup.

• Hot air activates the adhesive on pre-glued paper-bag flaps.
• Creaser wheels form the fold line before the flap enters the folder.
• Compression belts press the heated flap against the bag surface for bonding.
• An air scrubber helps clear dust and debris from the seal area before bonding.
• A front breakaway swing channel provides access for jam clearing, cleaning, and maintenance.
• Bag-jam detection opens the front channel and shuts off the heaters when a jam is detected.
• An over-temperature sensor and airflow protection help protect the heater system.

Common applications

Use the PBC 6000 for pre-glued multi-wall paper bags used for flour, pet food, agricultural seed, animal feed, feed additives, lawn fertilizer, absorptive materials, industrial and agricultural chemicals, powdered dairy products, bakery mixes, and similar dry products.

Specifications

• Machine type: Hot-air pinch paper bag closer
• Bag construction: Pre-glued, multi-wall paper bags
• Production speed: 30–75 feet per minute standard range; higher speeds are application-dependent and available on request
• Bag size: Variable width; up to 56 inches (1,422 mm) in length
• Free top: 6 inches (153 mm) for standard folds; wider folds may require more
• Fold options: Standard 1-3/4-inch fold, with an optional 2-3/8-inch fold configuration
• Electrical configurations: 230 VAC, 1 or 3 phase, 60 Hz, or 460 VAC, 3 phase, 60 Hz, depending on configuration
• Compressed air: Clean, dry, non-lubricated air at 90 PSI (6.2 bar) and approximately 420 SCFH (11.9 SCMH)
• Controls: Digital temperature control and readout, variable AC-VFD speed control, bag counter, emergency stop, and two-hand close buttons
• Weight: Approximately 795 lb (360.6 kg) for the standard machine; approximately 855 lb (387.8 kg) palletized
• Feed direction: Right-to-left standard configuration, with other infeed configurations available

Important setup note

Final speed and temperature depend on the bag construction, adhesive, conveyor speed, room conditions, and bag temperature. The manual recommends testing sample bags and adjusting temperature and compression for the application. Electrical installation, compressed-air connection, operation, and maintenance should be performed by trained personnel using the supplied instruction manual and applicable local codes.
