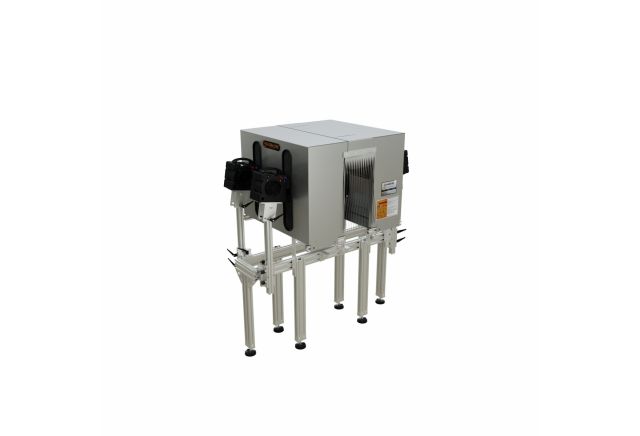

Hot Air Heat Tunnel For Heat-Shrink Sleeves & Neck Bands
Our heat tunnel is precisely designed to ‘heat shrink’ shrinkable film wrapped around your package and it is also suitable to shrink a shrinkable neck band or body sleeve around a container.
or

(866) 520-3248
Our Hot Air Heat Tunnel For Heat-Shrink Sleeves & Neck Bands is essential for ensuring that packaging is done efficiently and effectively, especially in industries like pharmaceuticals and food/beverage. Here’s a quick overview of some key features and benefits of our heat tunnel:
Key Features:
- High-Quality Construction: Made from stainless steel, ensuring durability and resistance to rust.
- Versatile Design: Suitable for various applications, including:
- Shrinkable film wrapping
- Shrinkable neck bands
- Body sleeves around containers
- Efficient Heating:
- Equipped with four Hapco Bak hot air blowers with 360° adjustable nozzles for optimal heat distribution.
- Double wall heating chamber with tight-seal brush bristles and a silicone-coated fiberglass curtain for consistent shrink rates.
- Temperature Control: Capable of regulating temperatures between 0° and 392° F, allowing for flexibility based on the product requirements.
Benefits:
- Consistent Results: The design ensures an even shrink rate, which is crucial for maintaining product integrity.
- Safety: The double wall construction prevents overheating of the exterior surface, enhancing safety during operation.
- Compatibility: Works seamlessly with a compatible conveyor system, ensuring smooth operation.
This heat tunnel is a great asset for any production line! If you have any specific questions about its operation, maintenance, or how it compares to other models, feel free to ask!
Construction | Variable temperature and air-flow settings. Mounts to any existing conveyor with a stainless steel belt or high temperature belt. *Conveyor not included. Suitable for shrinkage of sleeve labels made of different materials and thickness. |
---|---|
Film Type | thickness (from 35 to 60 microns) |
Maximum Packaging Size | containers up to 10” diameter x 19” tall |
Motor | Four Hapco Bak hot air blowers (230V, 3700W) with 360° wide slot adjustable nozzles |
Power Supply | 230V single phase 60 Hz |
Dimensions | 36” x 26” x 22” |
