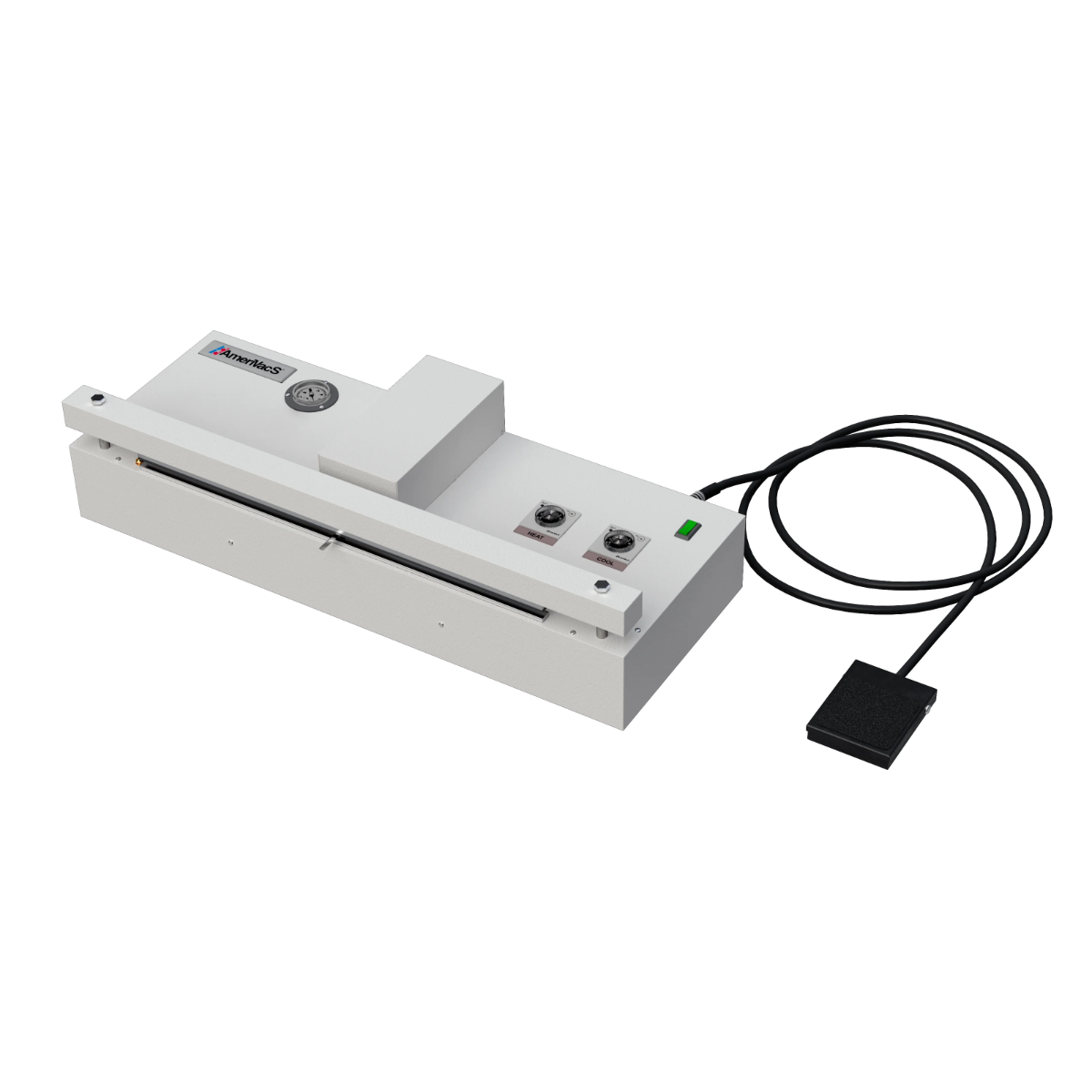

AVS-Series Retractable Nozzle Vacuum Sealer

Name: AVS-Series Retractable Nozzle Vacuum Sealer
Brand: AmeriVacs
SKU: CE-AVS20R
Price: 2525.00 USD
Availability: InStock

Foot pedal-activated vacuum packaging offered in our most popular seal length. The choice sealer for the widest range of clientele, from medical and electronics device manufacturers to food industry retailers to pharmaceutical and aerospace corporations.

SKU#: CE-AVS20R

$2,525.00

or Request a Quote

(866) 520-3248

Details

The CE-AVS20R is powered by a compressed air-driven vacuum pump, eliminating any concern regarding noise, vibration, magnetic fields, or heat generation. With streamlined design and high-quality components, the CE-AVS20R is defined by retractable nozzle vacuum sealing functionality. At the push of a foot pedal the AVS-20 draws a vacuum around your products; its automated stainless-steel nozzle then subsequently retracts before its 1/4” wide-sealing element delivers a leak proof seal to any kind and thickness of flexible bags including clear, foil (Mylar), mil spec and ESD bags. Clean room compatible with precision components. Delivers clean wrinkle-free seals without any bag distortion.

Specifications

Chamber Size (in): N/A

Seal Length (in): 20

Seal width (in): 1/4

Vacuum Flow (CFM): 6

Max Vacuum Pressure (inHg): 27

Air Requirements (CFM): Single - 6 CFM @ 110 PSI, Dual - 12 CFM @110 PSI

Amps @120 Volts A.C.: 8

Unit Size (in)*: 28L x 10W X 7H

Unit Weight (lbs)*: 34

Max Temperature**: 500F

Ship Weight (lbs)*: 39

Ship Dims (in)*: 37L X 18W X 16H

Downloads

AVS-Series Retractable Nozzle Vacuum Sealer Brochure (Size: 215.0 KB)

AVS-Series Retractable Nozzle Vacuum Sealer Brochure
AVS-Series Retractable Nozzle Vacuum Sealer - Operation Manual (Size: 1.3 MB)

AVS-Series Retractable Nozzle Vacuum Sealer - Operation Manual
