CE-210 Conveyor Heat Shrink Tunnel Machine*

Machine comes with a 1 year limited part warranty and tech support.

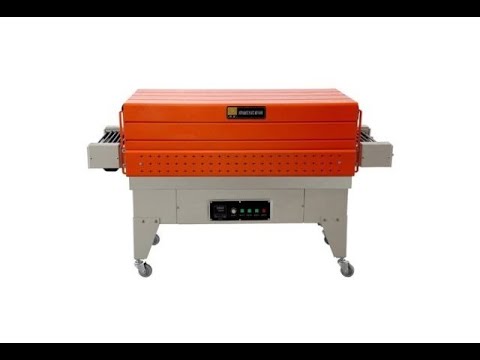

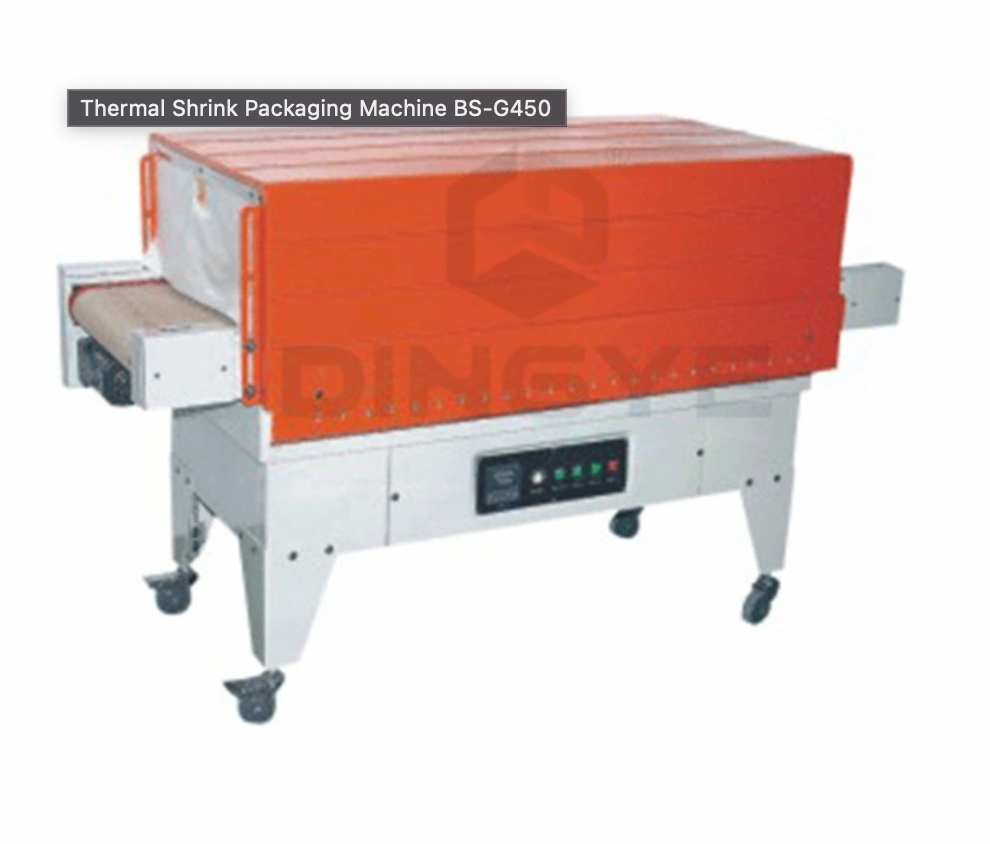

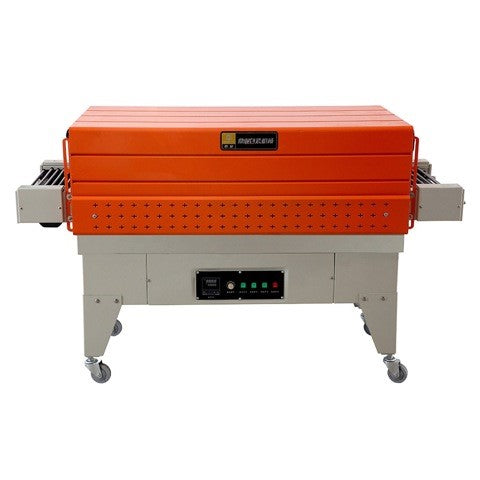

CE-210 Conveyor Heat Shrink Tunnel

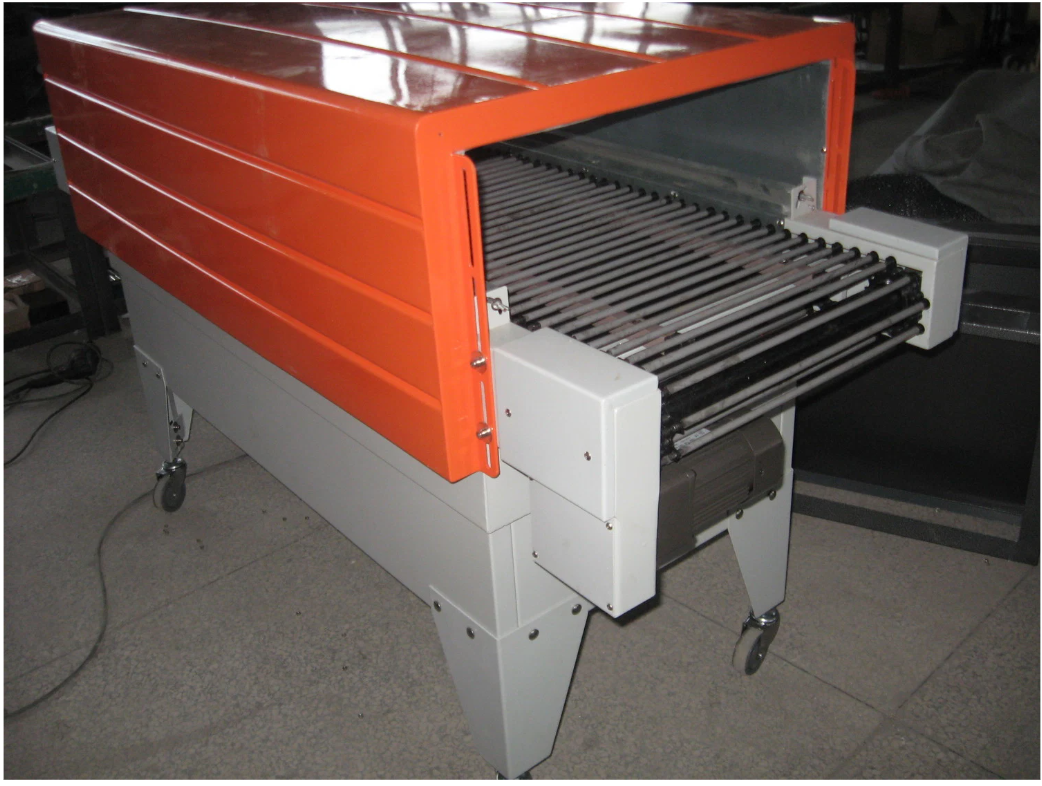

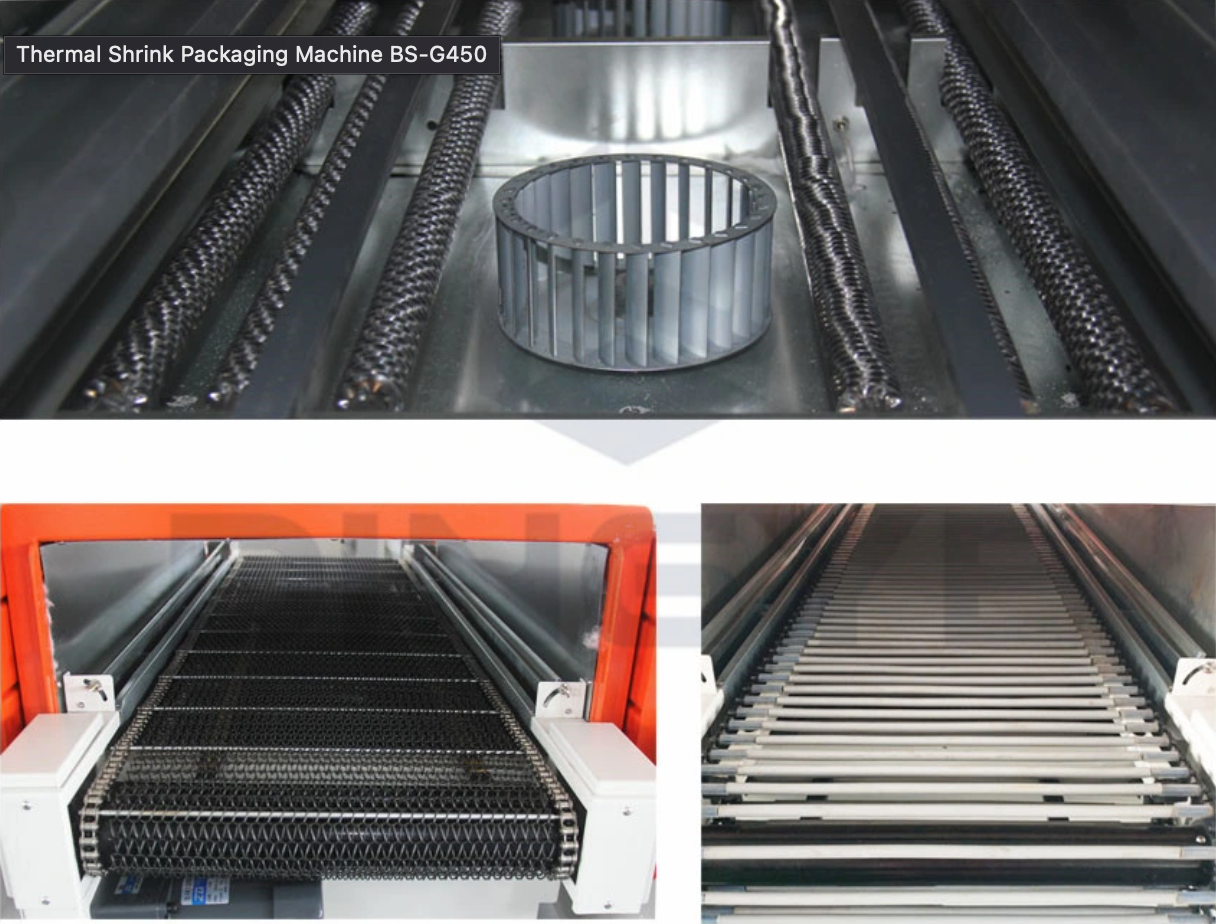

The CE-210 conveyor heat shrink tunnel provides a long heated chamber for shrink wrapping small products, boxes, containers, and bundled goods. Its 47-inch tunnel gives film time to conform around each package. Six internal heat bars provide consistent heat, while adjustable side vents direct airflow toward your product.

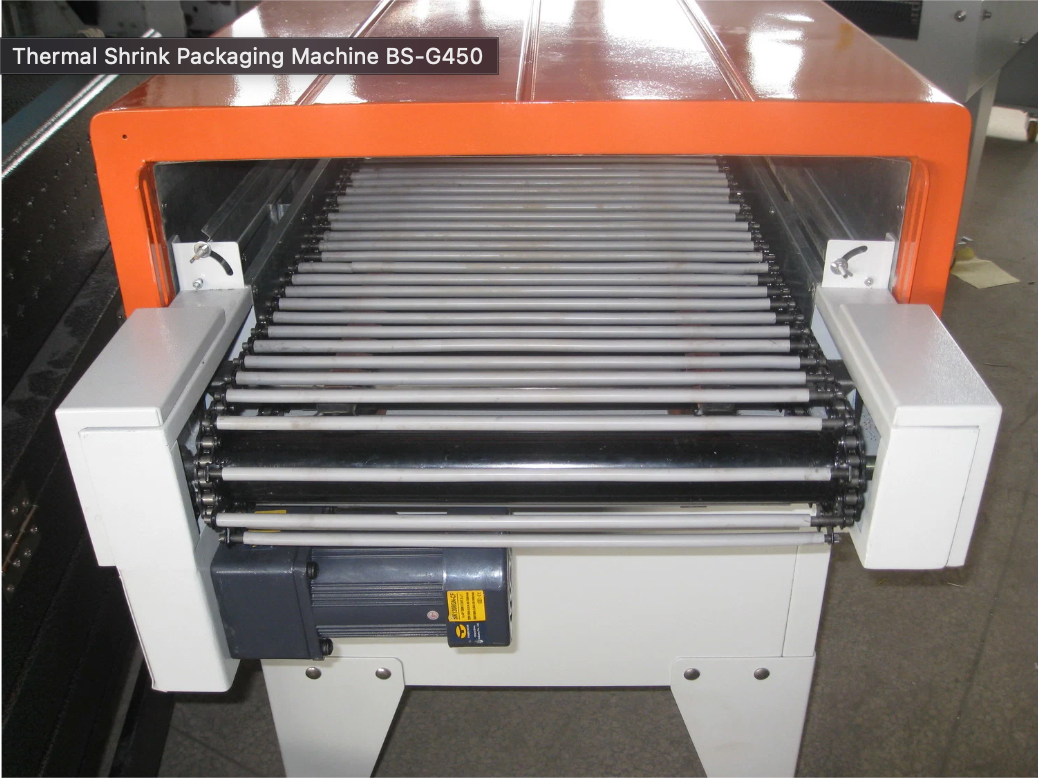

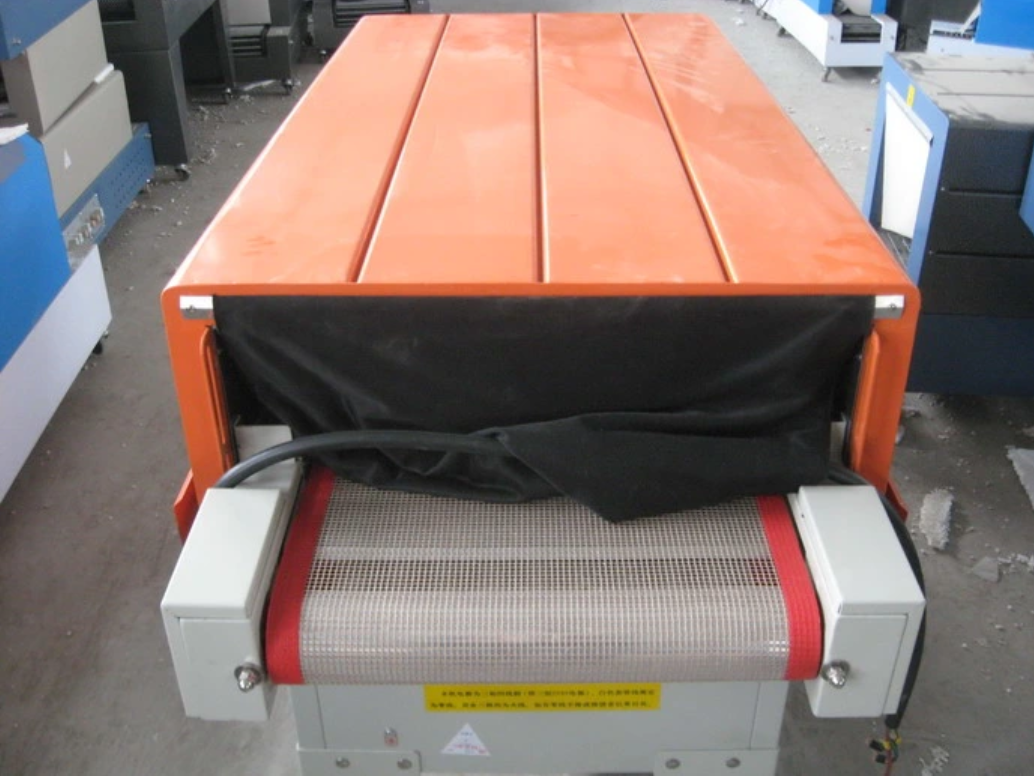

Adjust the tunnel height from approximately 4 to 13.75 inches to suit different package profiles. Variable conveyor speed and a heat-resistant Teflon belt support smooth product handling and repeat packaging work with POF, PVC, PP, and POP shrink films.

Specifications

• Electrical supply: 220 V, 60 Hz, single-phase.
• Amperage: 41 amps.
• Tunnel dimensions: 47 × 17.717 × 13.75 in (brochure metric listing: 1,200 × 450 × 350 mm).
• Adjustable tunnel height: approximately 4–13.75 in.
• Overall machine dimensions: 63 × 23 × 51.2 in.
• Maximum conveyor load: 11 lb.
• Conveyor speed: 0–10 m/min.
• Compatible films: POF, PVC, PP, and POP.

Applications and installation

Use the CE-210 after a shrink-film sealing or wrapping process for products ranging from shrink sleeves on LED light strips to larger boxes and containers. The tunnel shrinks film but does not wrap or seal it. Check package clearance before production.

Have a licensed electrician confirm that the supply matches the machine data plate and installation requirements. Proper grounding is required. Do not set the tunnel above 200 °C, and follow the operation manual's safety and cooldown procedures.
