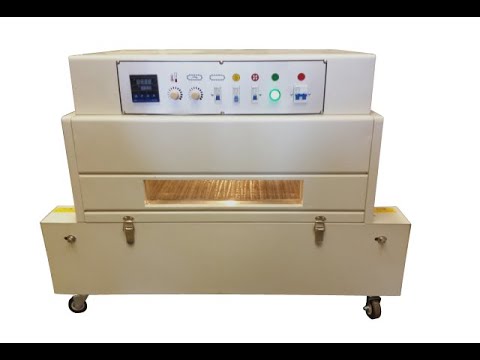

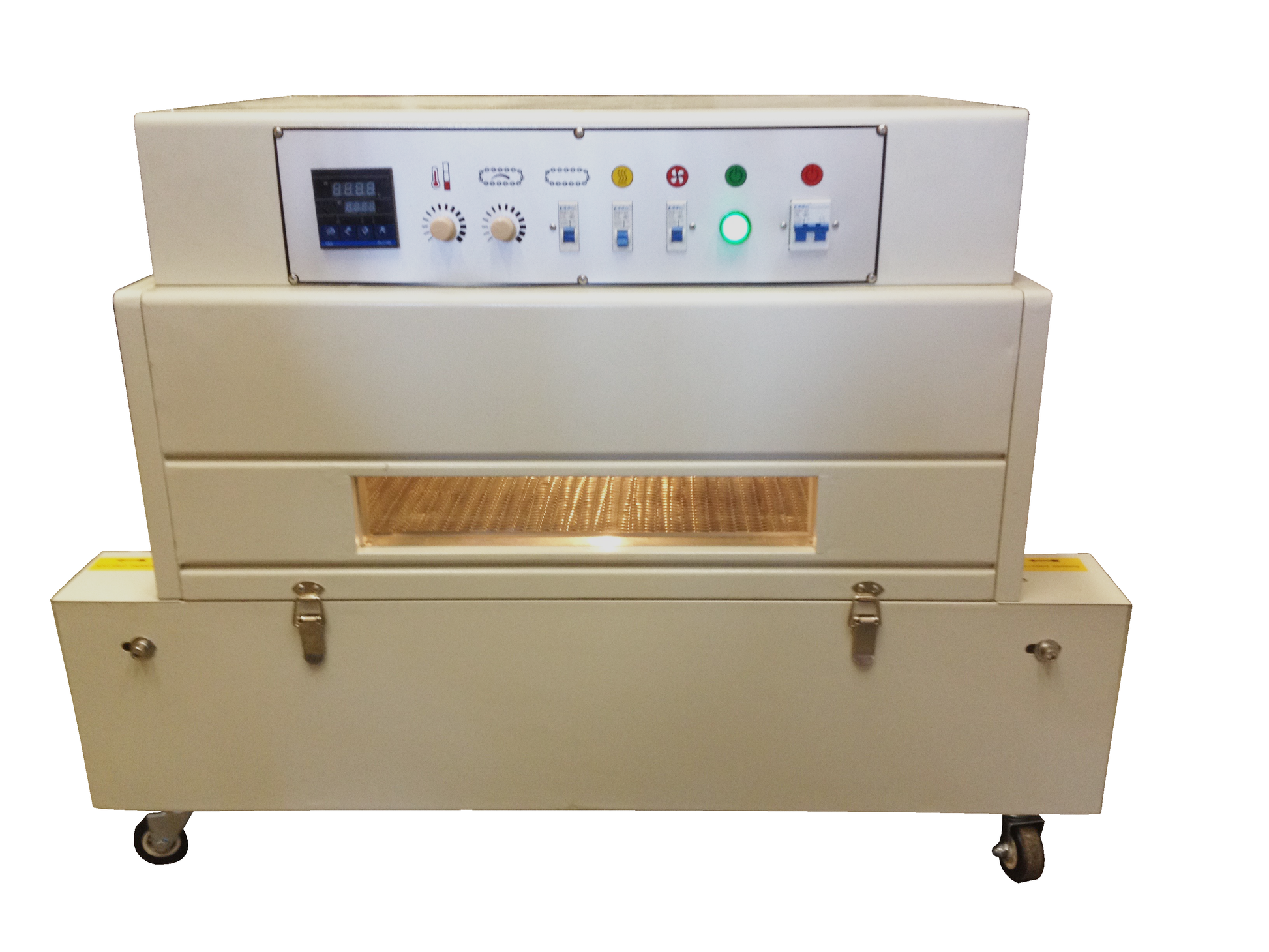

CE-225 Mesh Conveyor Heat Tunnel*

CE-225 Mesh Conveyor Heat Shrink Tunnel

The CE-225 Mesh Conveyor Heat Tunnel is a high-throughput, economical shrink packaging solution built for production environments that demand consistent, professional results. Products are wrapped in shrink film and conveyed through the heated tunnel, where precisely controlled heat conforms the film tightly to the product's shape — creating a transparent, tamper-evident package that protects against moisture, dust, and surface damage.

With a wide 15.75" conveyor opening and variable speed control up to 32.8 ft/min, the CE-225 handles a broad range of product sizes and packaging volumes. The mesh belt design promotes even heat distribution for uniform shrink results across every package.

Key Benefits

• Variable speed conveyor (0–10 m/min / 0–32.8 ft/min) for flexible throughput control

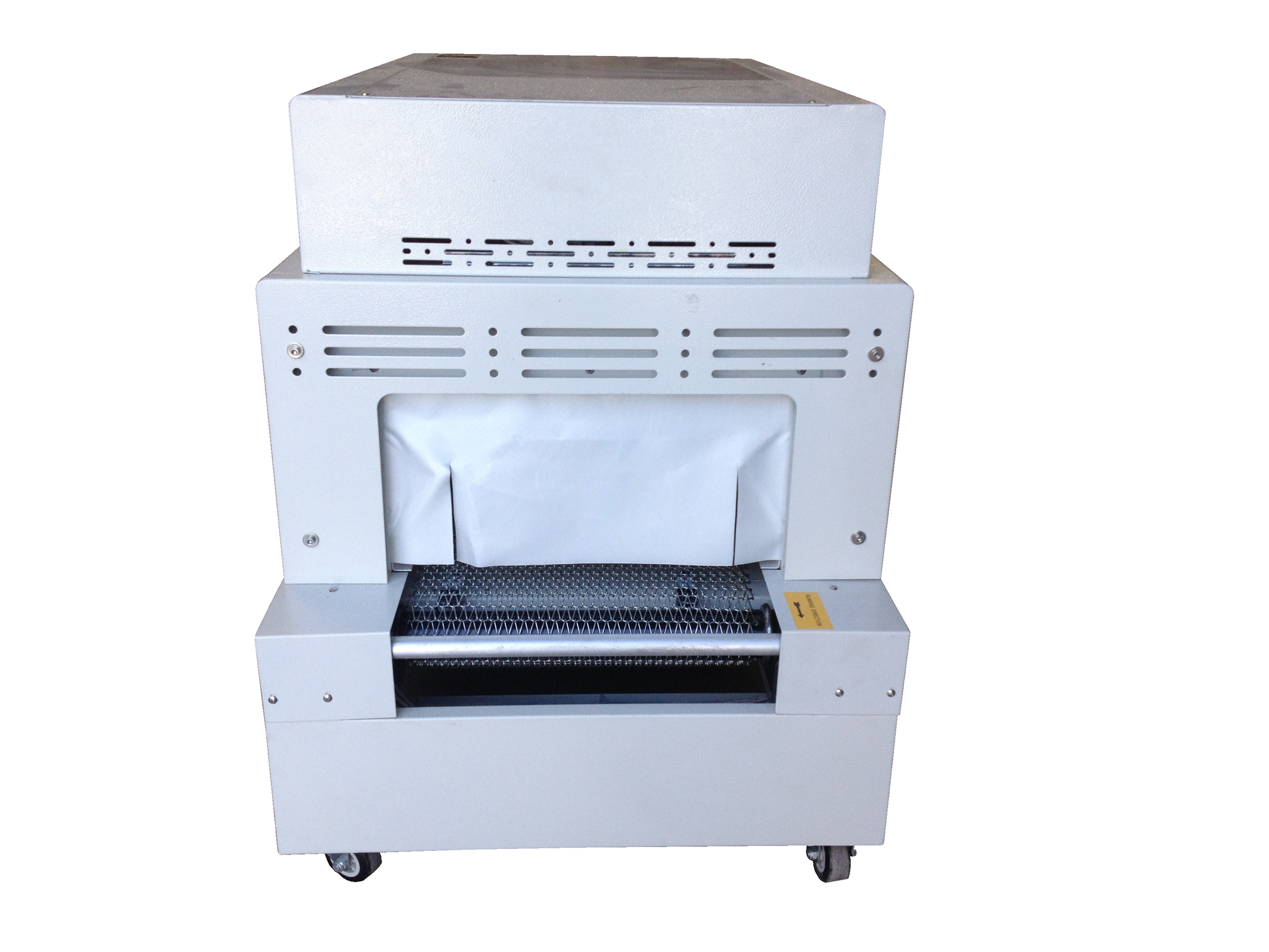

• Large tunnel opening — 15.75" W × 7.9" H — accommodates bulky or irregularly shaped products

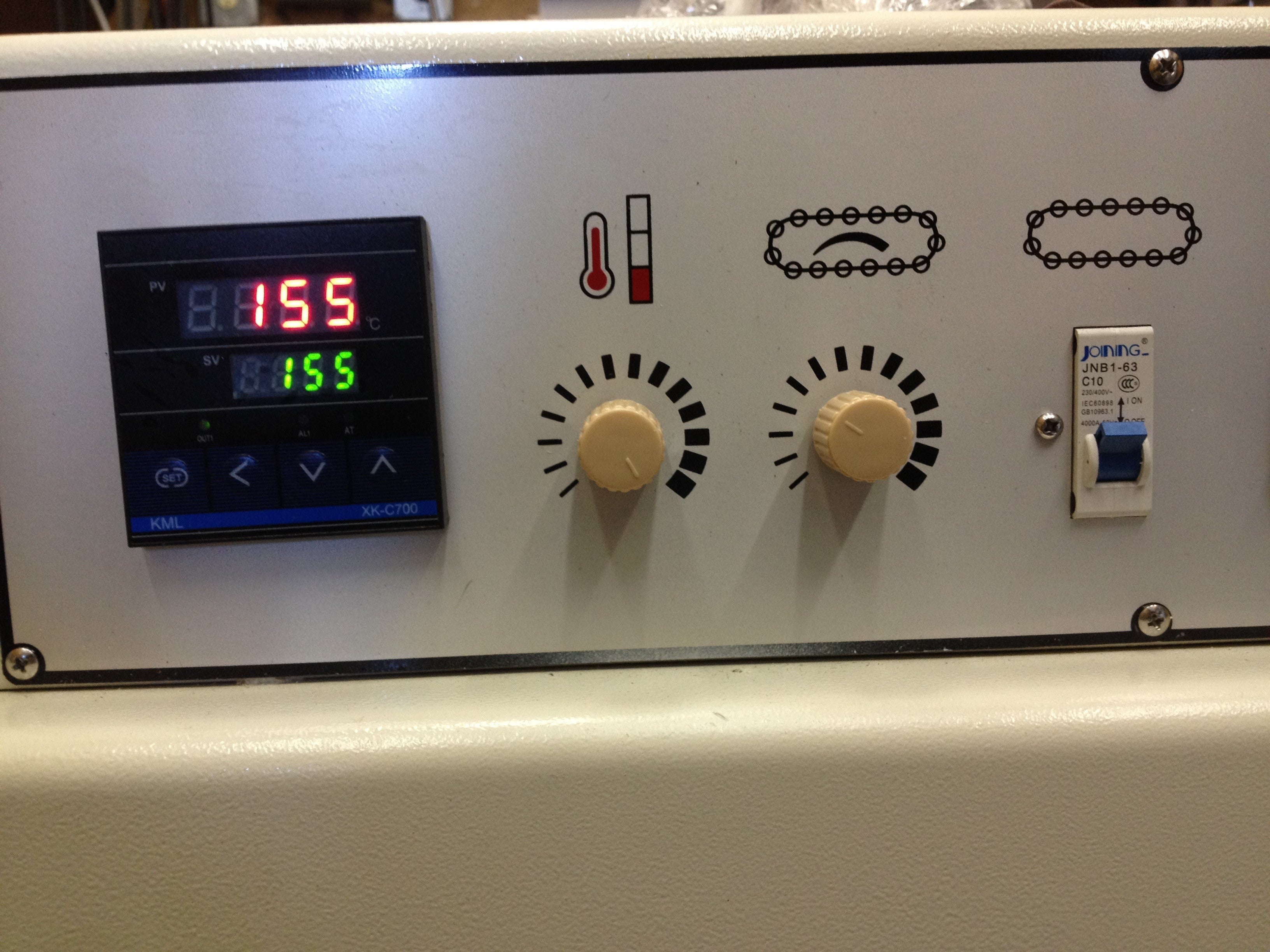

• Adjustable thermostat for precise temperature control across all shrink film types (110–180°C)
• Mesh belt construction ensures even airflow and consistent heat distribution
• Transparent shrink packaging showcases product while protecting from moisture, dust, and scratching
• Height-adjustable frame: low position 32" H, high position 48.9" H
• 1-Year Warranty included

Electrical Requirements

The CE-225 requires a dedicated 220 VAC single-phase, 50/60 Hz, 7.65 kW (~35 amp) circuit. The machine ships with a 3-wire pigtail (2 hot wires + 1 ground wire) — no plug is included. A qualified electrician should install an appropriate plug or wire directly to the breaker box.

Ideal Applications

Food and beverage packaging, retail product bundling, cosmetics, hardware, and any application requiring a clean, professional shrink-wrapped finish at production-line speeds.
