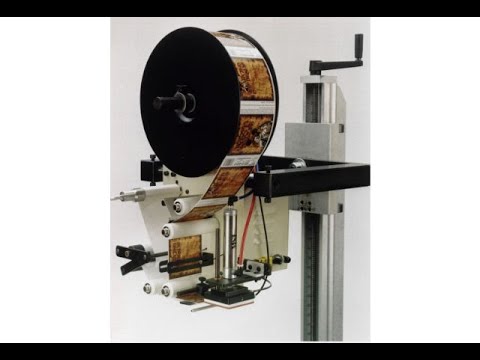

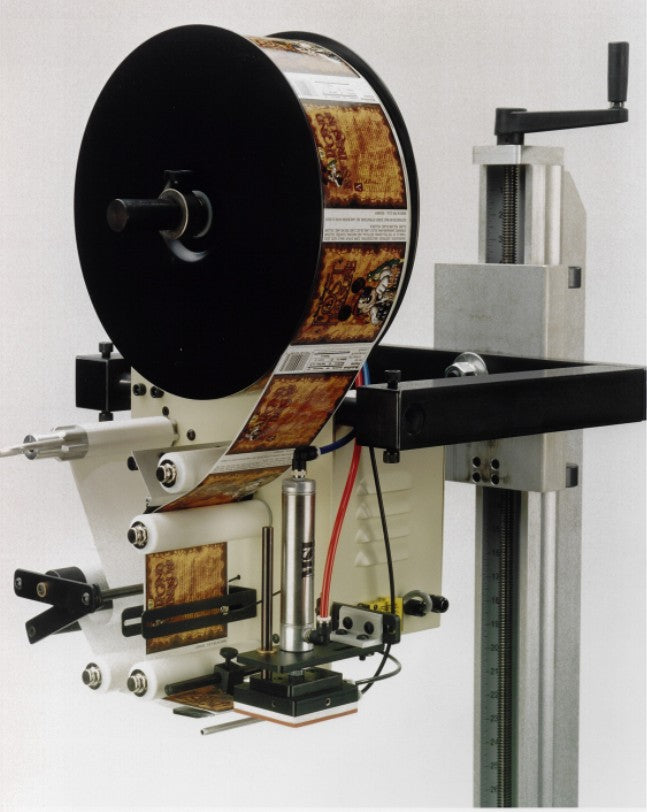

CE-31C Automatic Continuous-Duty Tamp Label Applicator
Couldn't load pickup availability
Details
Details
Machine comes with a 1 year limited part warranty and tech support.
The CE-31C Automatic Continuous-Duty Tamp Label Applicator automatically tamps a label onto the product every time its product photo eye detects a new item. The sensor triggers a labeling cycle, and an air-powered tamp head presses the label directly onto the product. This photo-eye-triggered operation makes the CE-31C a choice for integrating pressure-sensitive label application into an automated production line.
How photo-eye-triggered tamp labeling works
With the applicator positioned and timed for the application, the product photo eye detects each new product and initiates a tamp cycle. A label feeds from the roll onto a vacuum tamp pad. The pneumatic cylinder moves the pad toward the product, presses the label onto the surface, and returns for the next cycle. The product must be correctly positioned within the tamp head's reach during application.
The CE-31C presses the label onto the product with a tamp pad; it does not brush or wipe the label onto a passing surface. Unlike a foot-switch-triggered labeling workflow, the product photo eye automatically initiates each cycle as it detects a new item.
Continuous-duty labeling for automated lines
The compact CE-31C can be integrated over a stepping or indexing conveyor or into an automated work cell. A brushless DC motor, solid steel frame, and solid-state electronics support its continuous-duty design. Its compact size helps accommodate installations where space is limited.
Adjustable label web speed ranges from 0 to 500 inches per minute. This describes label feed speed, not products per minute. Actual throughput depends on label size, product presentation, tamp stroke, dwell time, and line timing.
CE-31C specifications
- Machine type: automatic continuous-duty tamp label applicator
- Cycle trigger: product photo eye detects a new product
- Application method: pneumatic tamp head with vacuum label pad
- Label web speed: adjustable from 0 to 500 inches per minute
- Minimum label size: 1/2 x 1/2 inch
- Maximum label size: 5 x 5 inches
- Maximum label roll diameter: 12 inches
- Label roll core diameter: 1 or 3 inches
- Motor: brushless DC
- Construction: solid steel frame with solid-state electronics
- Shipping weight: 45 lb
- Electrical requirements: 115 VAC, 60 Hz, single-phase
- Compressed air requirement: 60 PSI
Available accessories
- Hot stamp imprinter
- T-base stand
- Label counter
- Custom vacuum pad
- Clear label photo cell
- Extended-stroke tamp cylinder
For application assistance, provide your product dimensions, label size and material, intended label location, product spacing, and line cycle rate. These details help match the mounting arrangement, vacuum pad, and tamp cycle to your production process.
