CE-31R Semi-Automatic Round Bottle Label Applicator*

Machine comes with a 1 year limited part warranty and tech support.

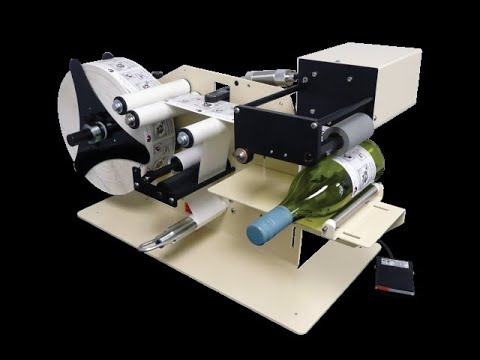

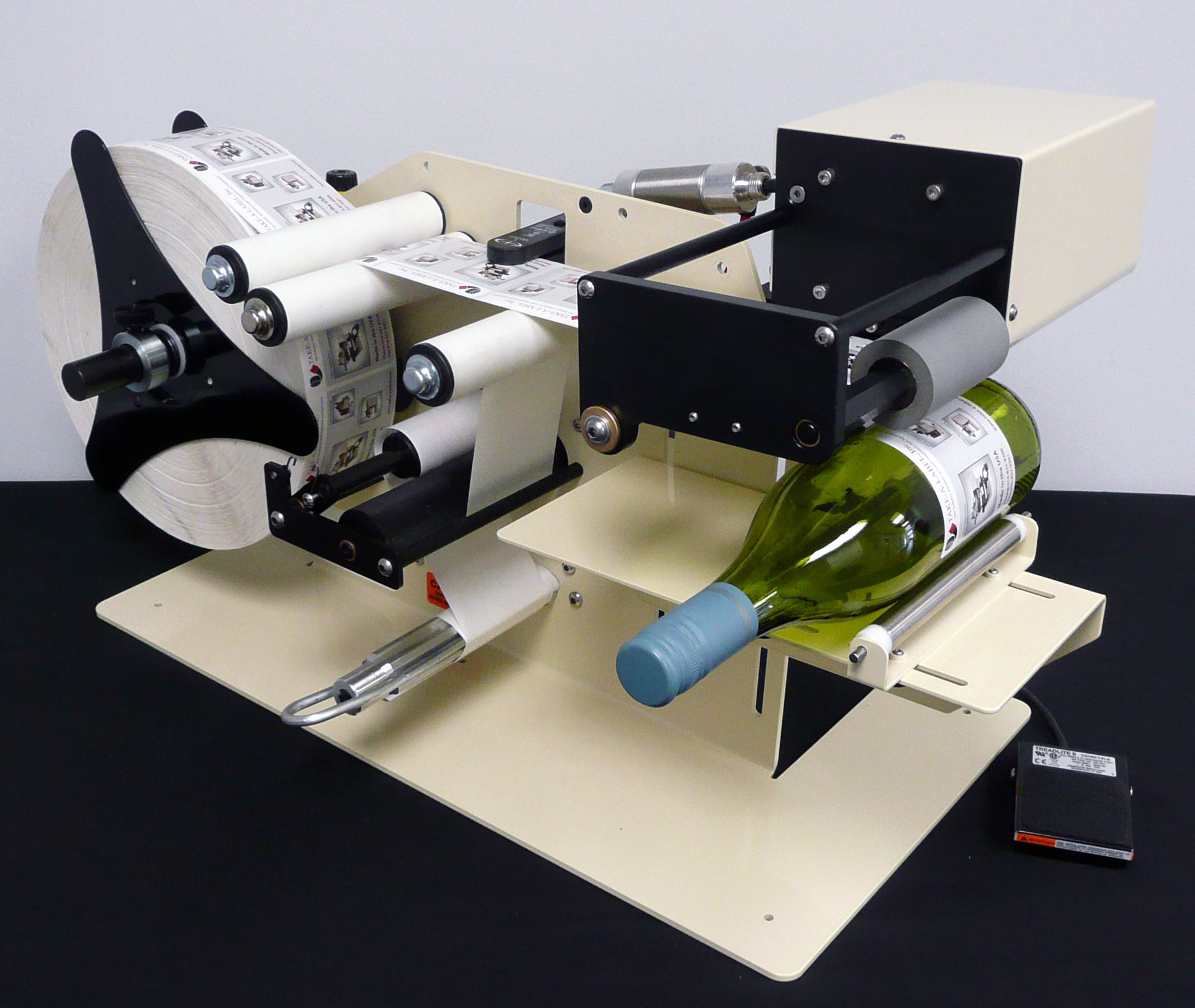

The CE-31R Semi-Automatic Round Bottle Label Applicator applies pressure-sensitive labels to round bottles and cylindrical products. Present the bottle on the carriage rollers, then press the footpedal to apply the label. An air-powered head lowers a rubber drive roller onto the product and rotates it while the label feeds onto its surface.

The CE-31R is semi-automatic: the operator positions each bottle, starts its labeling cycle with the footpedal, and removes it afterward. It is not an automatic conveyor-fed labeler. Its open-carriage design accommodates round products from 1/4 inch to 6.5 inches in diameter without an enclosure restricting product length.

How footpedal-triggered labeling works

1. Set the carriage and support rollers for the product.
2. Place the bottle on the carriage rollers in the labeling position.
3. Press the footpedal to initiate the labeling cycle.

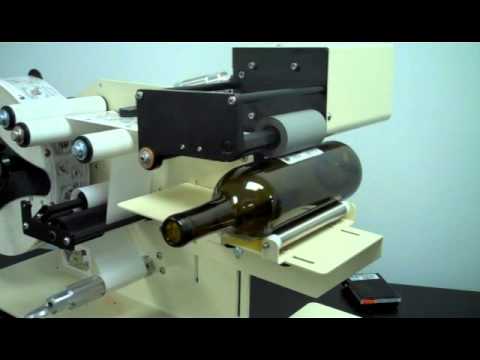

4. The pneumatic head lowers the drive roller, which rotates the bottle as the label peels from its liner and wraps onto the surface.
5. The label photo eye controls where the label web stops. Remove the labeled bottle and position the next one.

The photo cell senses the label web; the operator's footpedal starts the application cycle. The scrap rewind collects the used liner. Actual output depends on bottle handling, label dimensions, and machine setup rather than a stated bottles-per-minute rating.

Flexible round-product labeling

The CE-31R supports applications ranging from small round products to larger bottles and jars within its diameter range. Its powder-coated all-steel frame, solid-state electronics, photo cell label sensor, and waste liner rewind provide a dedicated workbench labeling setup. Match the carriage to your product shape and support requirements.

CE-31R specifications

• Machine type: semi-automatic round product label applicator
• Cycle activation: footpedal pressed after manual bottle placement
• Product rotation: rubber drive roller lowered by an air-powered head
• Product diameter: 1/4–6.5 inches
• Minimum label size: 1/2 x 1/2 inch
• Maximum standard label width: 5 inches
• Optional label width: up to 7 inches with the 7-inch wide label kit
• Maximum label roll outside diameter: 12 inches
• Label roll core diameter: 1 or 3 inches
• Machine dimensions: 30 inches L x 16 inches W x 17 inches H
• Shipping weight: 75 lb
• Electrical requirements: 115 VAC, 60 Hz
• Listed air requirement: 40 PSI
• Construction: powder-coated all-steel frame with solid-state electronics

Available options

• Front/back label kit for applying separate front and back labels
• All-purpose carriage
• 7-inch wide label kit
• Clear label photo sensor

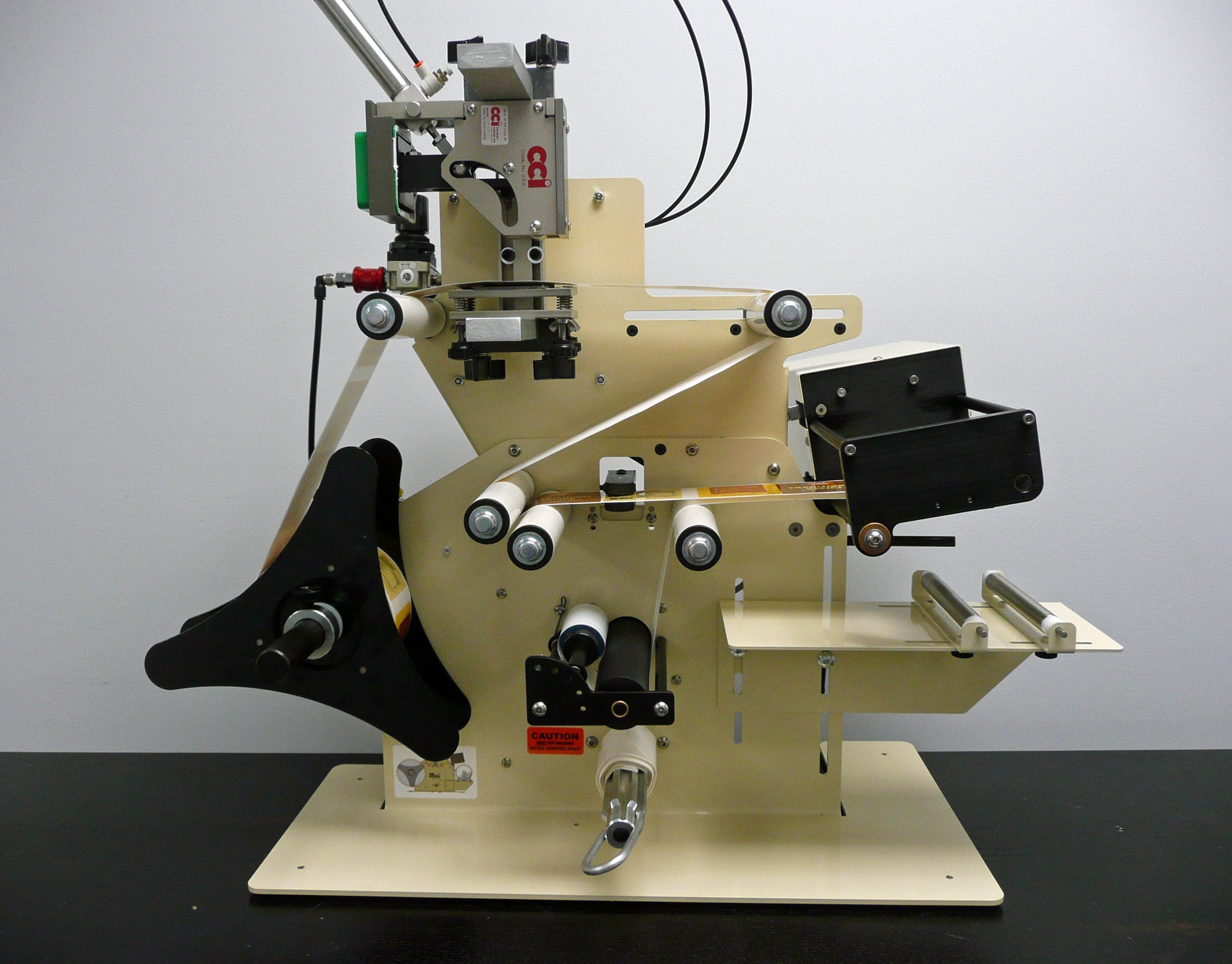

• Hot stamp imprinter
• Ink imprinter

Label compatibility and application assistance

Labels need gaps on the liner for the photo cell to detect each label. All clear labels must be tested. For application assistance, provide bottle diameter and shape, label dimensions and material, and whether you need a single wrap label or separate front and back labels. This helps match the carriage and optional equipment to the job.
