Machine comes with a 1 year limited part warranty and tech support.

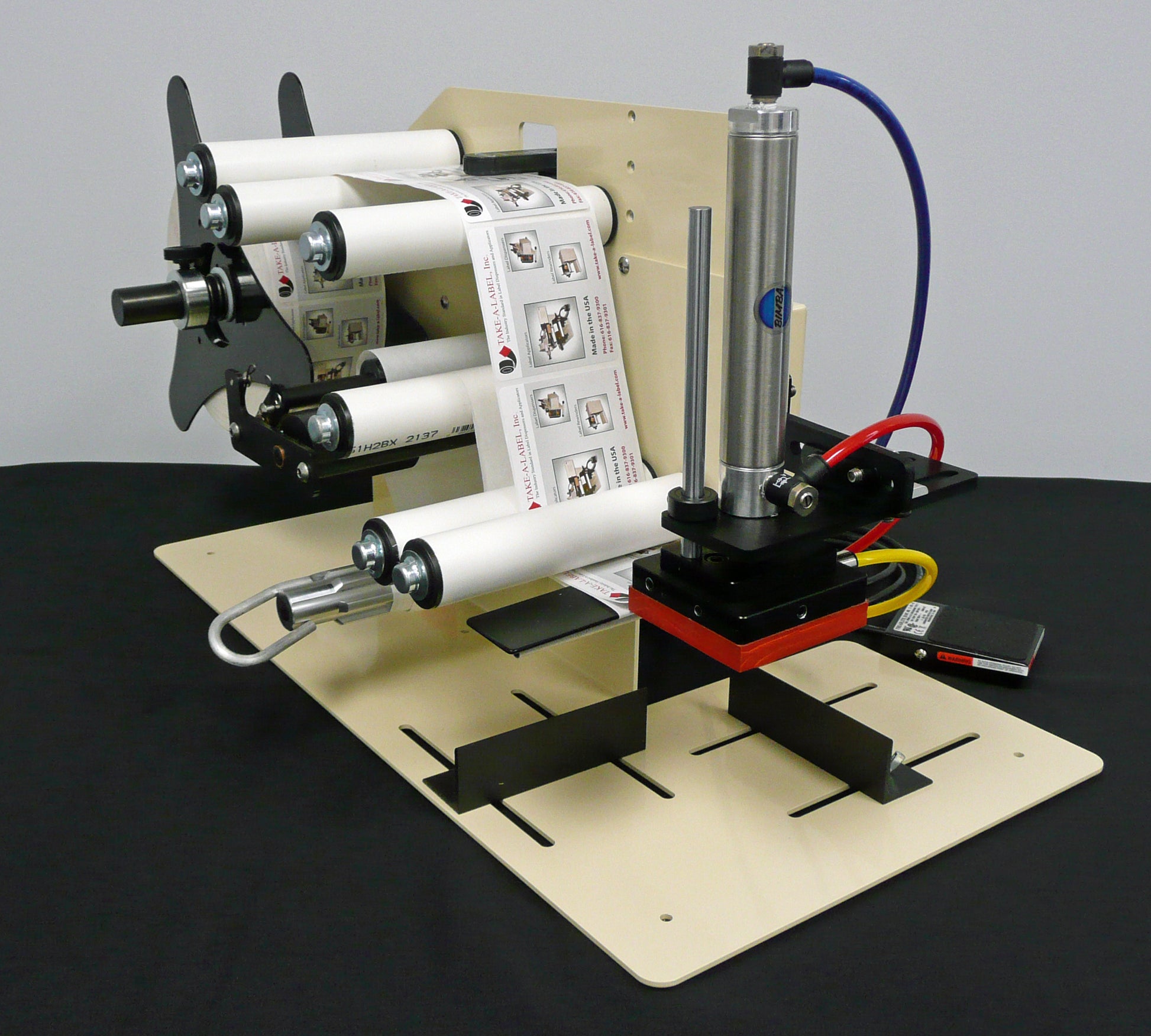

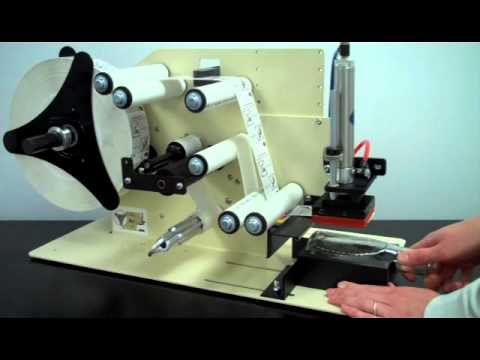

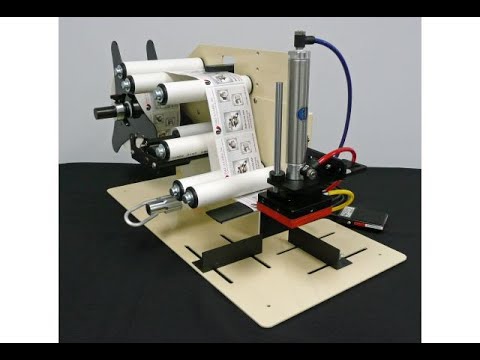

The CE-31T Tamp-On Label Applicator is a semi-automatic labeling machine that tamps the label directly onto the product. Its air-powered tamp head uses a vacuum pad to hold the label, then presses it onto a flat or semi-flat product surface. The operator positions the product and activates the labeling cycle with a foot switch.
How the tamp-on label applicator works
Rather than wiping a label onto a moving product, the CE-31T brings the label to the product with a direct-contact tamp stroke. The label transfers from its liner to the vacuum tamp pad. The pneumatic head lowers, presses the label onto the product, and returns for the next cycle. This makes the application method clear: the machine applies labels by tamping them onto the surface.
Labeling flat and semi-flat products
Use the CE-31T for pressure-sensitive label application on flat and semi-flat surfaces, including boxes, cartons, pouches, trays, lids, and flat-sided containers, subject to product fit and support under the tamp head. Foot-switch activation leaves the operator's hands available to position each product. Label placement accuracy is ±1/16 inch.
- Tamp-on application: an air-powered head presses the label directly onto the product.
- Semi-automatic operation: the operator loads and positions each product and starts the cycle with a foot switch.
- Waste liner handling: scrap rewind collects the used label liner.
- Construction: all-steel frame with a powder-coated finish.
CE-31T specifications
- Application method: pneumatic tamp-on with vacuum label pad
- Product surfaces: flat and semi-flat
- Activation: foot switch
- Label placement accuracy: ±1/16 inch
- Minimum label size: 1/2 x 1/2 inch
- Maximum standard label size: 5 x 5 inches
- Maximum label roll diameter: 12 inches
- Label roll core diameter: 1 or 3 inches
- Machine dimensions: 27 inches L x 15 inches W x 13 inches H
- Shipping weight: 45 lb
- Electrical requirements: 115 VAC, 60 Hz, single-phase
- Air requirement: 30–60 PSI
Available options and accessories
- 7-inch wide label kit
- Clear label photo sensor. All clear labels must be tested.
- Ink imprinter
- Hot stamp imprinter
- Product fixture mold
For application assistance, provide your product dimensions, label dimensions, label material, and intended placement so the tamp pad and product setup can be matched to your labeling job.
