CE-615 Pallet Stretch Wrapper

Simple to operate
Heavy Duty Construction
LCD Screen and PLC
Programmable wrap pattern
Single button automatic cycle start
Emergency stop button
Variable film carriage speed
Auto load height photo-eye
Manual controls

Max Pallet Size: 50” W x 50” L x 98” H
Machine Dimensions: 96.5" L x 59" W x 109.5" H
App. Shipping Weight: 1,300 Lbs.
Power Requirements: 120V / 1Ph / 15A Dedicated Service
Maximum Load Weight: 4000 Lbs

SKU#: CE-615

Request a Quote

(866) 520-3248

Details

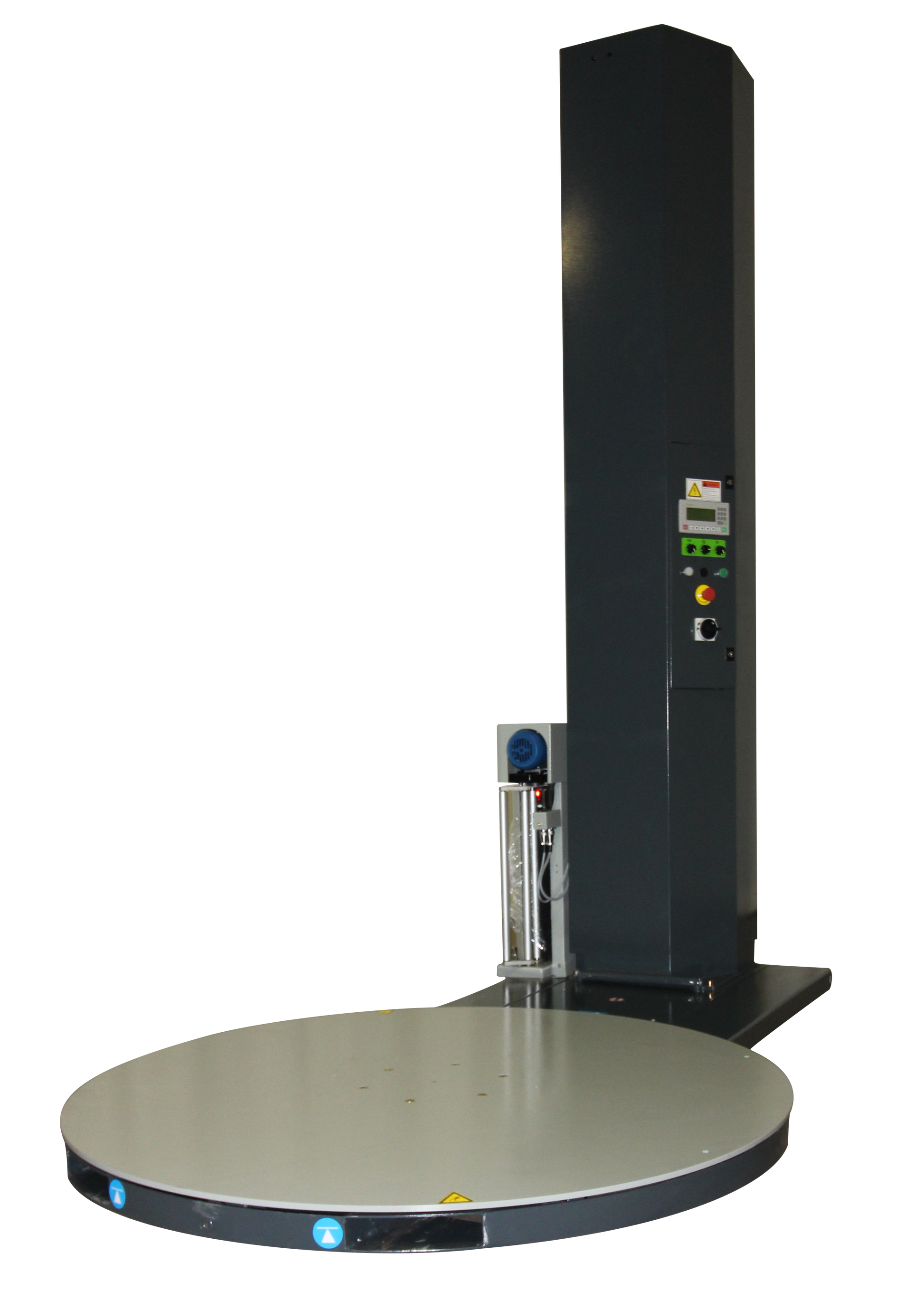

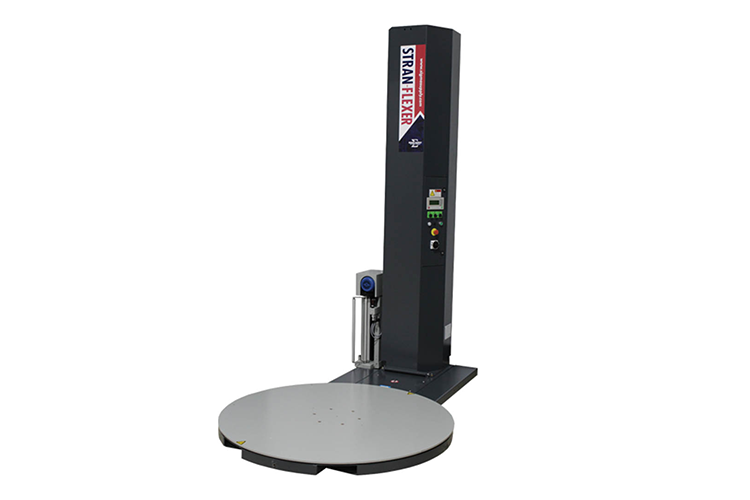

The CE-615 Pallet Stretch Wrapper is a value priced semi-automatic stretch wrapper engineered to provide trouble free operation year after year and eliminate issues with hand wrapped pallets.

This Semi-Automatic Stretch Wrapper combines advanced design with unbeatable reliability in a sleek frame to provide you with a rugged machine of unmatched quality. The CE-615 Pallet Stretch Wrapper is the perfect solution to convert high volume hand wrap users over to wrapping pallets by machine saving you time, energy, and money!

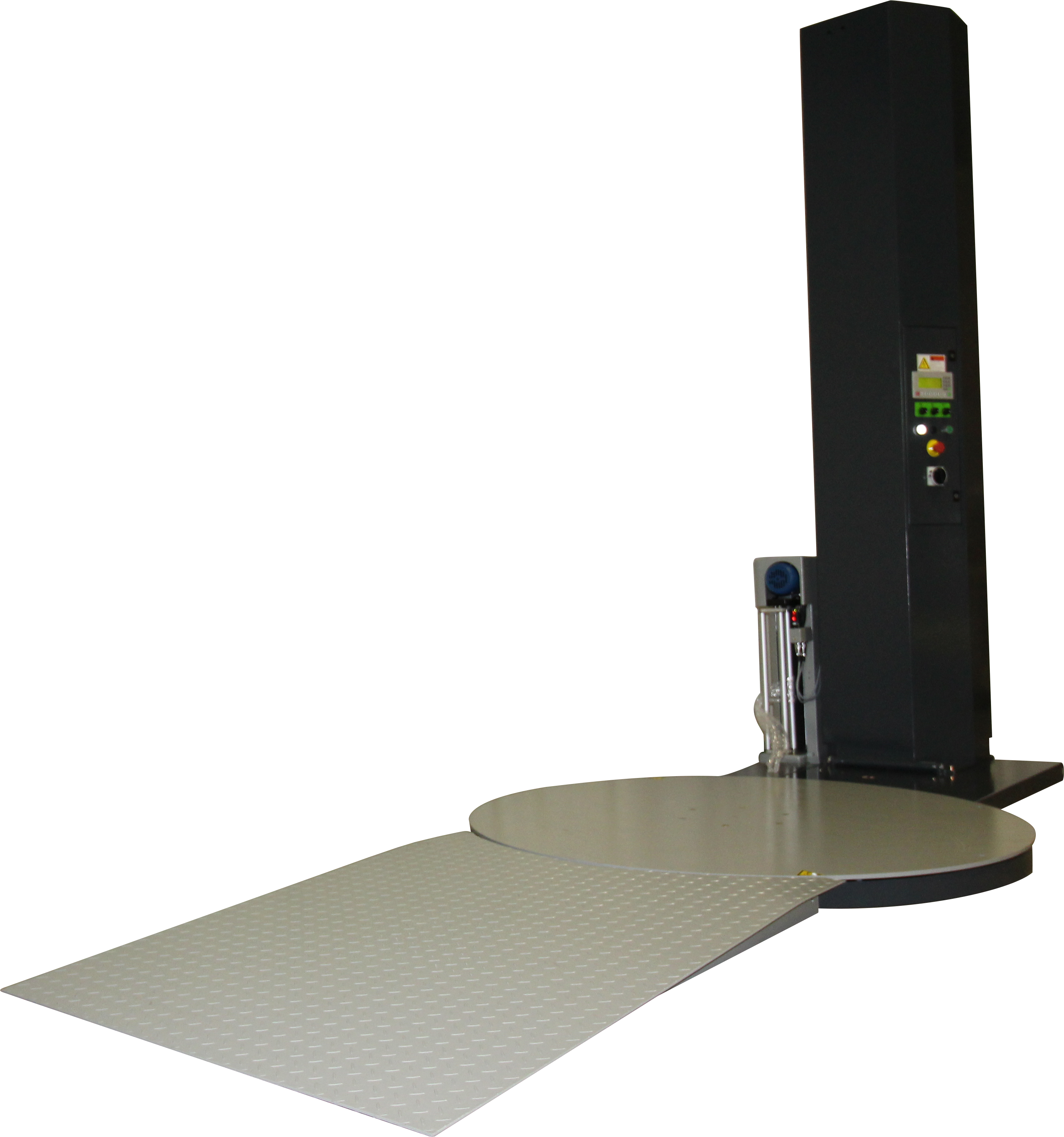

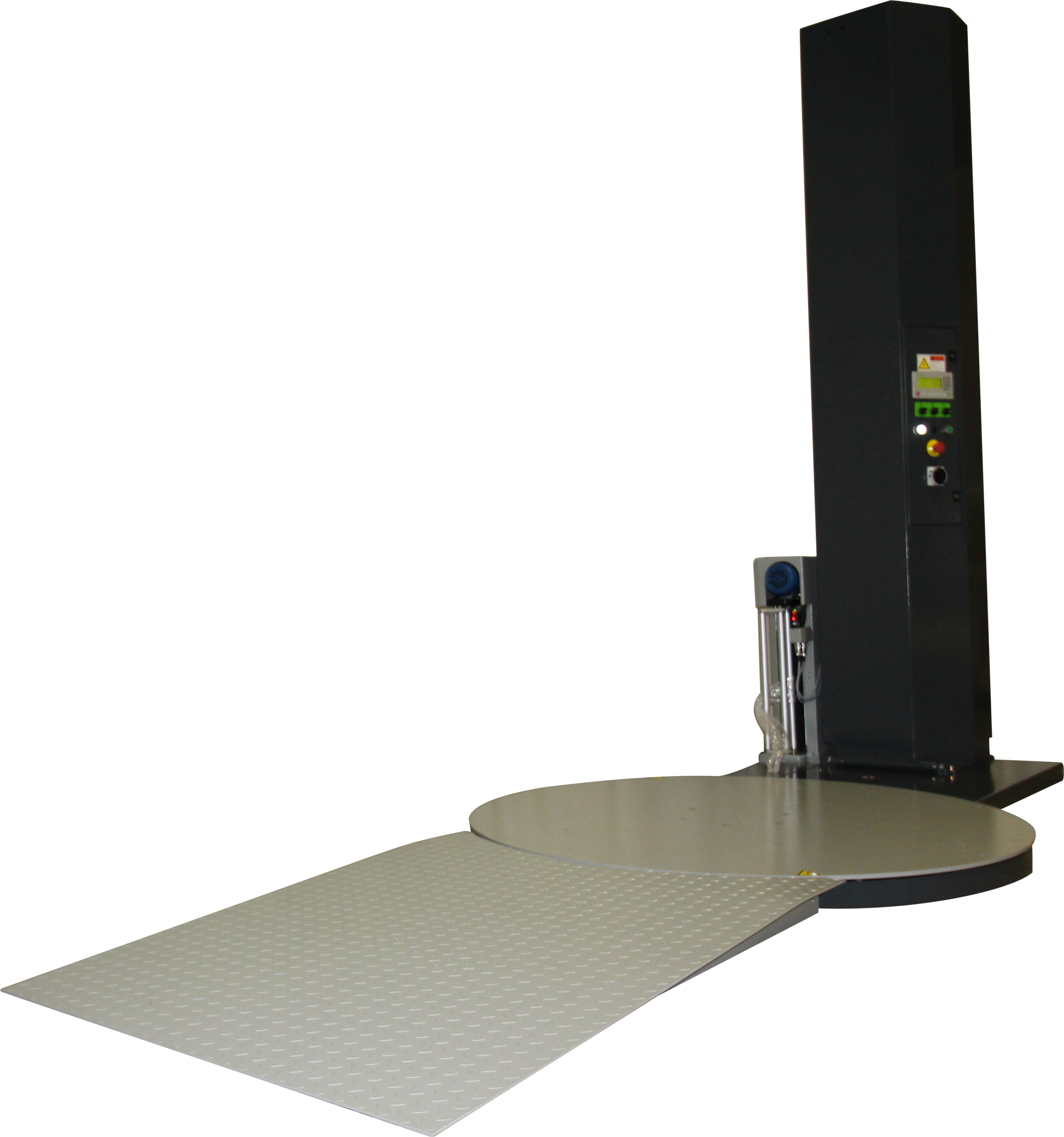

Includes Heavy-duty steel ramp for pallet jack.

Specifications

Max Pallet Size: 50” W x 50” L x 98” H

Power Supply: 120V / 1Ph / 15A Dedicated Service

Machine Weight: 1,300 Lbs.

Turntable: 59" diameter laser-cut steel plate, 16 point cam-follower support system, 3" Turntable height, Safety surround ring encloses turntable, Ramp accessible on all three sides

Turntable Drive: 0-12 RPM variable speed, 1 HP AC motor with variable frequency drive, ANSI #50 direct chain drive with shock dampener

Film Delivery: Quick thread web tensioning system, 200% Powered Prestretch, Electronic film tension control

Film Capacity: 20" machine grade film

Control Features: Simple to operate, LCD Screen and PLC, Programmable wrap pattern, Single button automatic cycle start, Emergency stop button, Variable film carriage speed, Auto load height photo-eye, Manual controls
