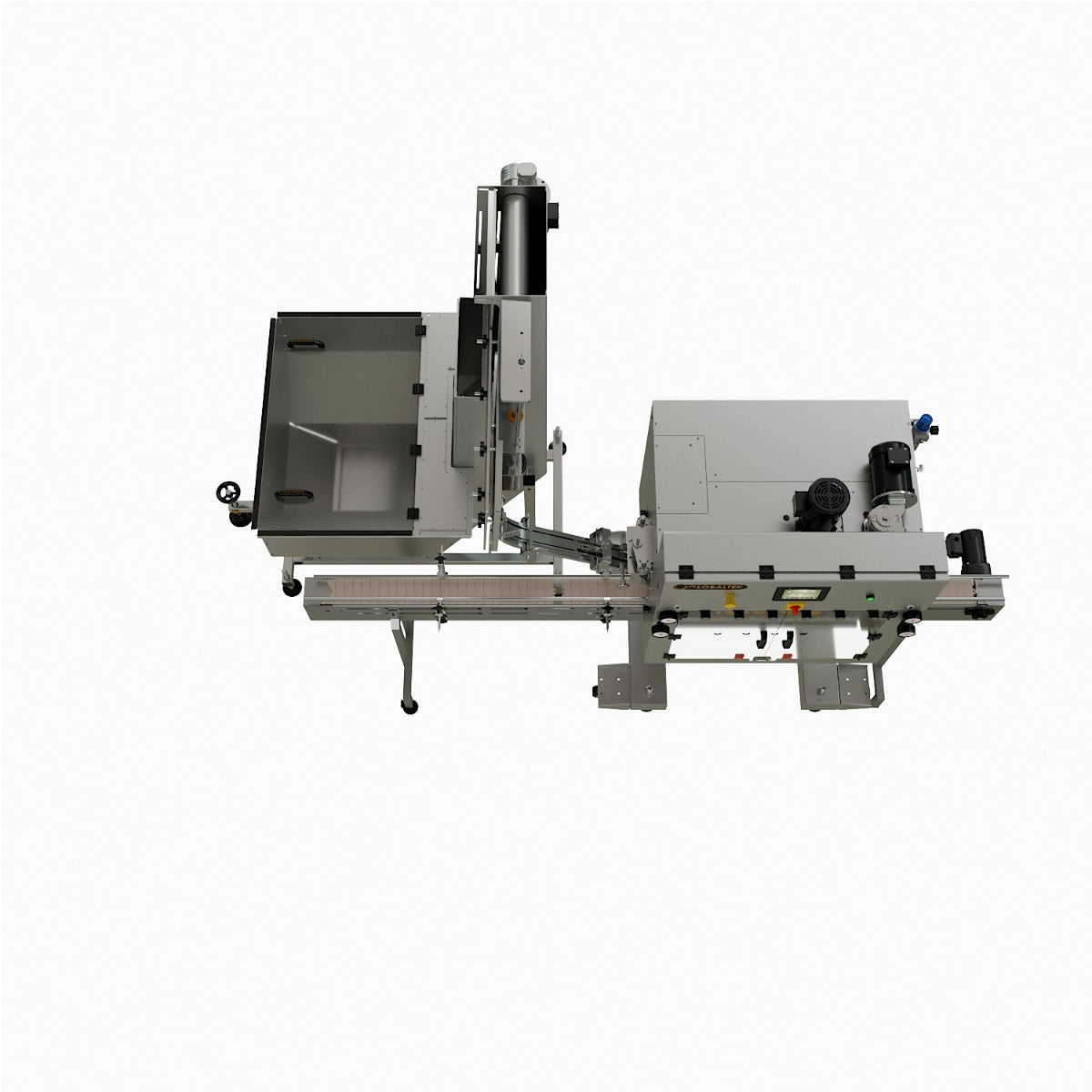

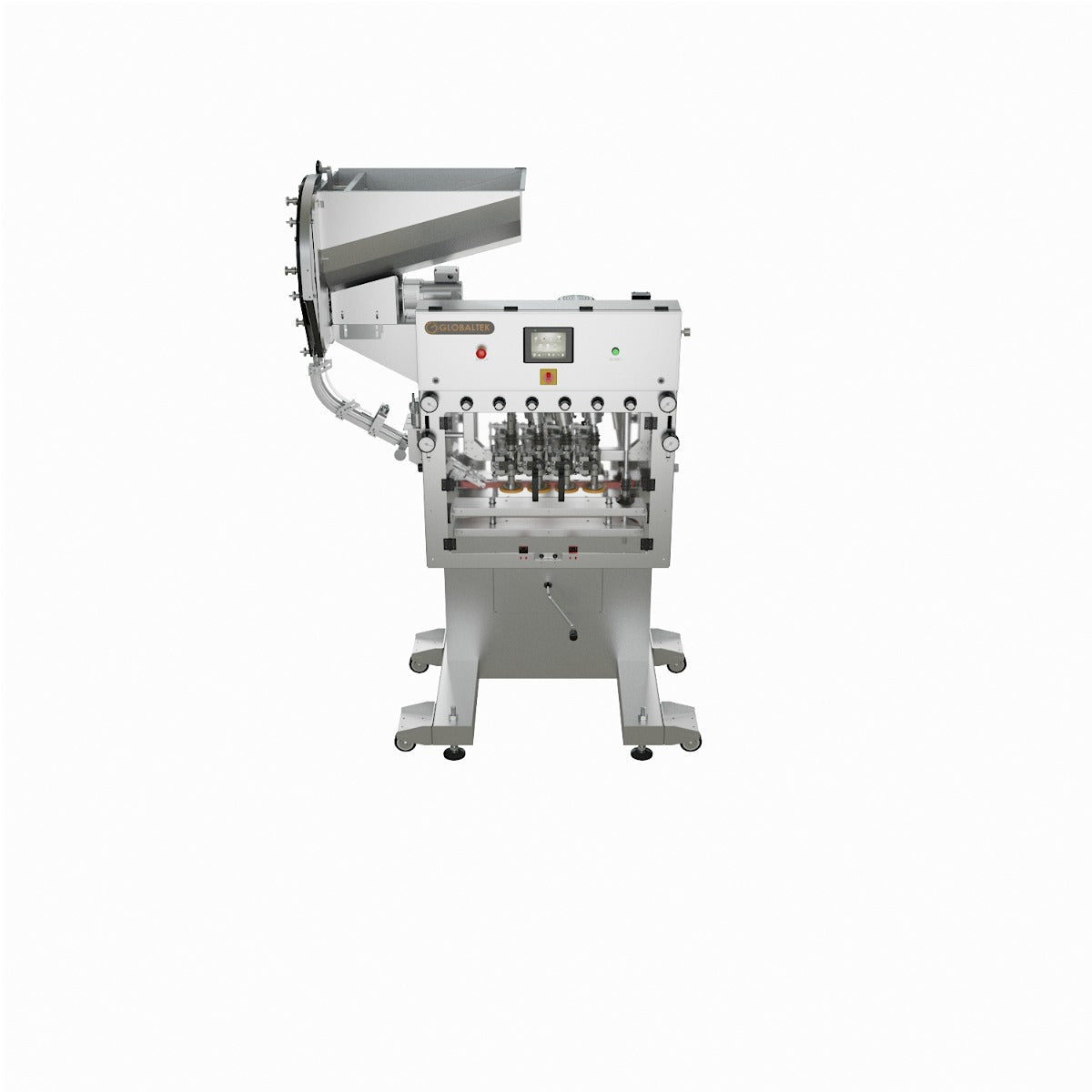

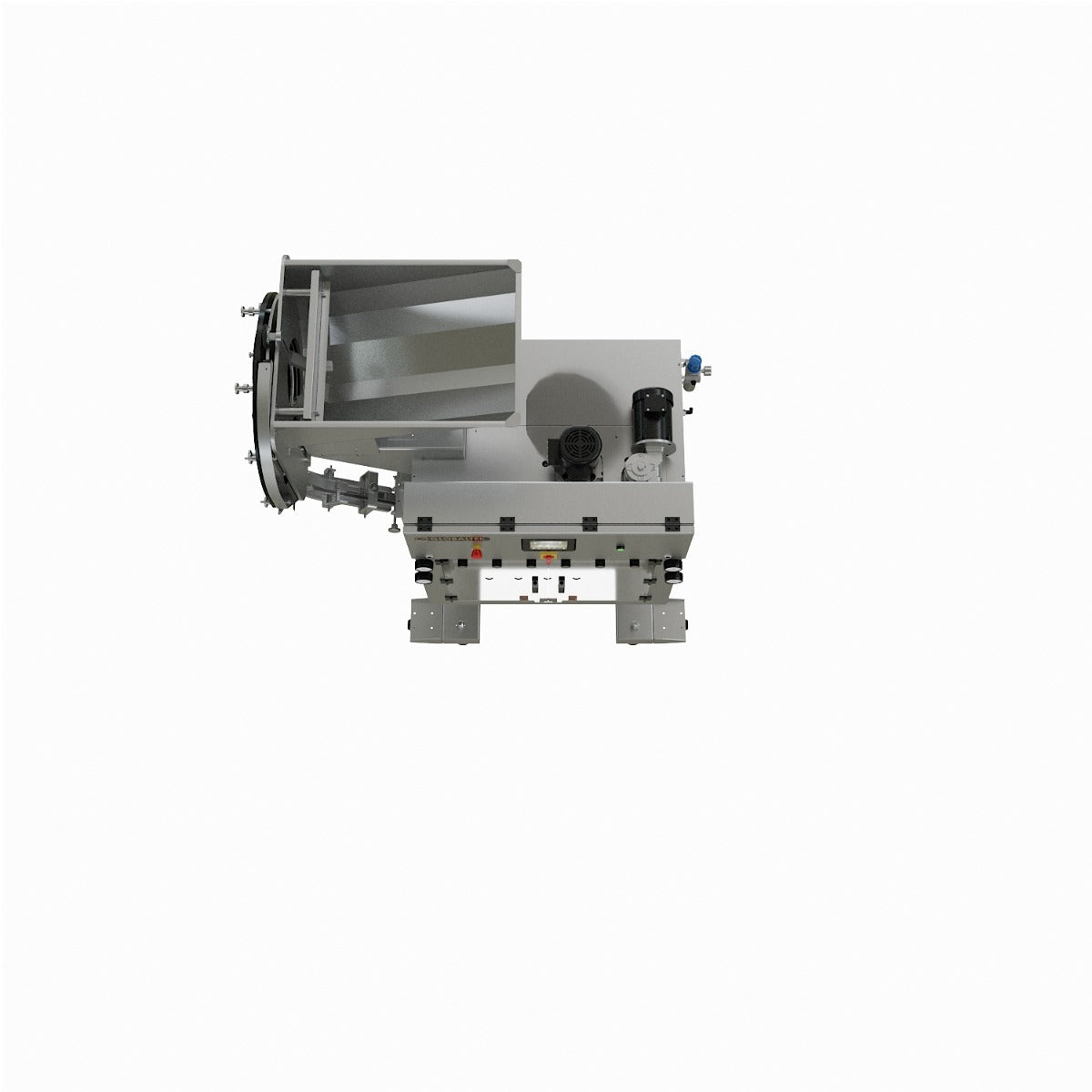

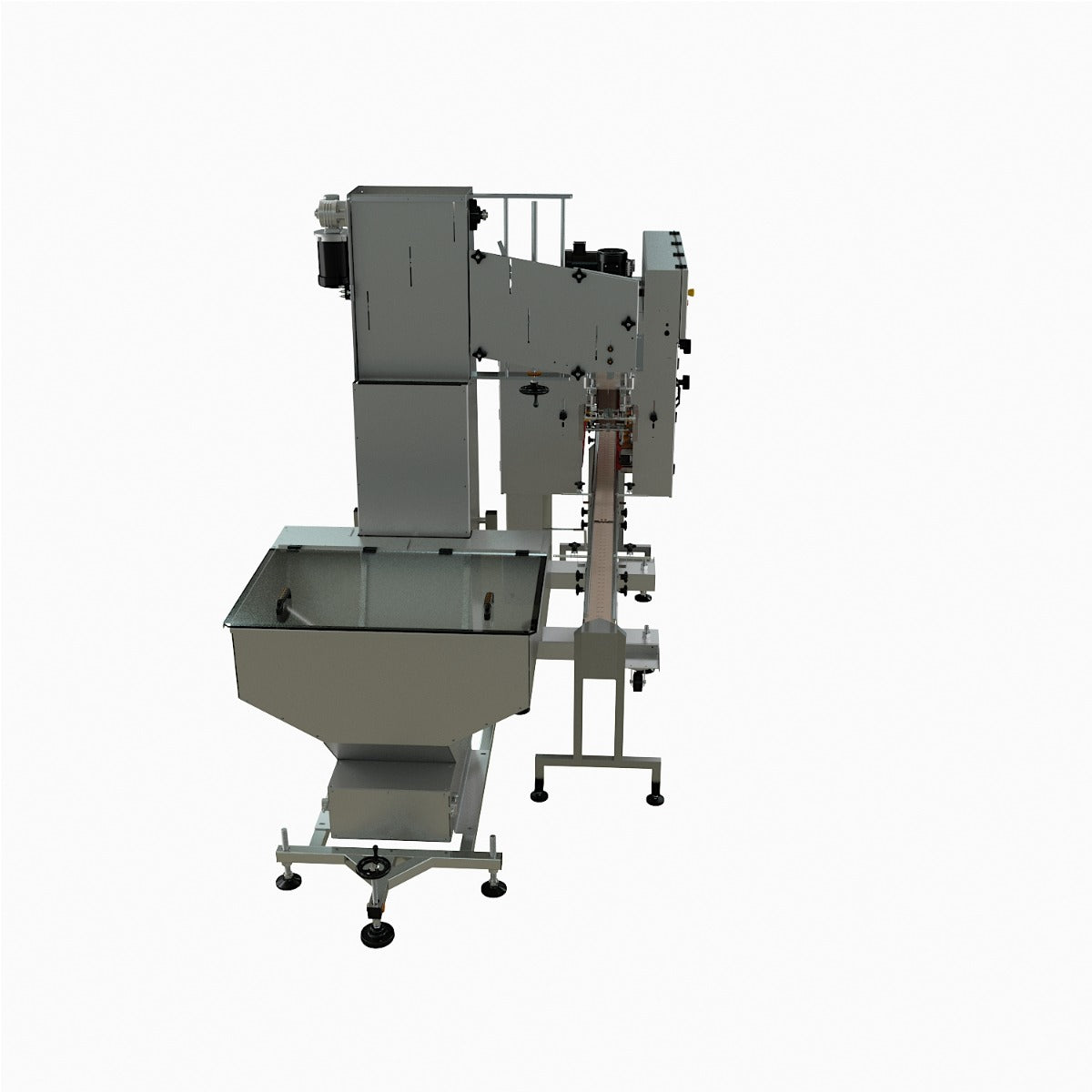

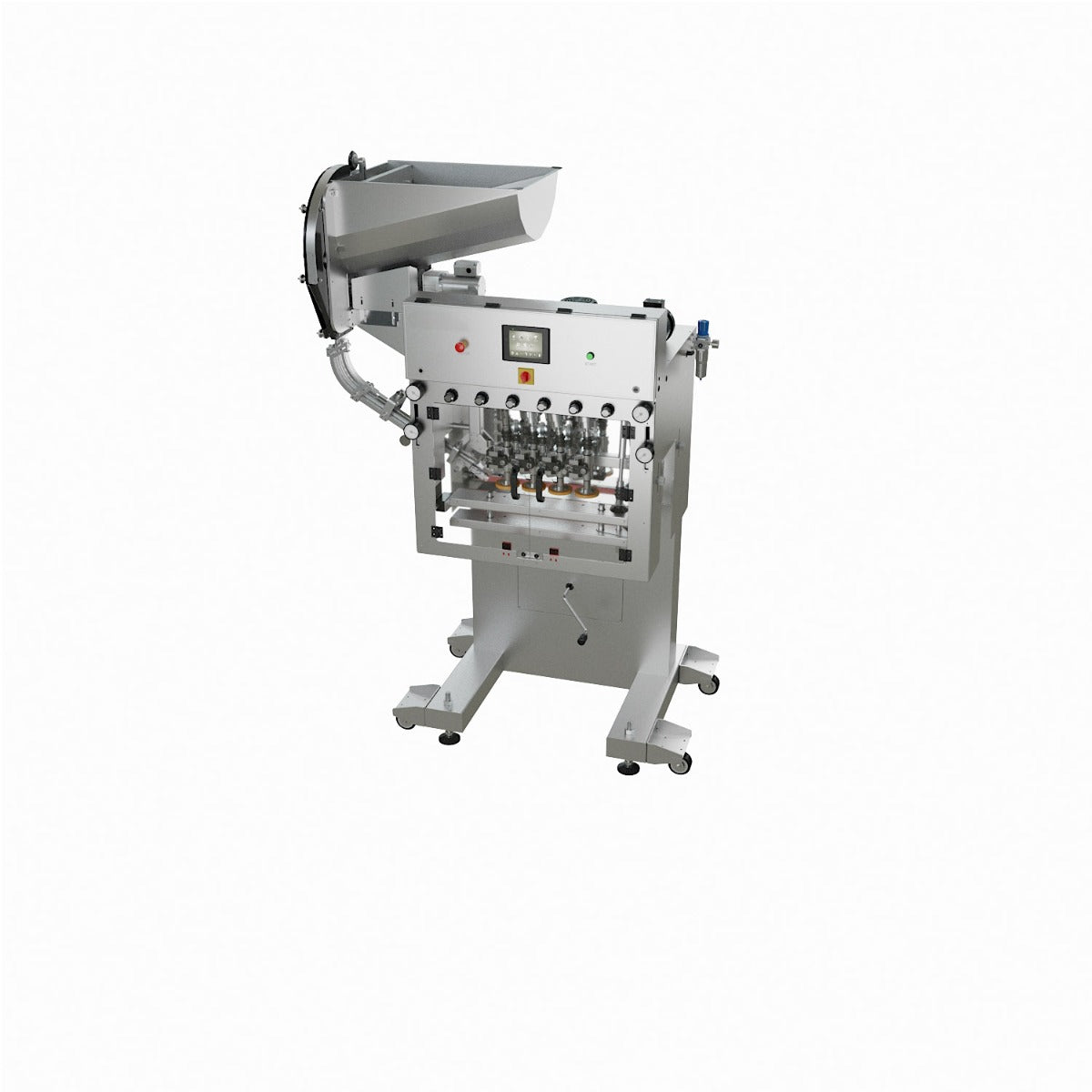

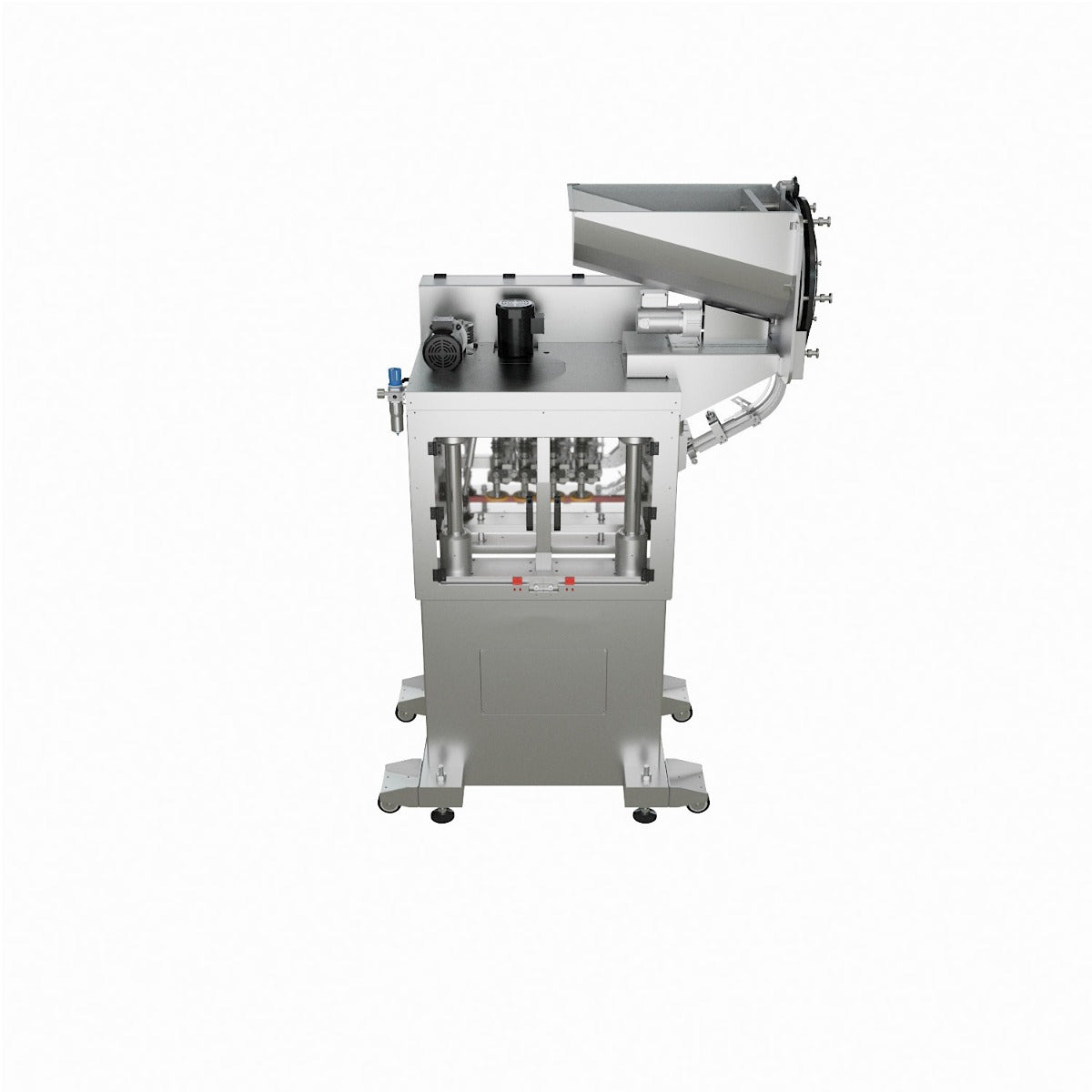

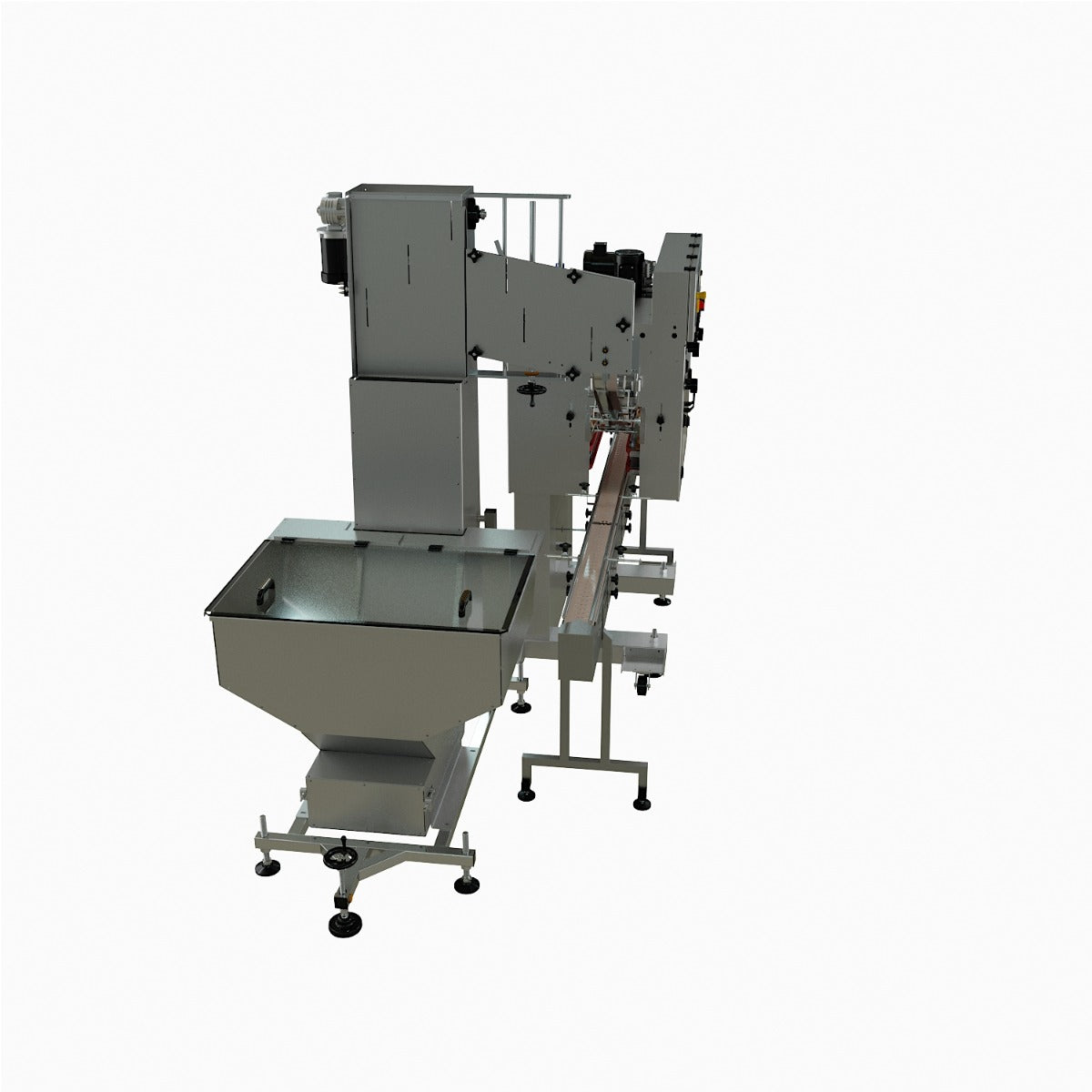

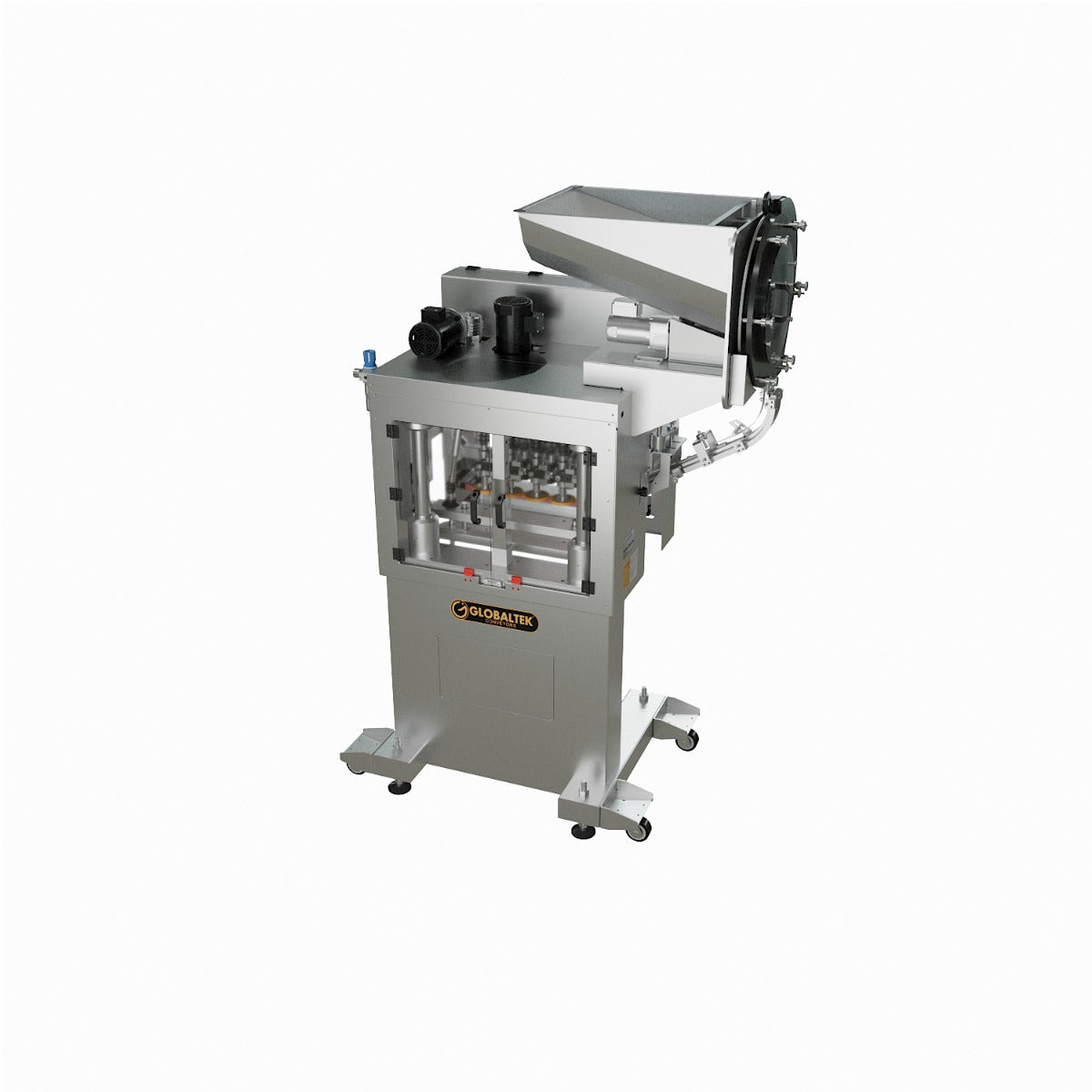

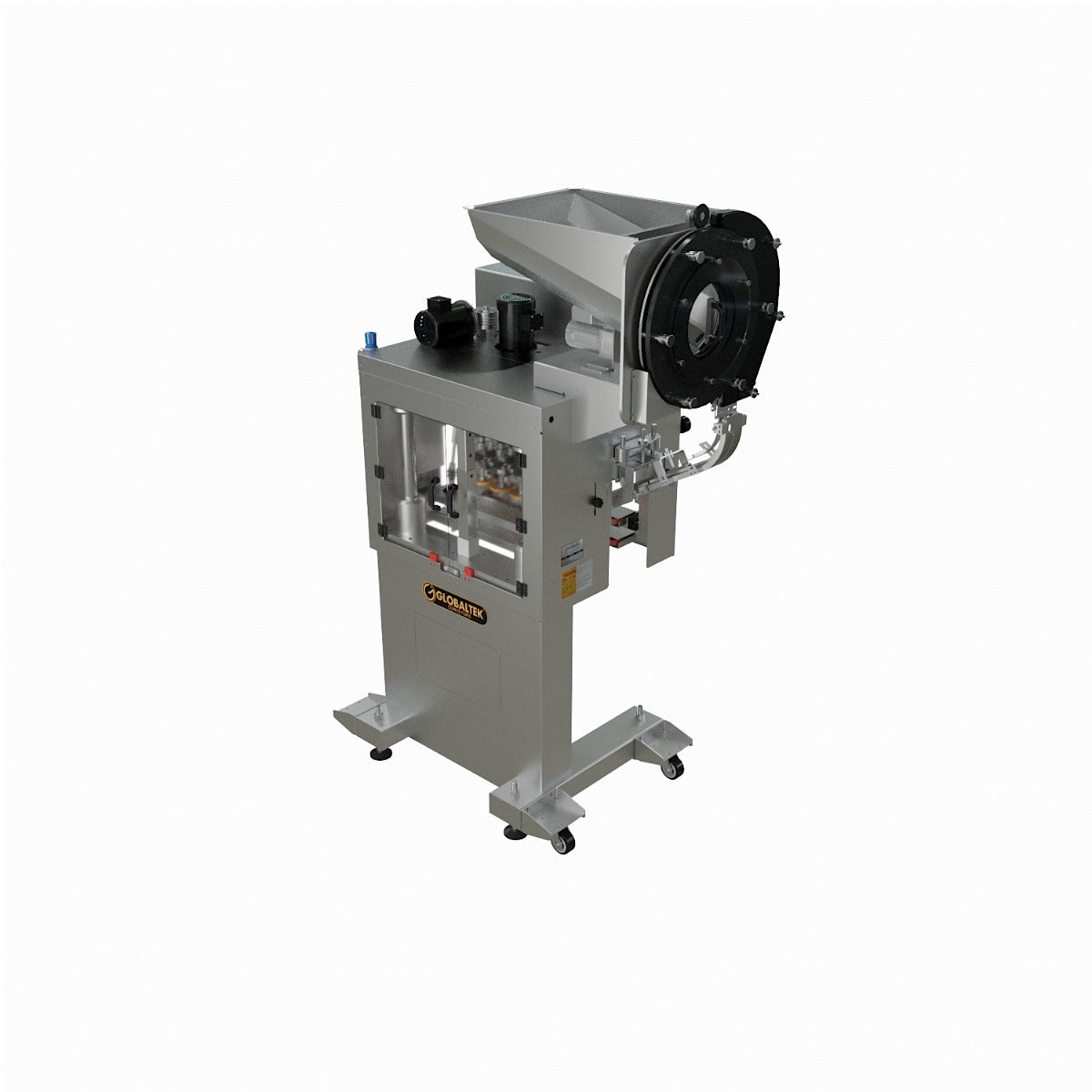

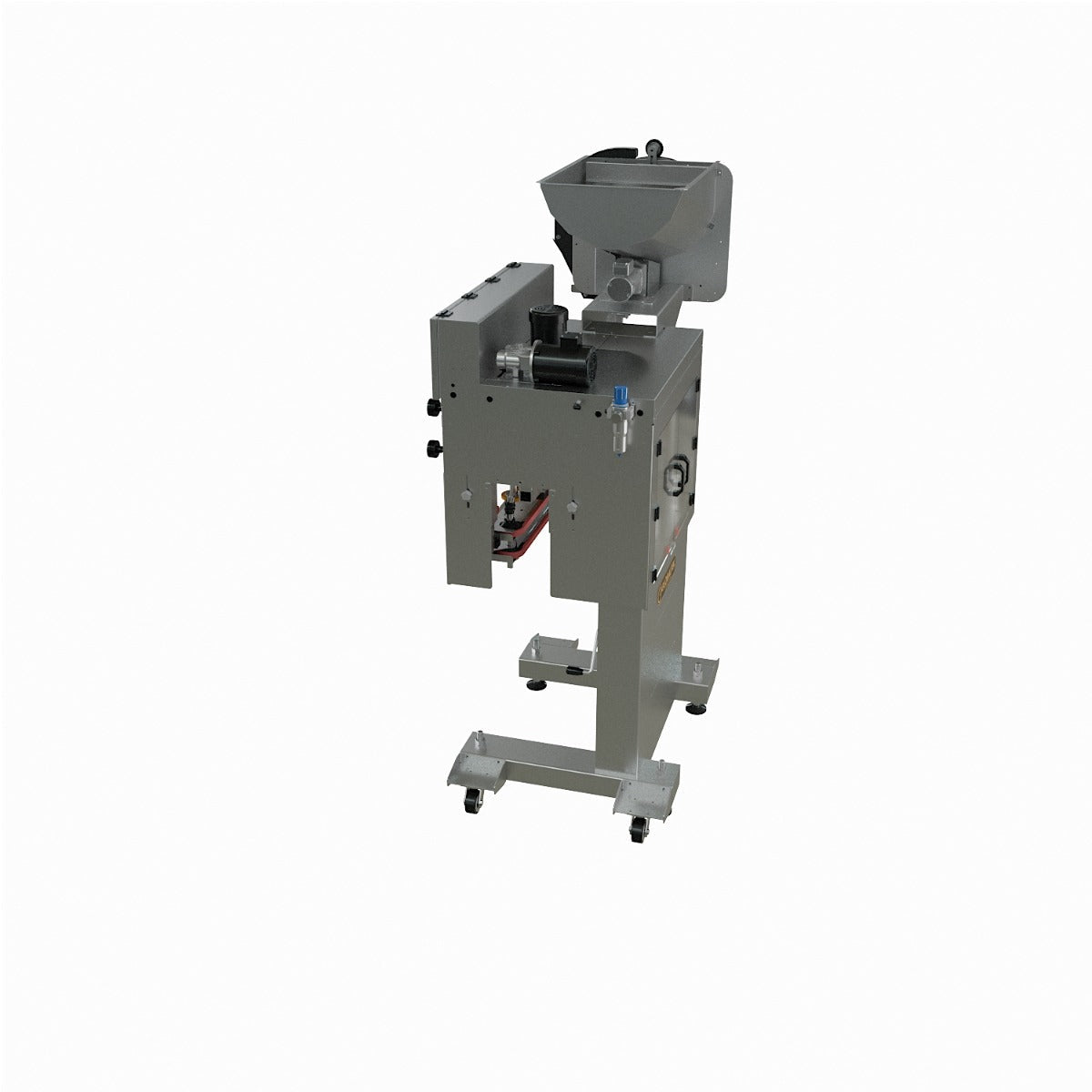

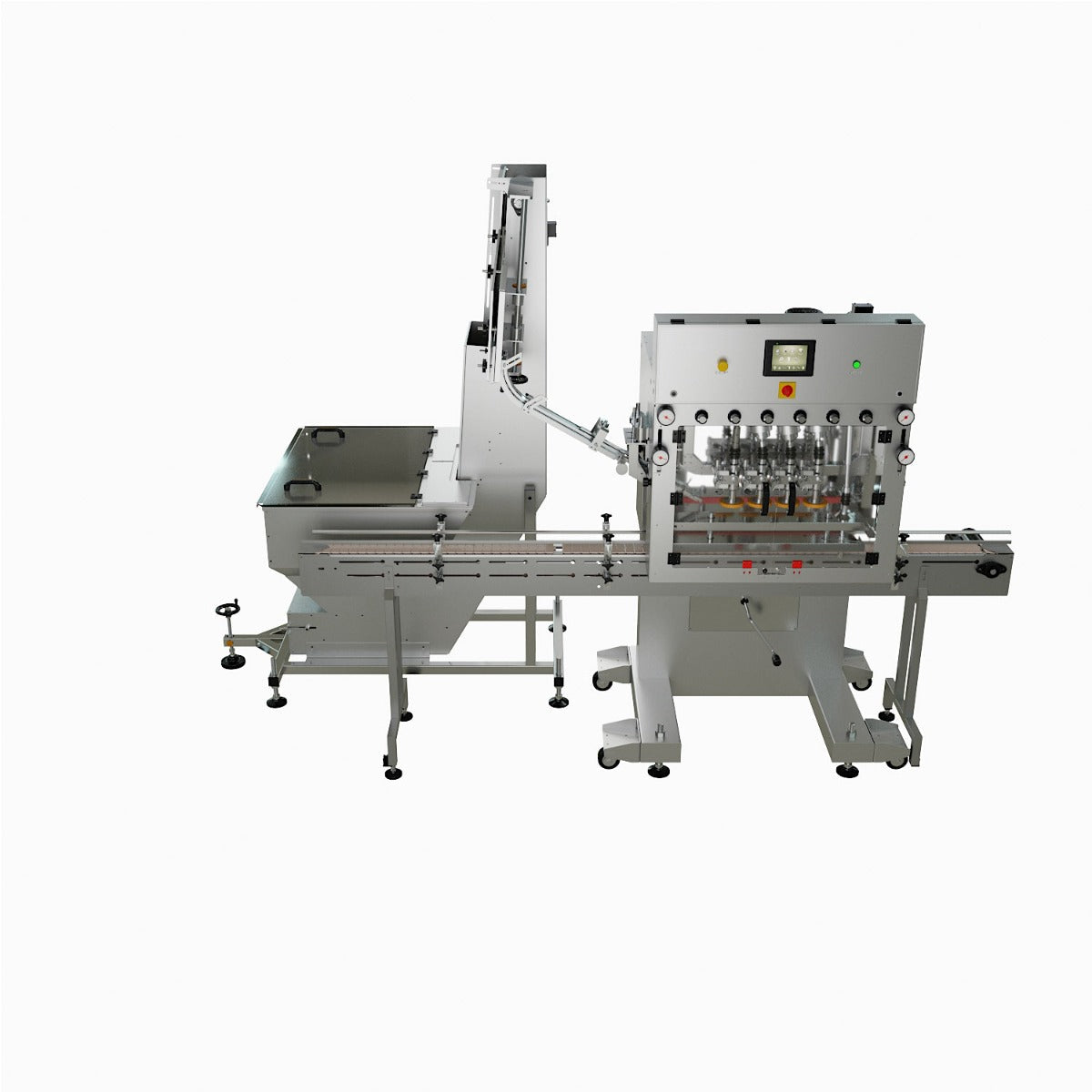

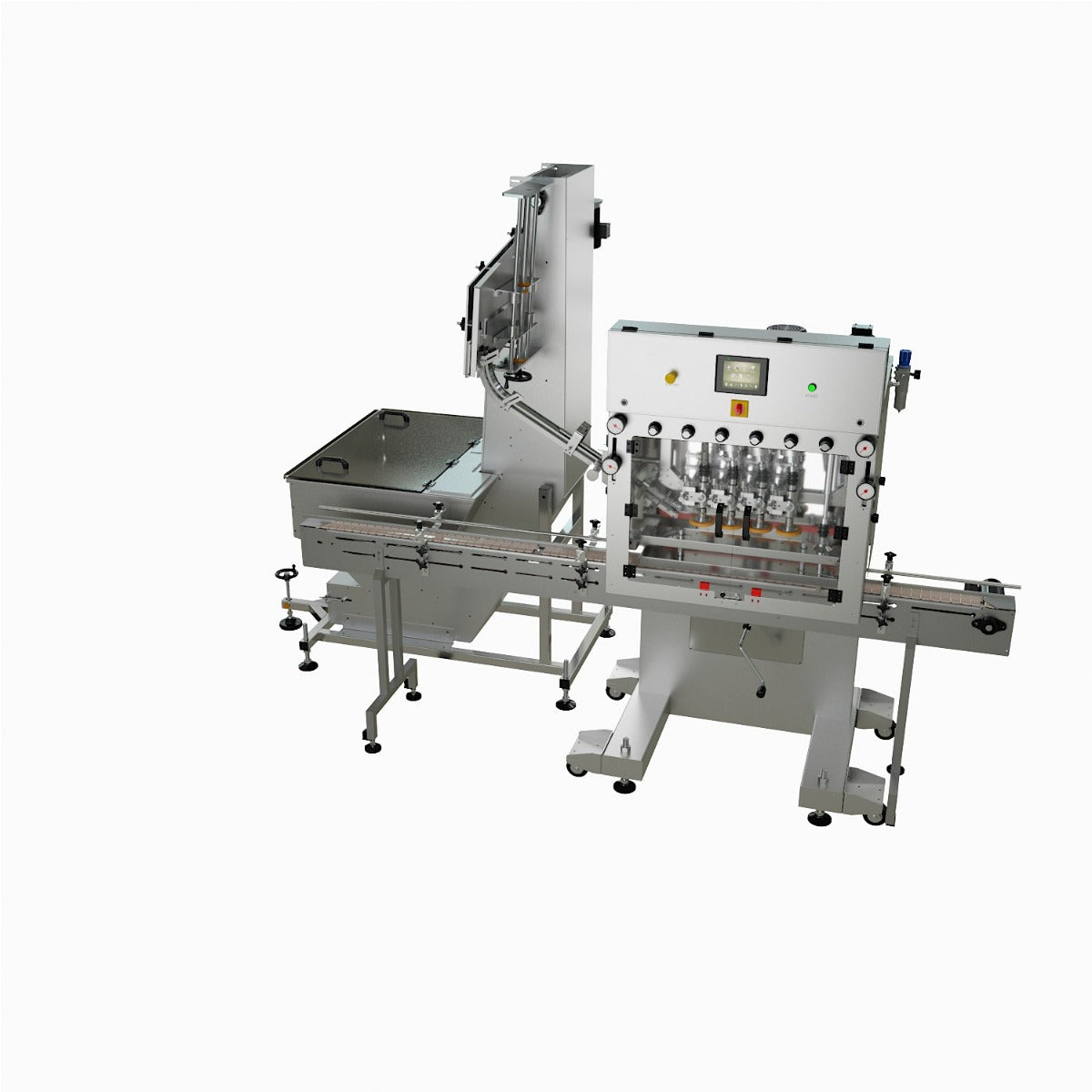

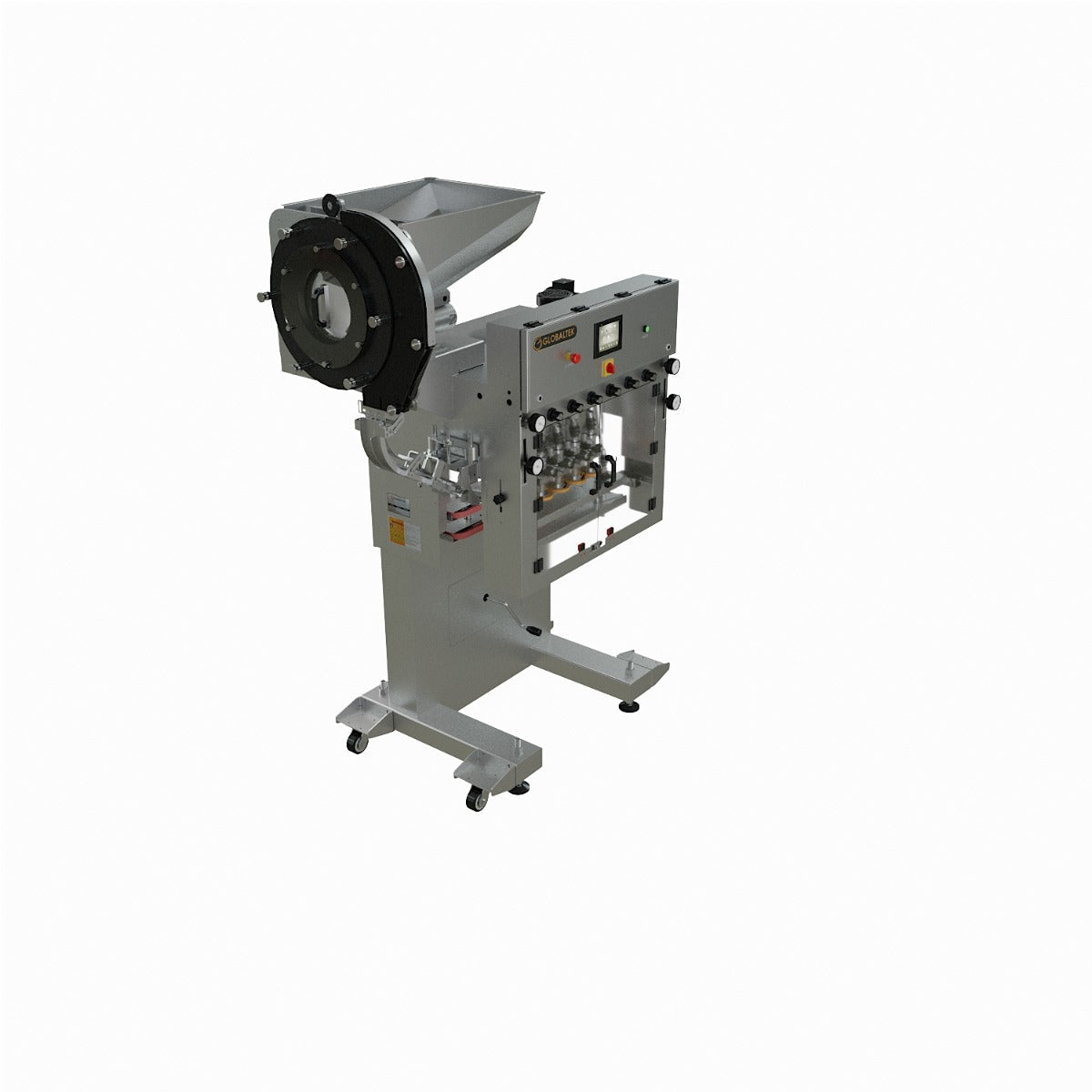

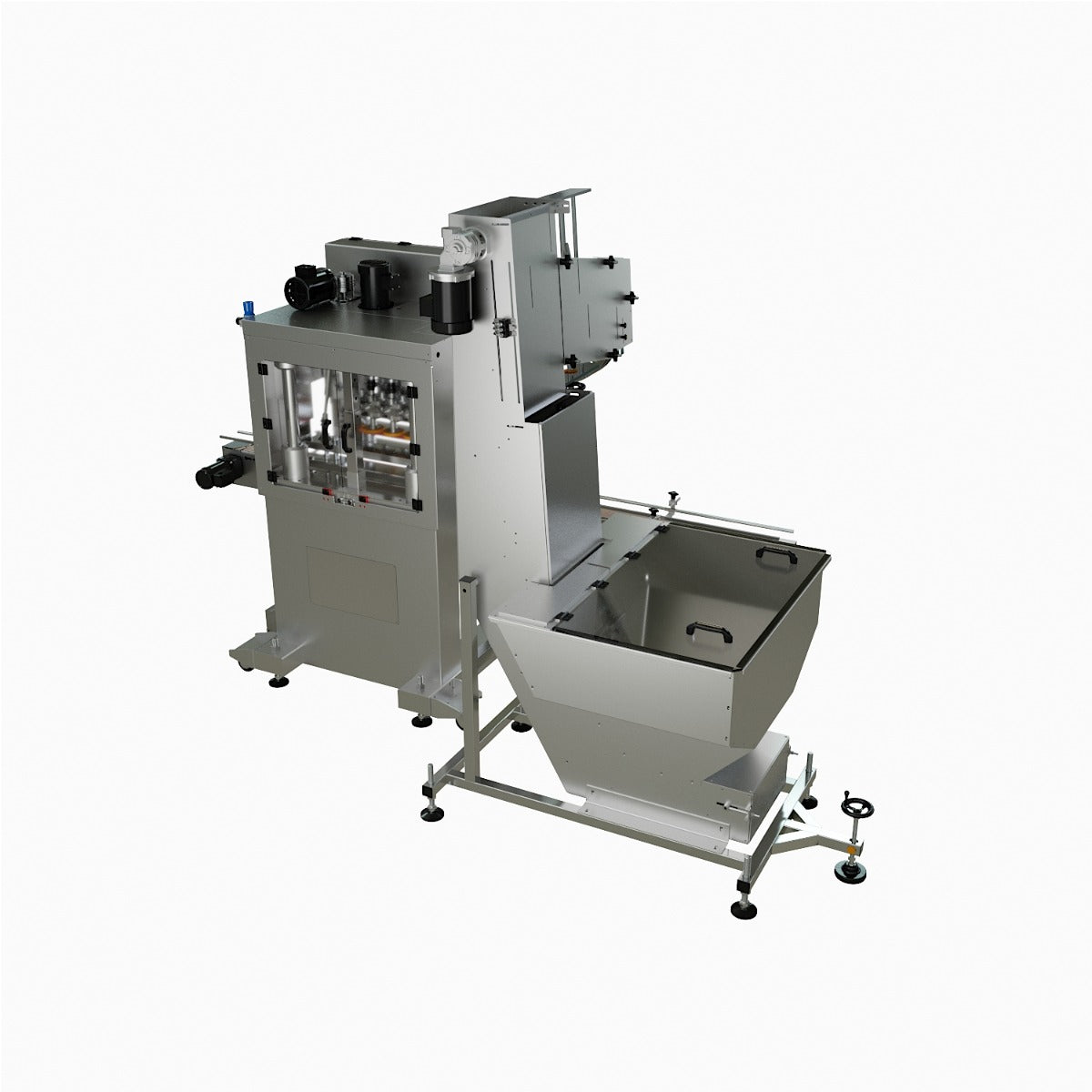

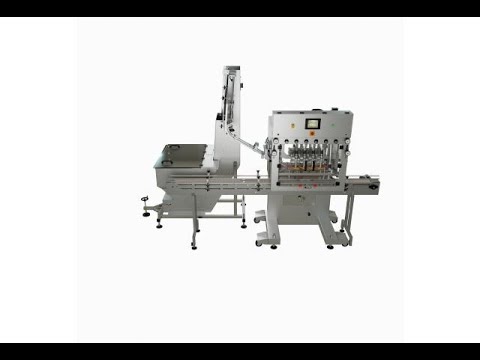

CE-CAP Cap-It Automatic Spindle Capper

Enhance the efficiency and reliability of your packaging line with the Cap-It Automatic Inline Spindle Capper for screw-on closures. Equipped with multiple spindles and adjustable pneumatic torque control, it easily adapts to various container sizes and cap types through quick changeovers, ensuring consistent and precise closures every time. The intuitive HMI touchscreen provides extensive functionality, including proprietary preventative maintenance reminders, promoting machine longevity and operator safety.

• Robust (7ga) 304 stainless steel welded C frame
• Heavy-duty leveling pads and casters
• PLC with full color 7” HMI touch screen
• Stored operational settings as recipes for each cap and container
• First capping spindles can rotate in either forward or reverse direction
• Each spindle is equipped with a readily adjustable torque clutch
• Spring-loaded spindles for improved cap grip and reduced disc wear
• Each spindle height is individually adjustable
• Side gripper belts with tilting capabilities for tapered bottles
• Safety switches on all doors
• Height adjustability for containers up to 14 inches tall.

Capping Speed: Up to 200 bottles per minute

Cap Size: Cap sizes from 58 mm-120 mm

Power Supply: 120V/1 PH/60 HZ/15 AMPS

Air Supply: 90 PSI at 5 CFM

Dimensions: Machine Footprint: 126.1" L x 68.6" W x 95.6" H
