CE-ERX-15 Automatic Case Erector

CE-ERX-15 Automatic Case Erector

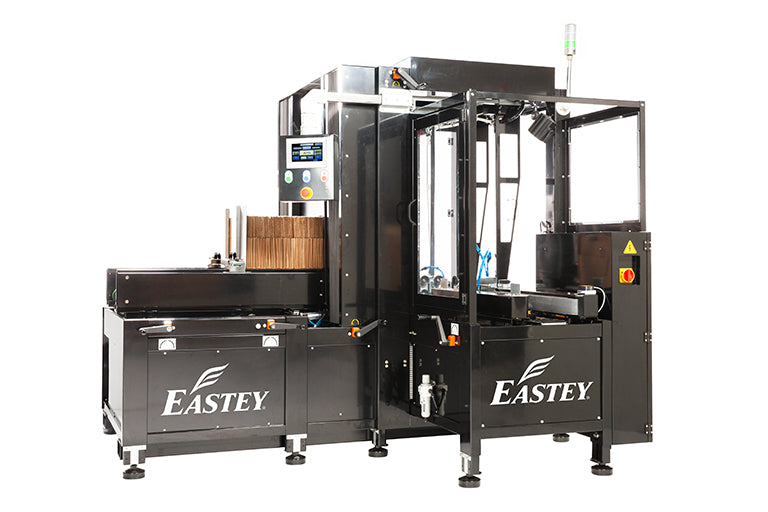

The CE-ERX-15 Automatic Case Erector automatically erects and bottom-seals corrugated RSC cases at rates up to 15 cases per minute — making it an ideal replacement for manual case forming on high-volume packaging lines.

Key Benefits

• High-speed output: Up to 15 cases per minute for maximum throughput
• Single-operator efficiency: One person can form, seal, and pack cases continuously
• Large magazine capacity: Load up to 200 cases at a time to minimize downtime
• Tool-free changeover: Switch case sizes in minutes using hand-tighten knobs and cranks — no tools required
• Wide case range: Handles cases from 7"(L)x5"(W)x5"(H) up to 19.5"(L)x15.5"(W)x19.5"(H)
• Reliable bottom sealing: Eight vacuum suction cups hold each case square while stationary flap bars fold minor and major bottom flaps before sealing

How It Works

Load blank cases into the 200-case magazine hopper and select run or jog mode. Separators release the leading blank, where eight vacuum suction cups hold it in a properly formed square position. Stationary flap folding bars fold both minor and major bottom flaps, then the case transitions to the sealing station for a secure bottom seal — ready for packing.

Flexible & Easy to Operate

The CE-ERX-15's versatile design allows on-the-fly adjustments without tools. Its heavy-duty steel construction ensures long-term durability in demanding production environments. With simple controls and fast case changeover, this RSC case erector keeps your line running with minimal operator intervention and maintenance.

Specifications

• Speed: Up to 15 cases per minute
• Min Box Size: 7"(L) x 5"(W) x 5"(H)
• Max Box Size: 19.5"(L) x 15.5"(W) x 19.5"(H)
• Magazine Capacity: 150–200 cases
• Power Supply: 110V / 60Hz
• Air Supply: 12 CFM @ 80 PSI
• Machine Dimensions: 94.3"(L) x 82"(W) x 82.8"(H)
• Construction: Heavy-duty steel
• Warranty: 1-Year Limited Parts Warranty
