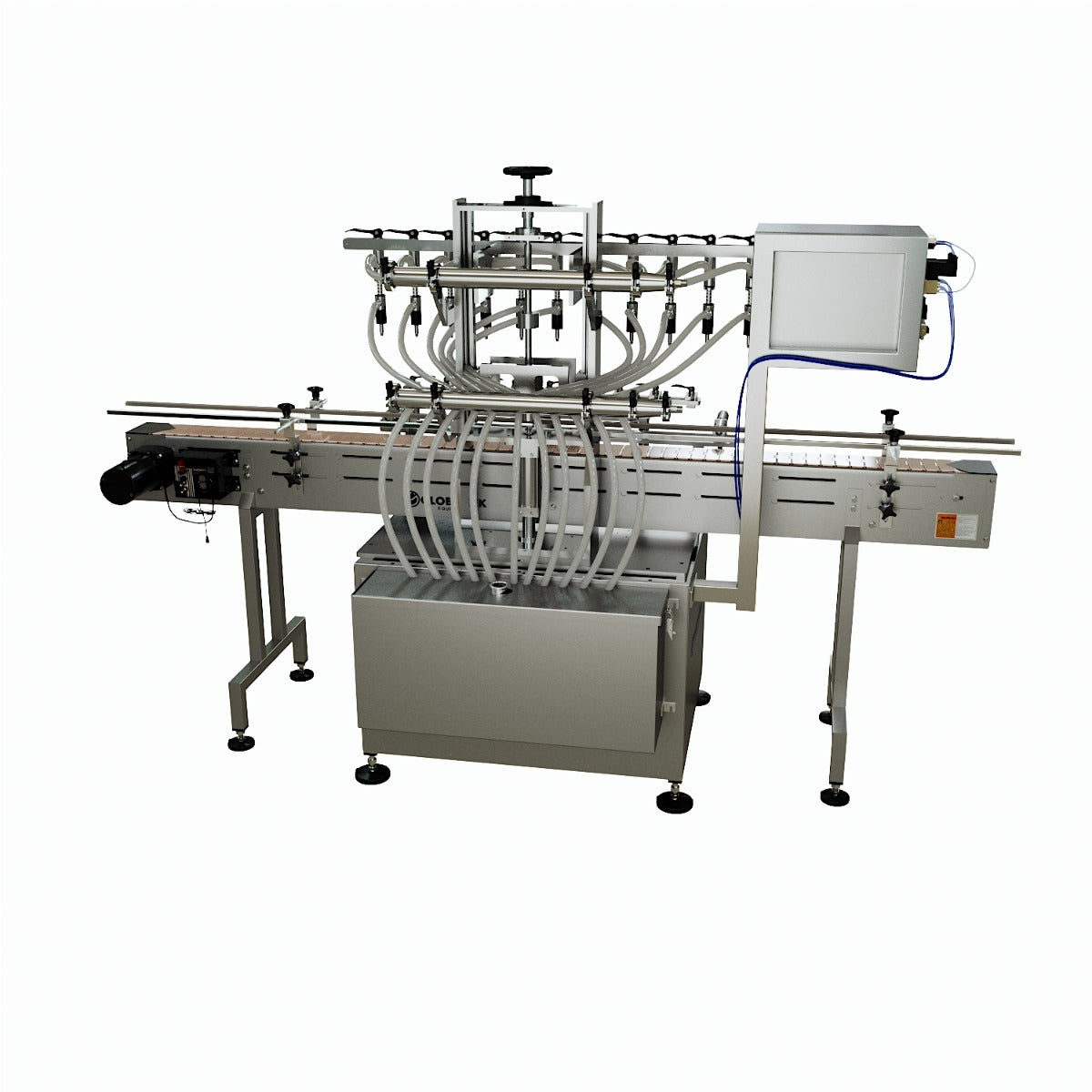

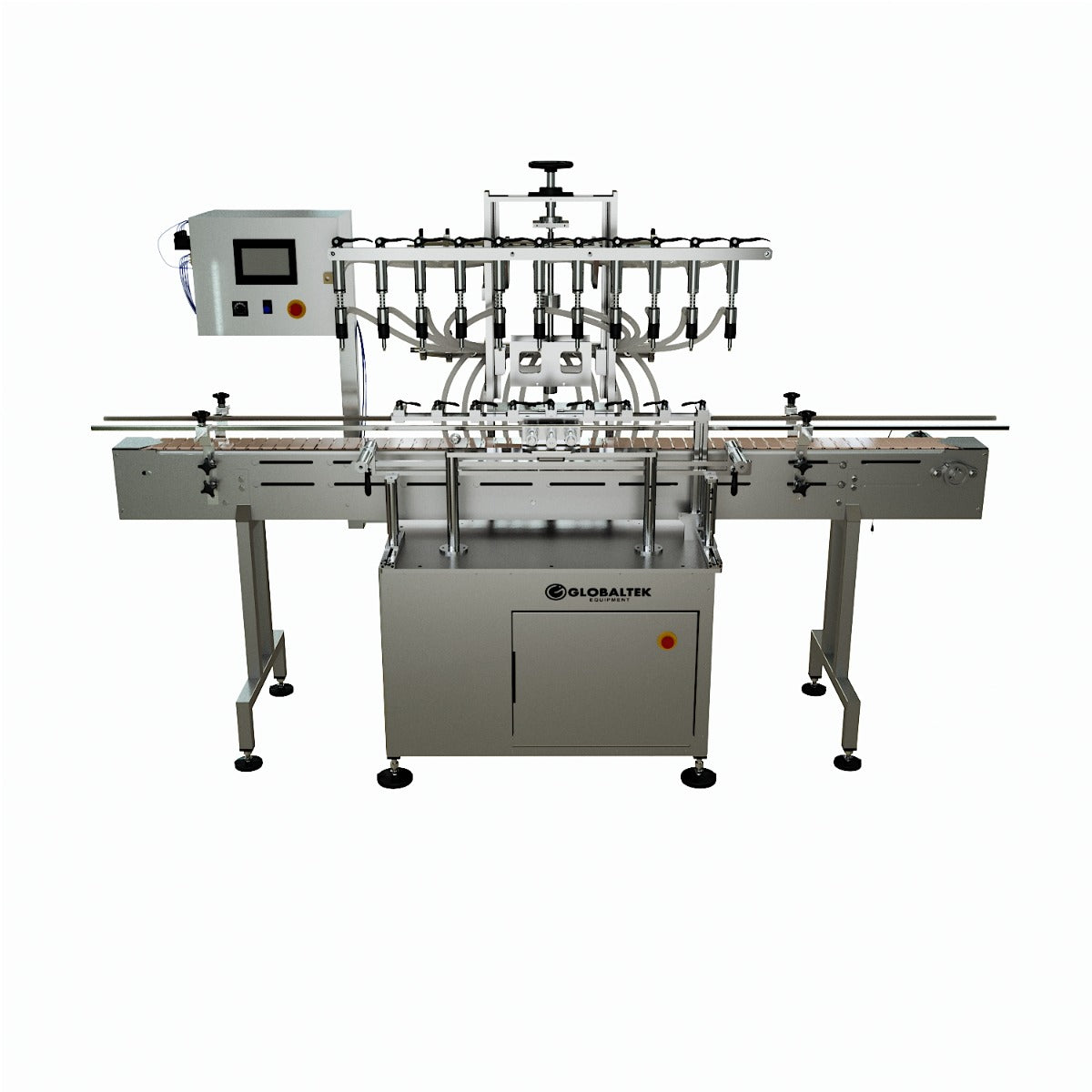

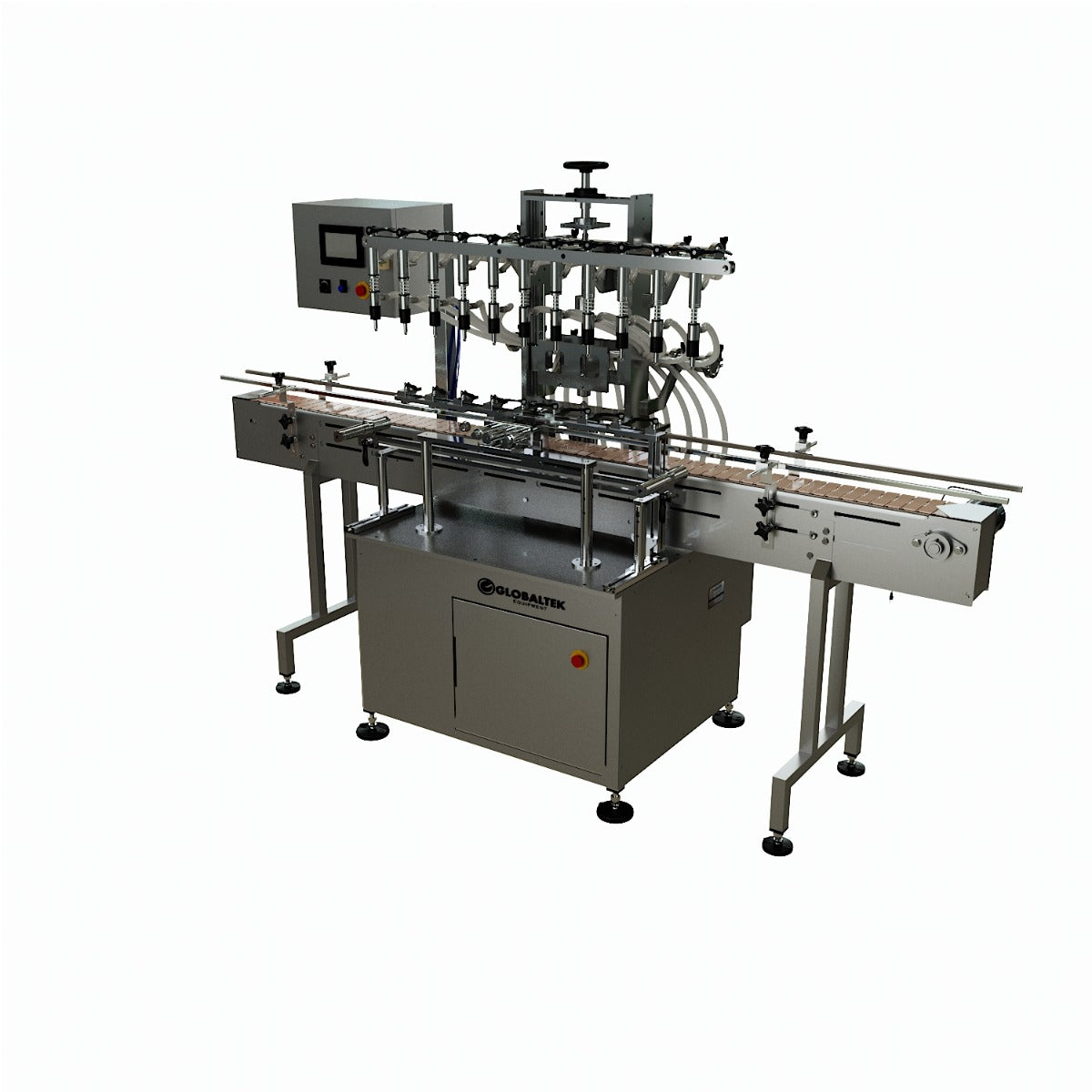

CE-FIL-OF11 In-Line Automatic Pressure Overflow Filler*

Machine comes with a 1 year limited part warranty and tech support.

The CE-FIL-OF11 is an in-line automatic pressure overflow filler that fills every bottle to the same level, regardless of the interior volume of the individual containers. Overflow nozzles feed product into each container and return the excess to the holding tank once the liquid reaches the set fill level, so every bottle leaves the machine with a consistent fill line. PLC-controlled indexing runs continuous filling cycles without an operator for each cycle.

Overflow filling is the preferred method when containers differ in interior volume but must show the same fill level, a common requirement for retail-ready liquids. During each cycle the entry gate closes, containers are sensed in the filling zone, the nozzles dispense for the set fill time, and the discharge gate ejects the filled containers automatically.

Features

• Standard with 6 nozzles, expandable up to 16 nozzles. Please call for more details.
• 304 stainless steel and anodized aluminum heavy duty frame fully enclosed with stainless steel panels.
• 20 gallon stainless steel covered overflow tank with level sensor and sanitary fittings.
• 304 stainless steel feeding 3A certified manifold with clear PVC hoses.
• Variable speed control for the conveyor; pump speed, acceleration, and deceleration are controlled by a frequency drive.
• Automatic drip tray.
• Automatic tool-less neck guides included as standard to prevent spillage.
• Automatic tool-less bottle indexing gates to control container travel at entry and exit.
• Tool-less nozzle mount adjustment (0 to 4 inches).
• No bottle / no fill sensor, plus an optional bottle count mode that ejects any container inside the filling area before the first cycle.
• Batch bottle counter records the number of filling cycles completed.
• Sensor for downstream back pressure.
• Includes centrifugal pump: 96 gallons per minute, 1 HP / 3 phase, 316 stainless steel construction.
• Linear guide with linear bearings for ease when moving the nozzle mount; nozzles move up and down with a pneumatic 4-inch stroke cylinder.
• Hand wheel bottle height adjustment (1 to 16 inches high).
• Air filter-regulator included.
• Mounted on four heavy duty threaded leveling pads; machine height adjusts from 35 to 40 inches.
• Optional electric bottle height adjustment.
• Made in USA.

Changeover and Operation

All changeover adjustments are made by hand: conveyor guide rails, indexing gates, neck guides, and nozzle positions slide and lock without tools. Nozzles align with the center of each container's neck and are positioned about 1/4 inch above the neck using the handwheel on the rear of the machine; lowering the nozzles increases the fill volume and raising them reduces it, because fill volume is set by fill time and nozzle position.

The touch screen controller stores up to 16 recipes, each with up to 100 filling-cycle parameters for recall, and password-protected user levels (Operator, Maintenance, and Administrator) guard restricted functions.

Technical Data

• Electrical: 208–230 VAC, 3 phase, 15 amps
• Air: 5 CFM at 80 PSI, 3/4-inch pipe connection; requires clean, dry air
• PLC control with 7-inch touch screen HMI; up to 16 recipes with up to 100 filling-cycle parameters
• No bottle / no fill sensor and batch bottle counter
• Downstream back pressure sensor
• Centrifugal pump: 96 gallons per minute, 1 HP / 3 phase, 316 stainless steel construction
• Linear guide with linear bearings; pneumatic 4-inch stroke nozzle dive cylinder
• Hand wheel bottle height adjustment (1 to 16 inches high)
• Air filter-regulator included
• Machine height: adjustable 35 to 40 inches on threaded leveling feet

Installation and Care

Optional paid installation includes set-up and installation assistance to get the system up and running smoothly. The stainless steel frame cleans easily with nearly any solvent, and the operation guide includes daily and weekly maintenance checklists plus a troubleshooting guide for filling accuracy and nozzle drip.

This machine is not designed or intended for use in hazardous locations as defined by ATEX or the National Electrical Code, and it requires clean, dry compressed air.
