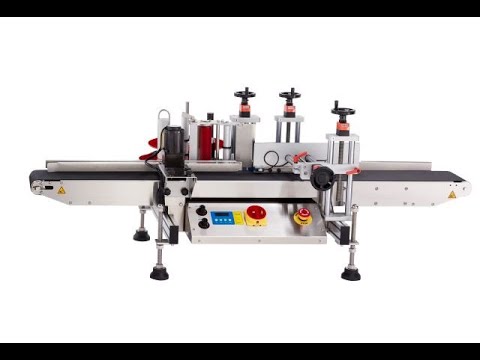

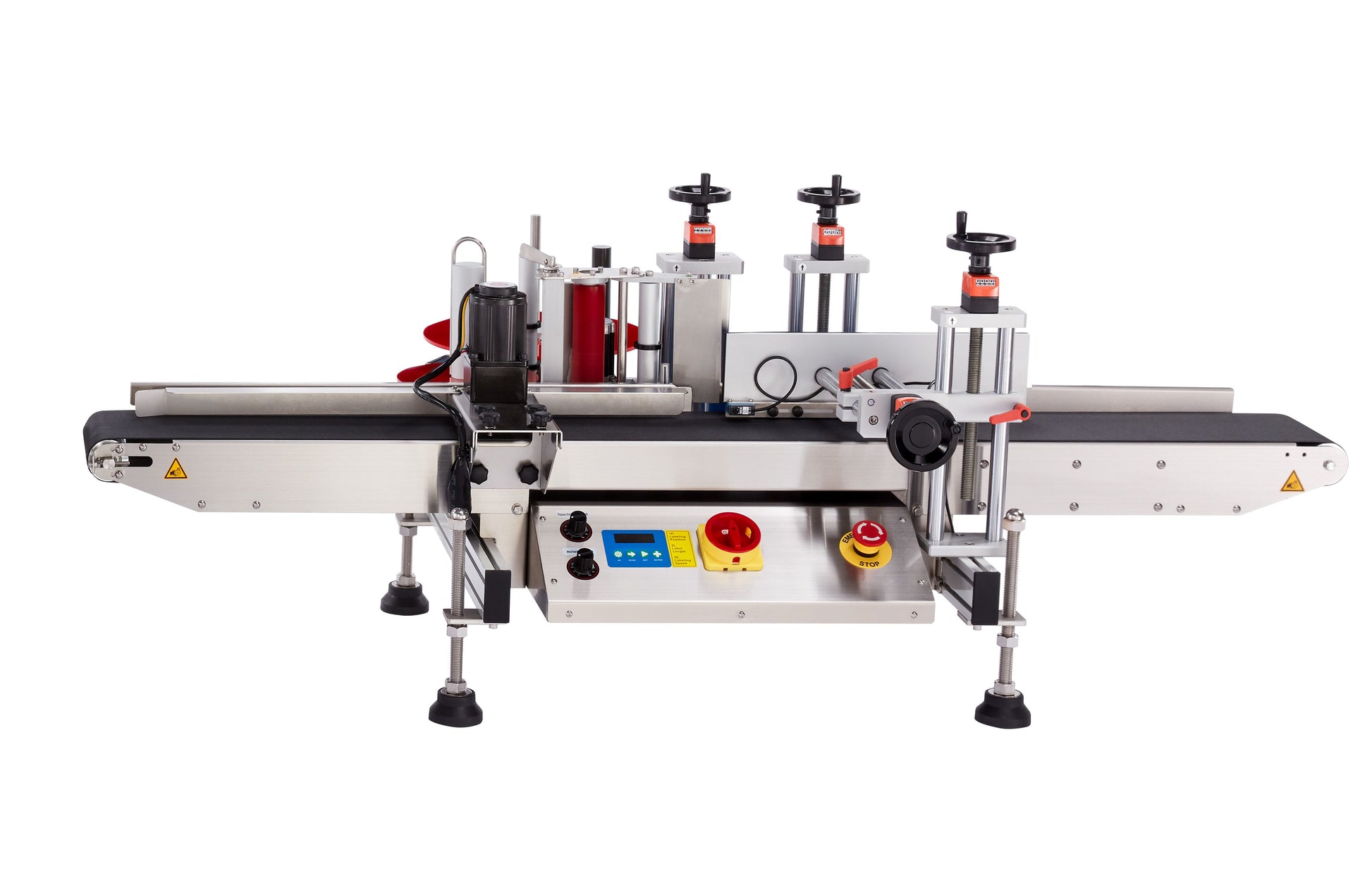

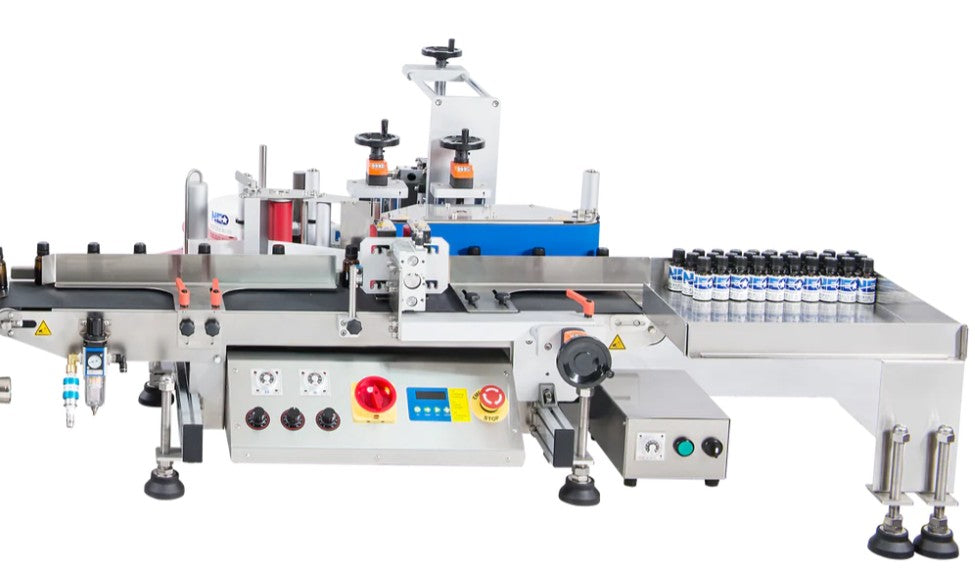

CE-NLR1100 Automatic Tabletop Round Bottle Labeler*

Machine comes with a 1 year limited part warranty and tech support.

The CE-NLR1100 Automatic Tabletop Round Bottle Labeler with Bottle Indexer applies wrap-around labels to upright round bottles. It is an automatic labeler that can work independently as a standalone labeling station or as part of a bottle filling line. Its conveyor, bottle detector, bottle indexer, and wrap station handle the labeling process once bottles are presented to the machine.

Standalone labeling or bottle filling line integration

Use the CE-NLR1100 by itself on a suitable workbench for a dedicated labeling operation, with bottles supplied to its conveyor and collected after labeling. You do not need a bottle filling machine to use it as a standalone labeler.

For an integrated packaging workflow, the CE-NLR1100 can also serve as the automatic labeling station in a bottle filling line. Match conveyor transfer height, bottle spacing, container stability, and operating speed to the adjoining equipment. Standalone capability does not mean unattended bottle loading or collection; bottle handling depends on the surrounding setup.

How automatic round bottle labeling works

Bottles travel upright on the conveyor. The bottle detector senses an arriving container and triggers label application, while the bottle indexer supports product spacing. The wrap station rotates the bottle and presses the label around its surface. Adjustable conveyor and labeling speeds help match the machine to the container and label.

• Automatic labeling: bottle detection triggers application without a separate manual trigger for each bottle.
• Flexible installation: run as a standalone tabletop machine or integrate into a bottle filling line.
• Wrap-around application: the wrap station helps adhere the label around a round container.
• Adjustable setup: labeling height and angle, conveyor speed, and labeling speed can be adjusted for the application.
• Controls: microprocessor control with LED display and emergency-stop button.
• Construction: stainless steel and aluminum alloy.

CE-NLR1100 specifications

• Machine type: automatic tabletop round bottle labeler with bottle indexer
• Operating configurations: standalone labeling station or integrated bottle filling line
• Labeling speed: 20–60 bottles per minute, depending on container and label size
• Bottle diameter: 16–90 mm (approximately 0.63–3.54 inches)
• Listed bottle-base labeling height range: 30–160 mm (approximately 1.18–6.29 inches)
• Label width, top to bottom: 10–100 mm (approximately 0.39–3.93 inches)
• Label length, wrap-around direction: 20–300 mm (approximately 0.79–11.81 inches)
• Label roll core: nominal 3 inches (75 mm)
• Maximum label roll outside diameter: nominal 12 inches (300 mm)
• Label placement accuracy: ±1 mm
• Electrical requirements: 110 V
• Machine dimensions: 65 inches L x 36 inches W x 24 inches H

Label stock and clear-label requirements

Use non-perforated labels with approximately 1/8-inch gaps between labels on the specified core. Avoid clear backing. Testing is preferred for all label stock and required for all clear labels; a clear label sensor kit may be required. Review the downloadable label requirements before ordering printed rolls.

For application assistance, provide bottle diameter, bottle-base labeling dimensions, label size and material, target production rate, and whether the machine will run standalone or connect to a filling line. These details help match bottle handling and label setup to your process.
