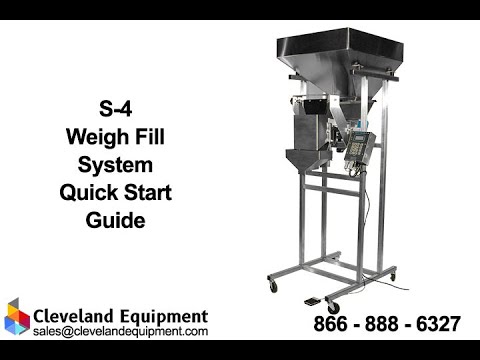

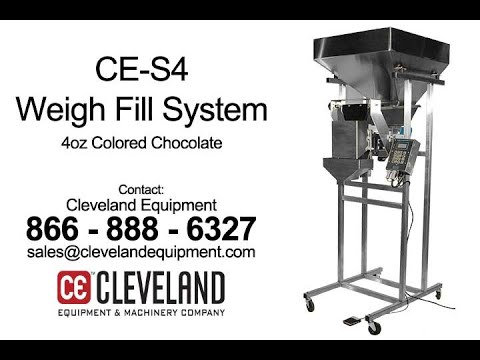

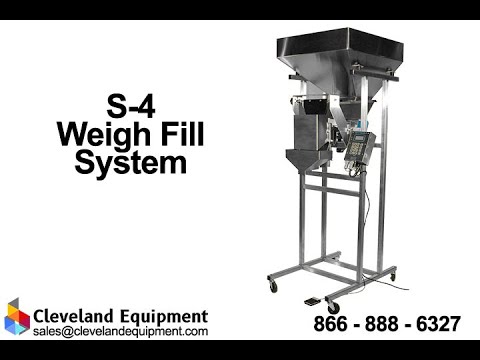

CE-S4 Vibratory Weigh Filler System*

1-Year Limited Parts Warranty + Technical Support: This machine comes with a 1-year limited parts warranty and technical support.

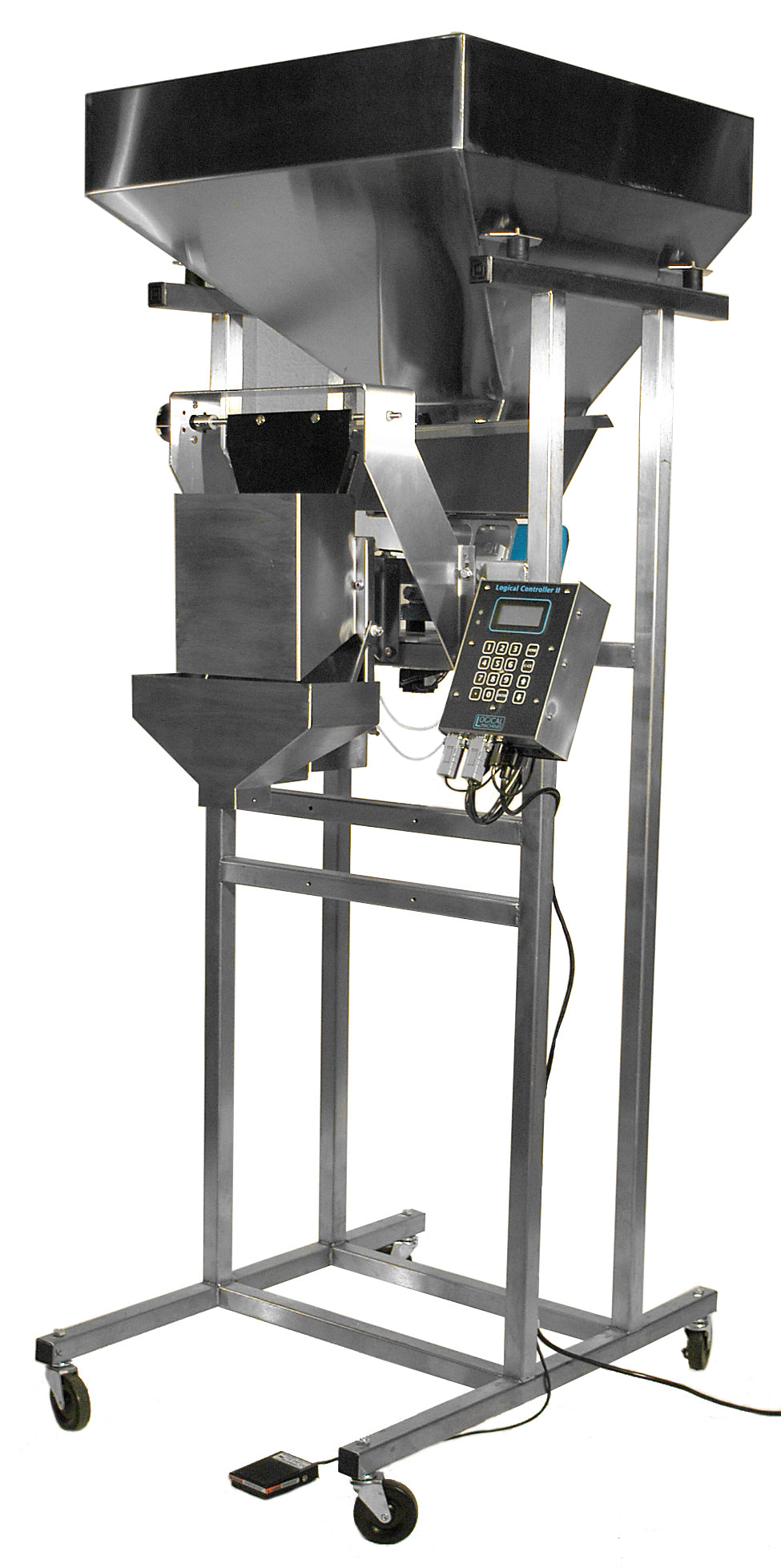

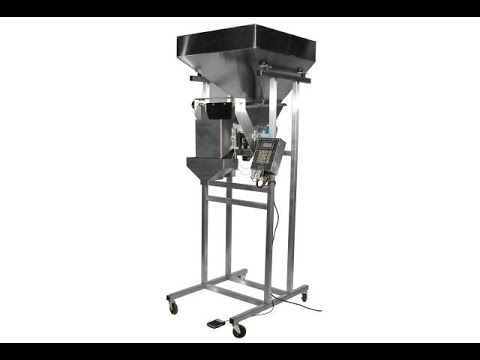

The CE-S4 vibratory weigh filler system automates accurate dry bulk filling into bags and rigid containers. Product moves from the supply hopper across a vibrating feed pan into the weigh hopper, where the controller manages the fill cycle and helps you repeat saved jobs with less manual scooping.

Built for flexible dry bulk filling

Use the CE-S4 for products ranging from powders and granules to larger free-flowing parts. Common applications include coffee, rice, beans, lentils, popcorn, nuts, seeds, pet treats, beads, soap powder, dry bulk chemicals, and similar products. Final performance depends on product characteristics, target weight, container, and setup.

Automatic or operator-controlled filling

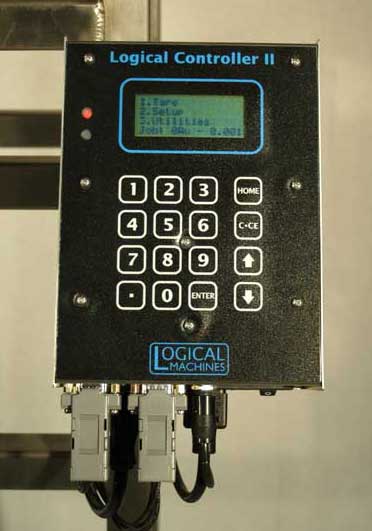

• Automatic mode: Enter the target weight and let the controller learn the product flow, then adjust bulk and dribble parameters for the fill cycle.
• User mode: Set bulk speed, bulk cutoff, dribble speed, dribble cutoff, target weight, and gate timing for hands-on process control.
• Repeatable operation: Save and reload job parameters for different products or container weights, then start each cycle with the footswitch.

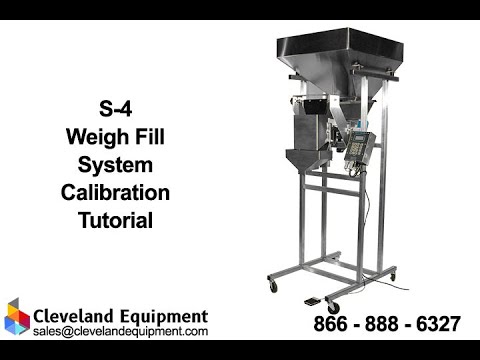

• Calibration and tare functions: Zero the scale, verify a known weight, and recalibrate as needed for dependable weighing.

Key benefits

• Reads weight to 1 gram or 0.001 lb.
• Controller range up to 10 lb, with practical fill range varying by product volume and configuration.
• Supply hopper capacity of approximately 3.5 cubic feet.
• Self-adjusting bulk and dribble speed control in Automatic mode.
• Automatic tare adjustment and a footswitch-controlled fill and dump cycle.
• Stainless steel product-contact surfaces with a powder-coated chassis. Stainless chassis is available as an option.
• Optional dribble gate and bagger integration features, when configured for the application.
• Approximate output of 600-800 fills per hour, depending on product and target weight.

Specifications

• Type: Single-head vibratory weigh filler
• Fill range: Approximately 0.5 oz to 5 lb by product volume; controller range up to 10 lb
• Hopper: Approximately 3.5 cu. ft. capacity, 24 in. x 24 in. supply hopper
• Accuracy display: 1 gram or 0.001 lb resolution
• Power: 120V / 60Hz standard; 240V / 50Hz option
• Compressed air: Factory regulator setting of approximately 25-30 psi; listing specifies less than 0.25 cfm at 30 psi
• Footprint: Approximately 4.6 sq. ft.; approximately 67 in. high
• Container compatibility: Bags and rigid containers

For best results, adjust one setting at a time, keep product flow consistent, and recalibrate periodically or whenever fill accuracy changes. Review the supplied manual for setup, operation, calibration, cleaning, and application guidance.
