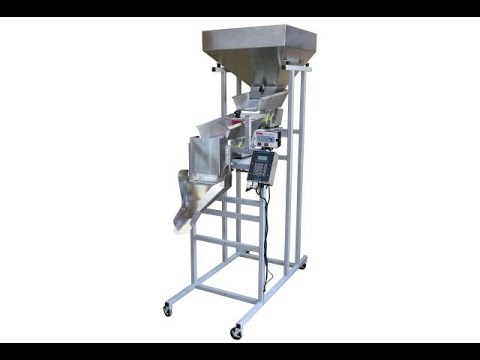

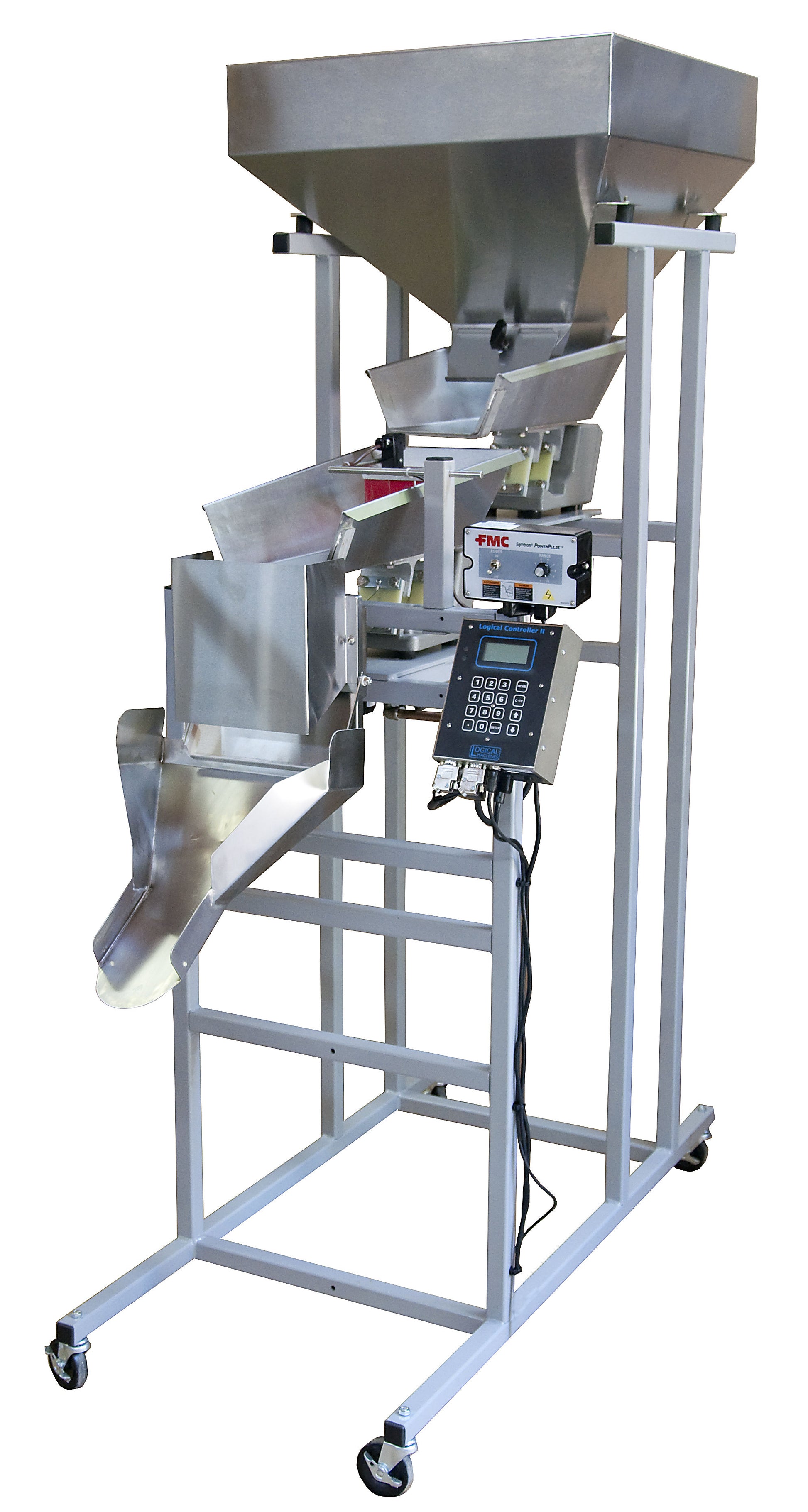

CE-S6 Cascading Vibratory Linear Weigh Filler*

Machine comes with a 1 year limited part warranty and tech support.

The CE-S6 cascading vibratory linear weigh filler is built for difficult-to-run dry bulk products that can bridge, clump, or move inconsistently through a standard feeder. Its two-stage cascading design uses an upper feed pan and lower feed pan to regulate product depth before the weigh hopper, helping operators produce more consistent fills.

Designed for non-free-flowing products

The CE-S6 is a strong fit for crackers, chips, dog treats, and similar products that need gentler, more controlled movement. Product travels from the large stainless steel supply hopper through the upper vibrating pan, into the lower vibrating pan, and then into the weigh hopper for measurement before discharge into the container.

Two-stage feed control for steadier product flow

• Cascading feed path: The upper and lower feed pans work in sequence to move product toward the weigh hopper instead of relying on a single feed surface.
• Product-level sensing brush: The adjustable brush helps regulate product depth in the lower pan for a more even flow.
• Power Pulse Box: The separate power control adjusts upper-vibrator intensity to help tune flow for the product.
• Operator-controlled User mode: Set bulk speed, bulk cutoff, dribble speed, dribble cutoff, target weight, check limits, settle time, and drop-gate timing for the application.
• Repeatable jobs: Save and reload job parameters for different products or fill weights, with saved settings retained when power is removed.
• Tare and calibration: Zero the weigh hopper, verify a known weight, and recalibrate when needed. Auto-tare is available through the controller settings when configured for the process.

Built for flexible packaging operations

• Fill bags, pouches, cartons, and other containers through the discharge chute.
• Custom discharge chutes can be built for compatible applications.
• Footswitch starts, pauses, resumes, and advances the fill cycle.
• Large stainless steel supply hopper provides approximately 3.5 cubic feet of product capacity.
• Two supply hopper gate sizes help operators tune product flow.
• Optional dribble gate restricts flow during the final dribble stage.
• Bagger or conveyor integration can be configured for compatible applications.
• All product-contact surfaces are stainless steel.

Typical applications

Use the CE-S6 for non-free-flowing or challenging dry bulk products such as crackers, chips, dog treats, snack pieces, irregular granules, and similar materials that benefit from controlled cascading feed. Actual performance depends on product shape, density, flow behavior, target weight, container, and setup.

Specifications

• Machine type: Single-head cascading vibratory linear weigh filler
• Operating mode: User mode with operator-set fill parameters
• Fill range: Approximately 0.5 oz to 10 lb, depending on product and configuration
• Output: Up to 600-800 fills per hour, depending on product and target weight
• Hopper: Approximately 3.5 cu. ft.; approximately 24 in. x 24 in.
• Weight resolution: Reads to 1 gram or 0.001 lb
• Feed system: Upper and lower vibrating feed pans, adjustable product-level sensing brush, and Power Pulse Box
• Power: 120V / 60Hz / 7 amps
• Compressed air: Factory regulator set to approximately 25-30 psi
• Construction: Stainless steel product-contact surfaces

For best results, adjust one setting at a time, keep the lower feed pan at a consistent product depth, and run several cycles after each change. Calibrate with a known weight and save the job after setup changes. Review the supplied manual for setup, operation, calibration, cleaning, and troubleshooting guidance.
