CFL200 Tabletop Compact Filling Line

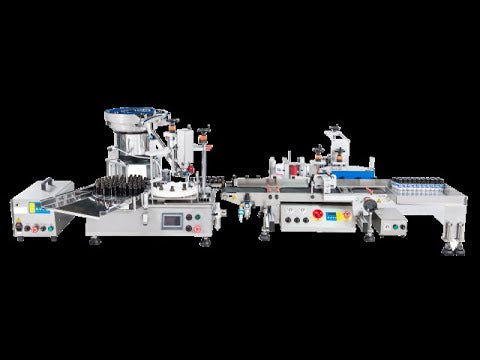

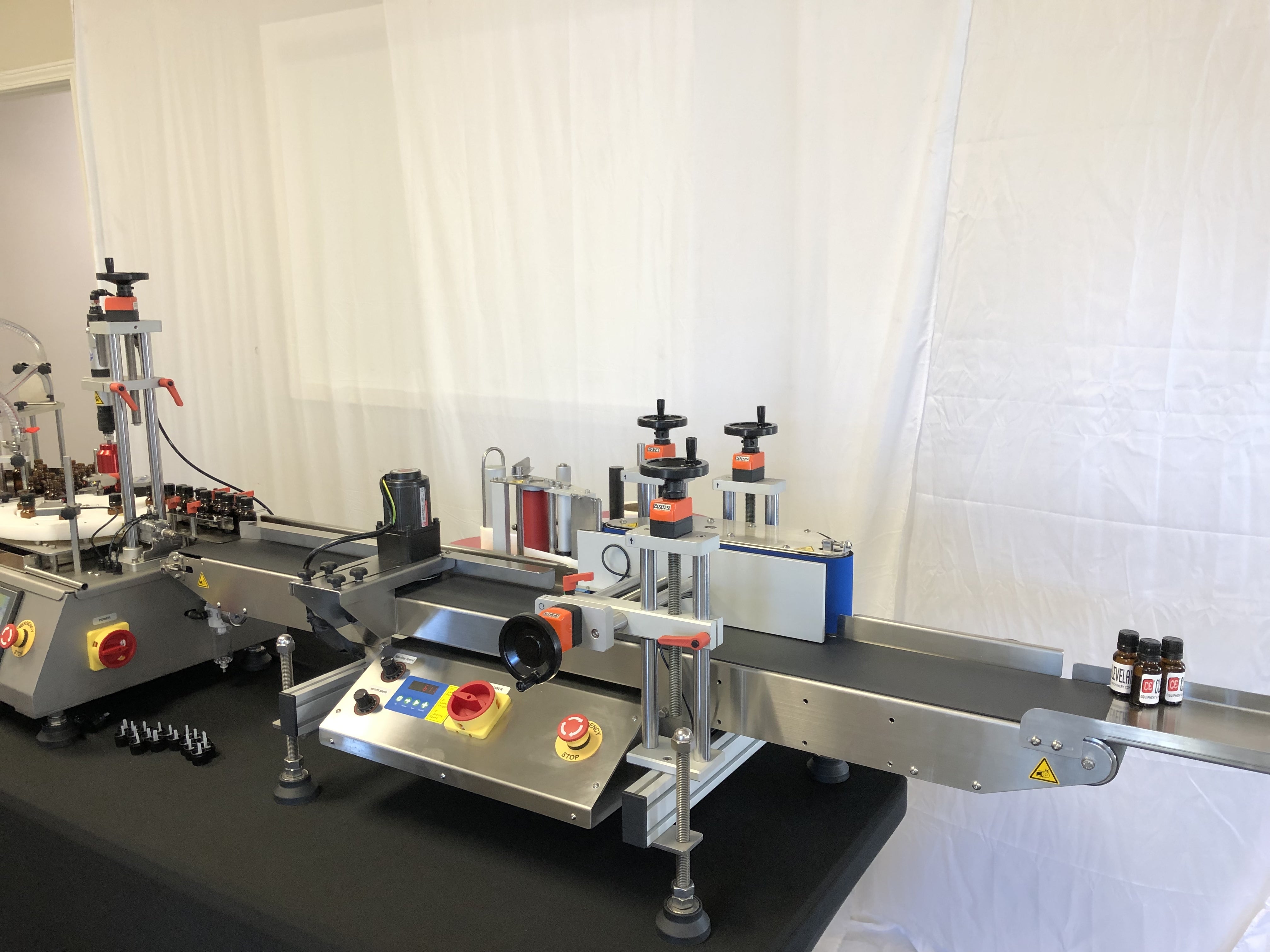

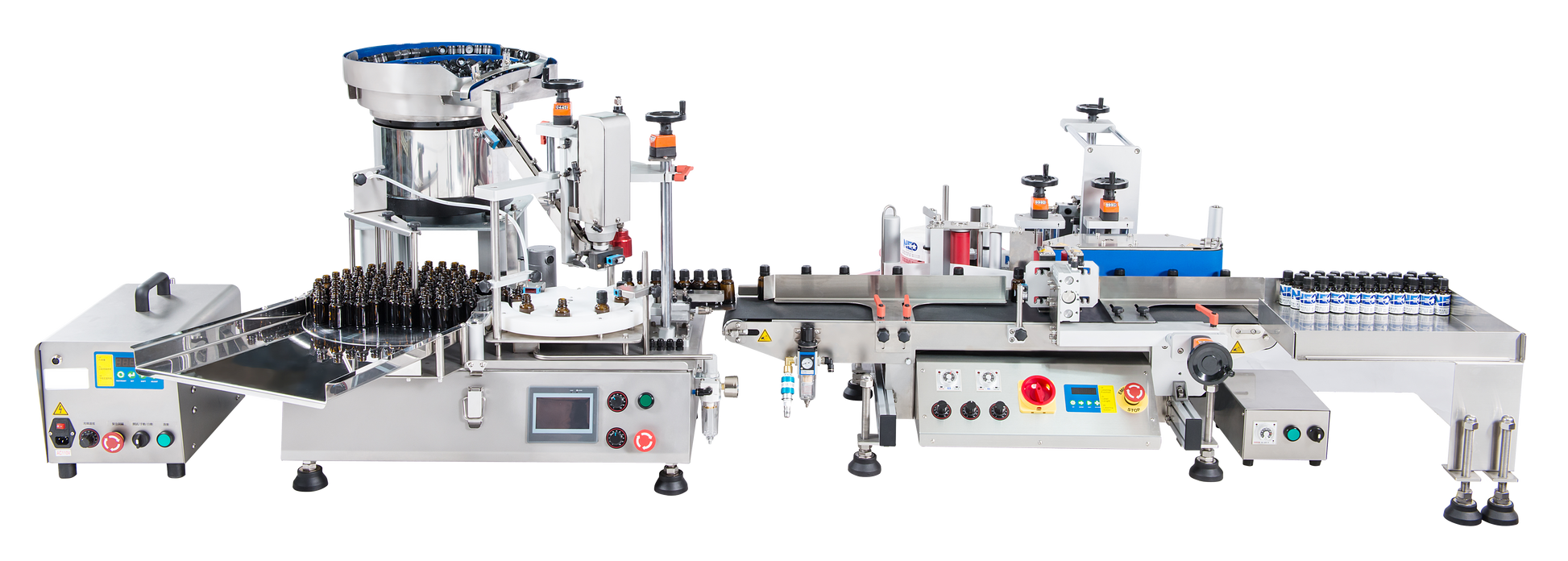

The CFL200 combines bottle feeding, liquid filling, cap torquing, labeling, and product collection in one compact tabletop production line. It is designed for flexible small-scale production of low-viscosity liquids, helping operators manage multiple packaging steps in a space-efficient system.

What the Compact Filling Line Includes

• Feeding Station with 300 mm rotary table
• Tabletop Gear Pump Liquid Filling Machine
• Automatic Cap Torquer, with manual cap placement required; optional automatic cap feeder available
• Advanced Labeling Machine for general round bottles
• Catch tray for finished containers

Performance and Filling Capabilities

• Volume range: 5–4000 ml
• Filling speed: 0–30 bottles per minute maximum, depending on product and operating conditions
• Filling accuracy: ±1%, depending on product

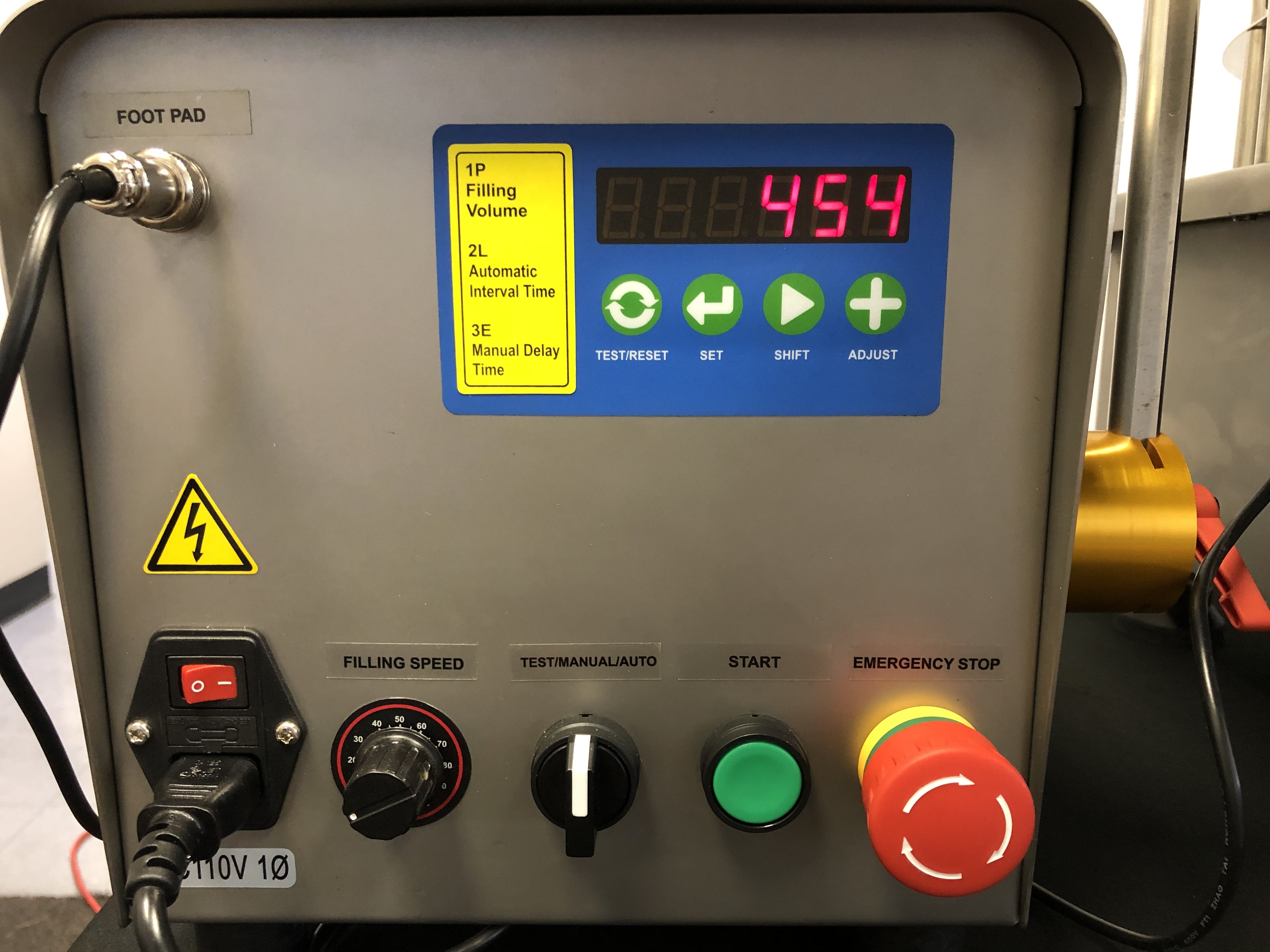

• Filling controls: Adjustable volume, start delay, intermittent-fill span, and filling speed
• No-drip filling nozzle: Helps support cleaner liquid dispensing
• Filling bracket: Supports consistent bottle positioning during filling

Integrated Controls and Safety Features

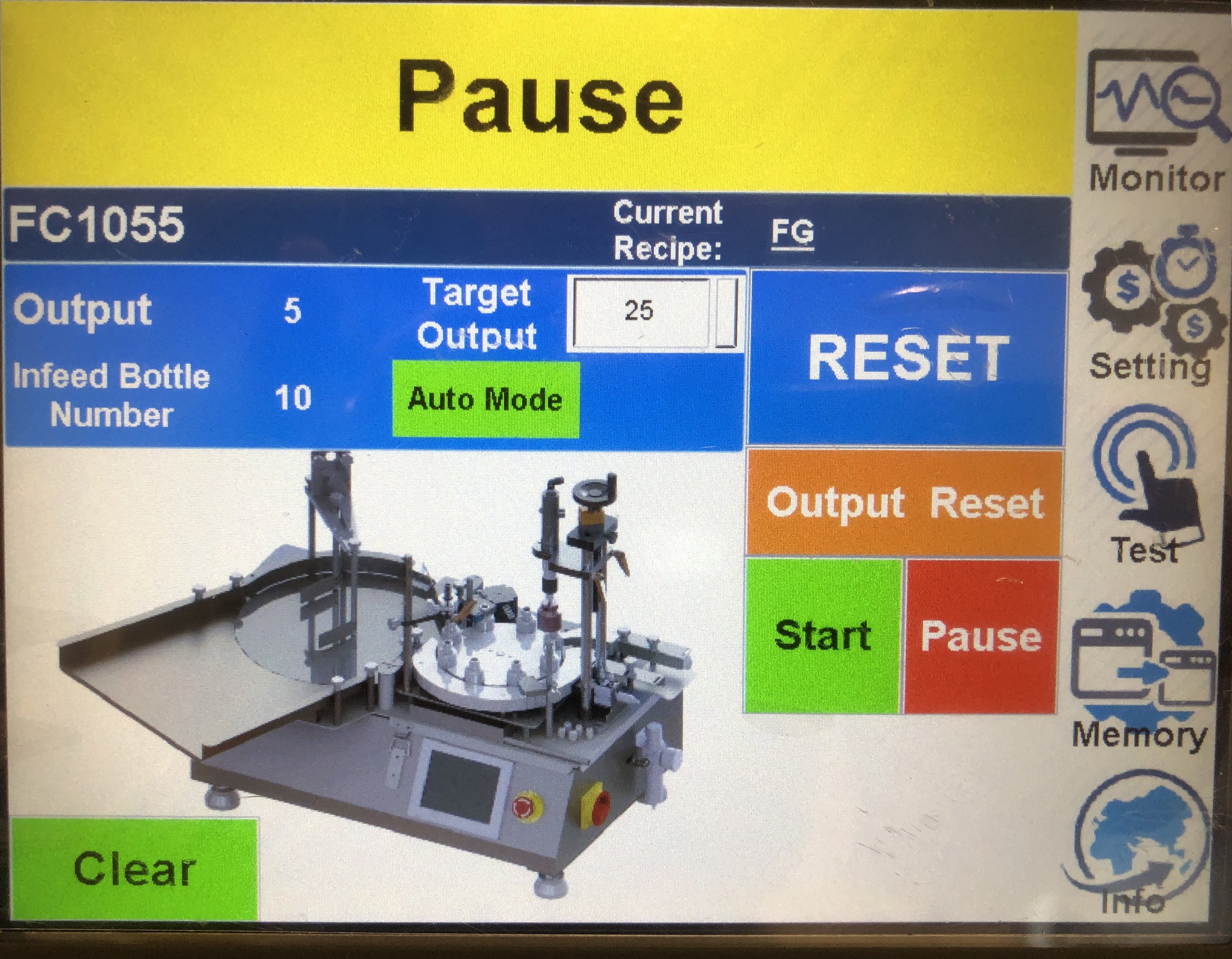

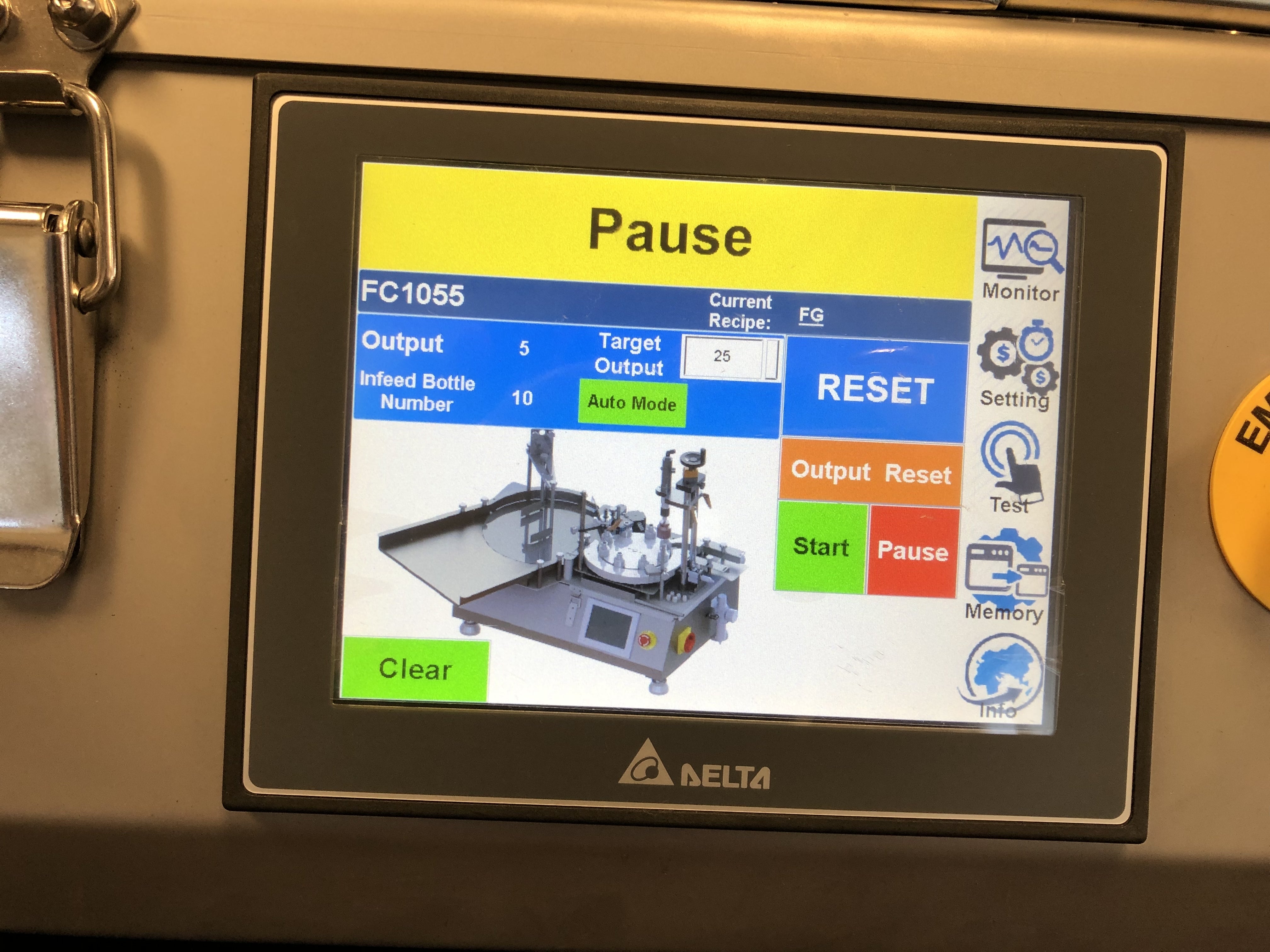

All stations are controlled by a PLC with an HMI color touchscreen. Test, Manual, and Intermittent operating modes can be selected with the mode switch. The detecting system is designed to stop filling when no bottle is present and stop capping when no cap is detected. The system also includes an error alarm, emergency stop button, green start button, and counting system to track filling progress.

Capping and Labeling

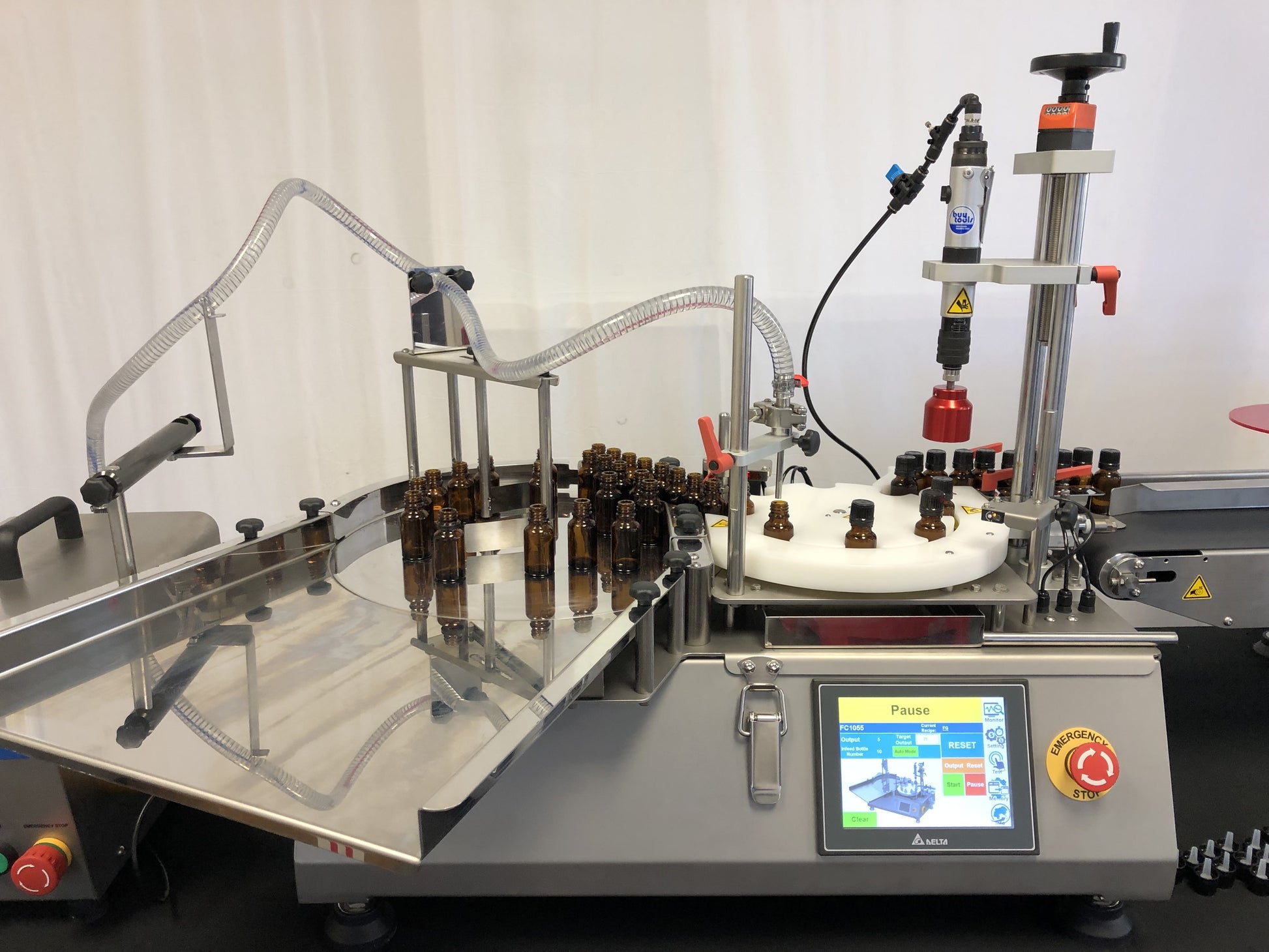

The capping station includes one customized star wheel for precise bottle positioning and one customized capping head for consistent torqueing. The capping head height is adjustable, and an AC motor controls the capper to reach the required torque value for proper tightening.

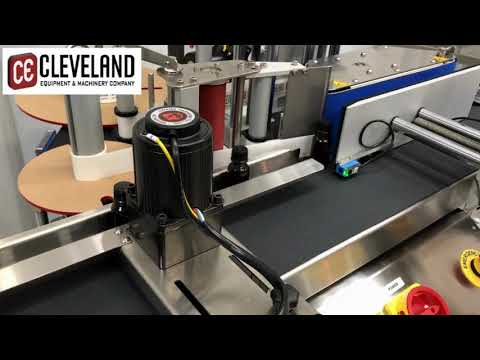

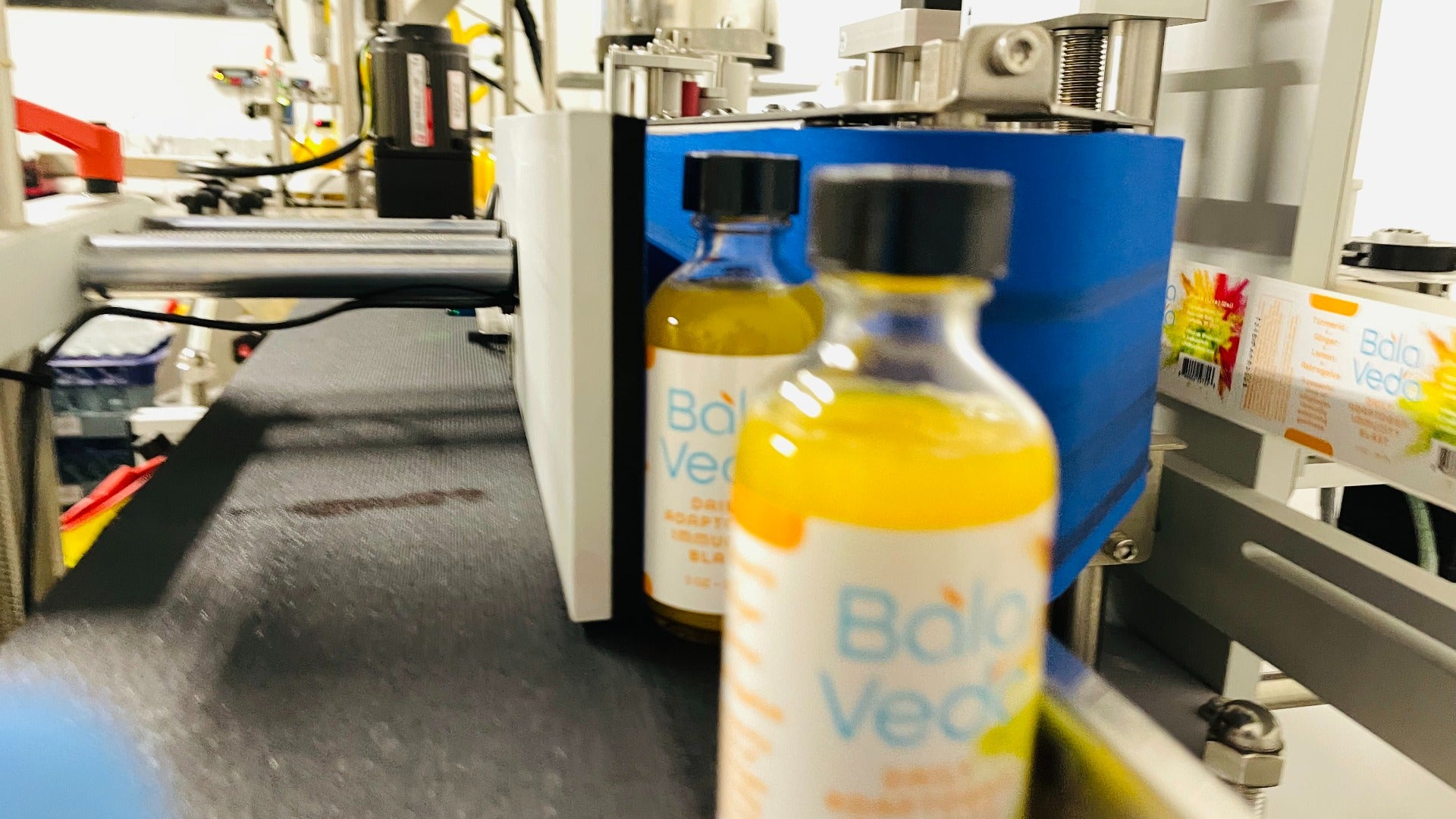

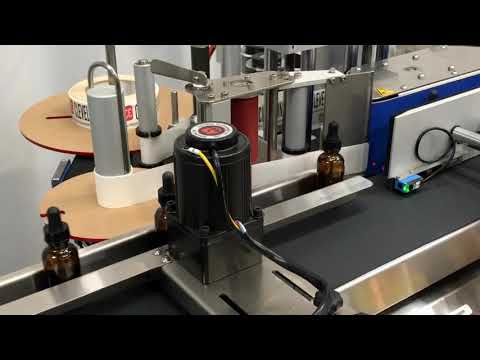

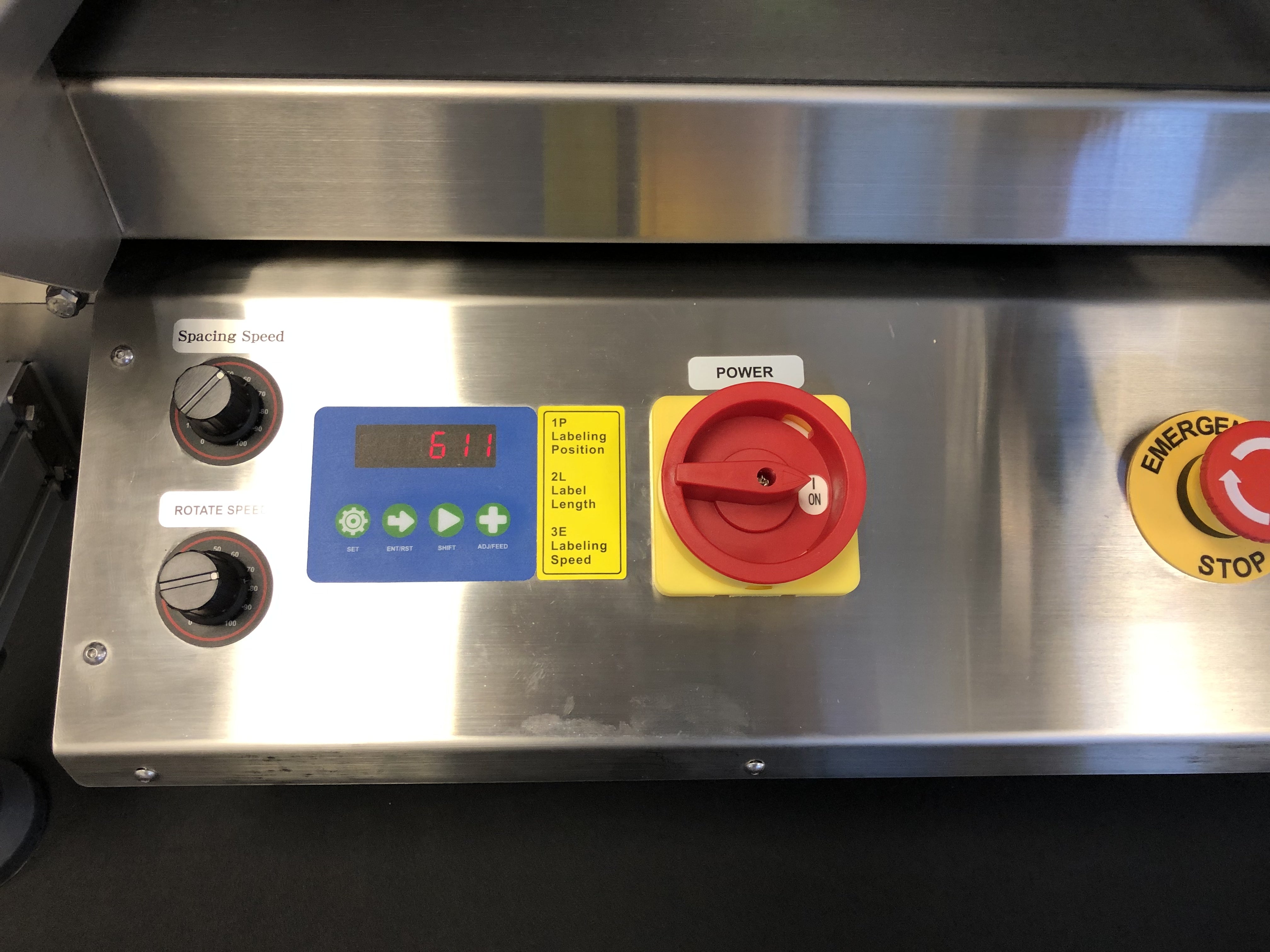

The labeling station is designed for general round bottle labeling with labeling accuracy of ±1 mm. It accommodates bottles from 16–90 mm in diameter and 30–160 mm in height. Label sizes range from 10 × 10 mm minimum to 300 × 100 mm maximum, with a 75 mm inside-diameter and 300 mm outside-diameter label roll.

Stainless Steel Construction

• Liquid-contact parts: SUS #316 stainless steel for a higher hygiene standard
• Frame and main components: SUS #304 stainless steel to meet cGMP standards

Technical Specifications

• Power: 110V / 60 Hz
• Air consumption: 6 kgf/cm²
• Volume range: 5–4000 ml
• Maximum filling speed: 30 bottles per minute
• Filling accuracy: ±1%, depending on product
• Bottle diameter: 16–90 mm
• Bottle height: 30–160 mm
• Labeling accuracy: ±1 mm
• Minimum label size: 10 × 10 mm
• Maximum label size: 300 × 100 mm
• Label roll: 75 mm ID / 300 mm OD

Available Options

• Automatic cap feeder for flat caps
• 3-Wheel Capping Solution for pump sprayers
• Additional star wheel
• Additional capping chuck
• Clear label sensor kit
• Inkjet printer for the label applicator
• Hot code printer for the label applicator
• 14 × 14 in. bottle catch tray at the end of the label applicator
• 24 in. accumulating table with side transfer plate
• 36 in. accumulating table with side transfer plate
• Heat tunnel for tamper banding

Is This Tabletop Filling Line Right for Your Operation?

The CFL200 is a practical choice when you need a compact filling line for low-viscosity liquid products and want feeding, filling, capping, and labeling coordinated in one tabletop system. Its adjustable controls, bottle and cap detection, stainless steel construction, and optional upgrades provide a flexible starting point for small-scale packaging operations.
