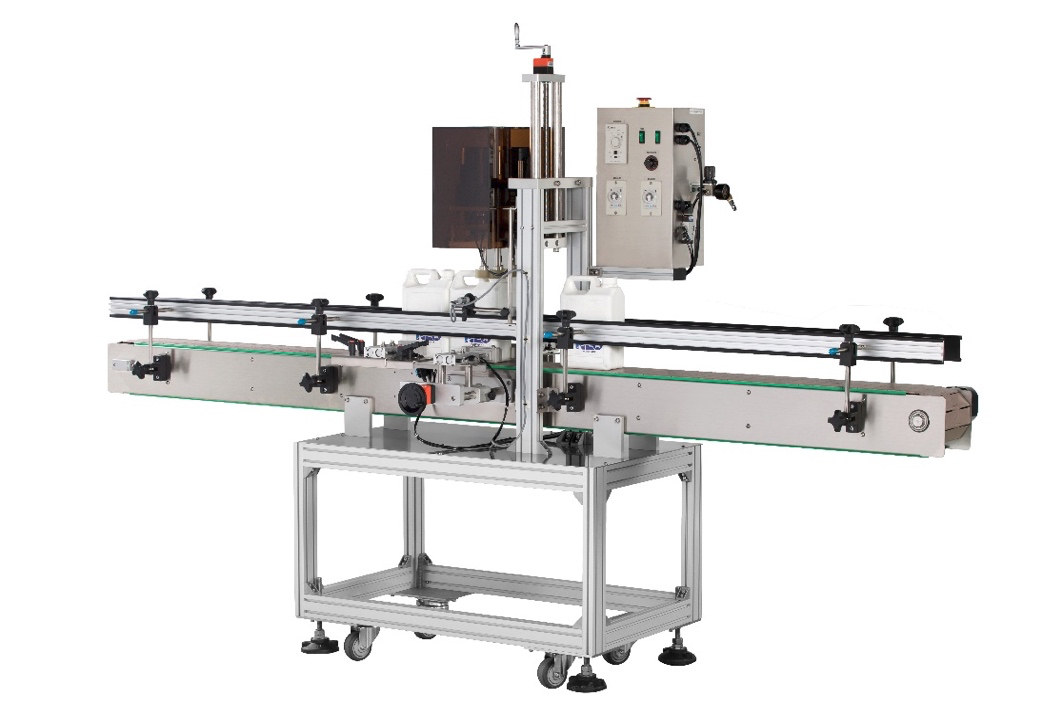

CS-3000 Semi-Automatic Screw Cap Capping Line
Couldn't load pickup availability
Details
Details
The CS3000 Capping System is a semi-automatic capper with speeds of 20-25 bpm. Suitable for 22-110 mm screw cap with bottle heights from 50-260 mm.
Features a 4 wheels pneumatic capping module with adjustable capping height and speed. Made of stainless steel SUS #304 with stainless steel stand with casters.
• Caps has to be fed manually.
• Top chain conveyor
• Sensor detection system, no bottle no capping
• GMP design
• Microprocessor user friendly control system
• Capping speed knob and dwell knob
• Capping counter
• Photocell switch
• Emergency stop button
• THIS IS NOT A WASH DOWN UNIT. IT IS A WIPE DOWN UNIT ONLY
Specifications
Specifications
Downloads
Downloads
-
CS-3000 Semi-Automatic Screw Cap Capping Line Brochure (Size: 175.9 KB)
CS-3000 Semi-Automatic Screw Cap Capping Line Brochure
