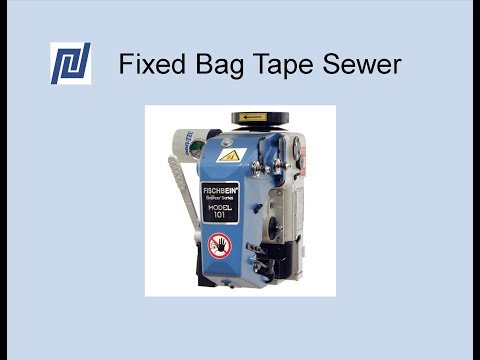

Fischbein Empress Model 101 Tape Sewing Head

Fischbein Empress Model 101 tape sewing head for open-mouth bag sewing

The Fischbein Empress Model 101 is a compact industrial tape sewing head for closing open-mouth bags made from paper, woven polypropylene, and jute. It uses a crepe-tape closure and is designed to integrate into bag-closing lines with compatible mounting pedestals, conveyors, power infeed systems, and other packaging accessories.

Built with heavy-duty metal components, low noise and vibration, and a patented pressurized self-lubricating system, the Model 101 is made for dependable production use with less routine maintenance. Its sewing speed is adjustable from 35 to 55 linear feet per minute, with a maximum operating speed of 55 feet per minute.

Model 101 specifications

• Closure type: tape sew
• Stitch: Federal type 401, single-needle, double-thread chain stitch
• Stitch range: 2 to 3.5 stitches per inch
• Standard stitch setting: 2.5 stitches per inch
• Maximum material thickness: 0.3 inches (8 mm)
• Crepe tape width: 1.25 to 2.5 inches (3.2 to 6.4 cm)
• Maximum operating speed: 55 linear feet per minute (16.7 m/min)
• Thread: polyester sewing thread recommended
• Thread and tape cutter: scissors-style
• Start/stop: microswitch or photoelectric switch, not included
• Air supply: minimum 90 PSI; 10 to 12 SCFM
• Net weight: 62 lb (28 kg)
• Shipping weight: 65 lb (29 kg)

Production-line integration

Use the Model 101 with suitable mounting and conveying equipment for open-mouth bag-closing applications. Available system accessories include mounting pedestals, power infeed systems, conveyors, bag-top folders, thread and tape-break detectors, bag coders, and photoelectric controls for system integration.

Typical applications: closing paper bags, woven polypropylene bags, and jute bags with a clean, durable crepe-tape sewn closure.
