• Dispensa-Matic’s own NO-ADJUST optical sensors (no sensor adjustment or cleaning)
• Capable of dispensing labels down to 1 mil thickness
• Reduces bubbles
• 11 3/4″ width capability

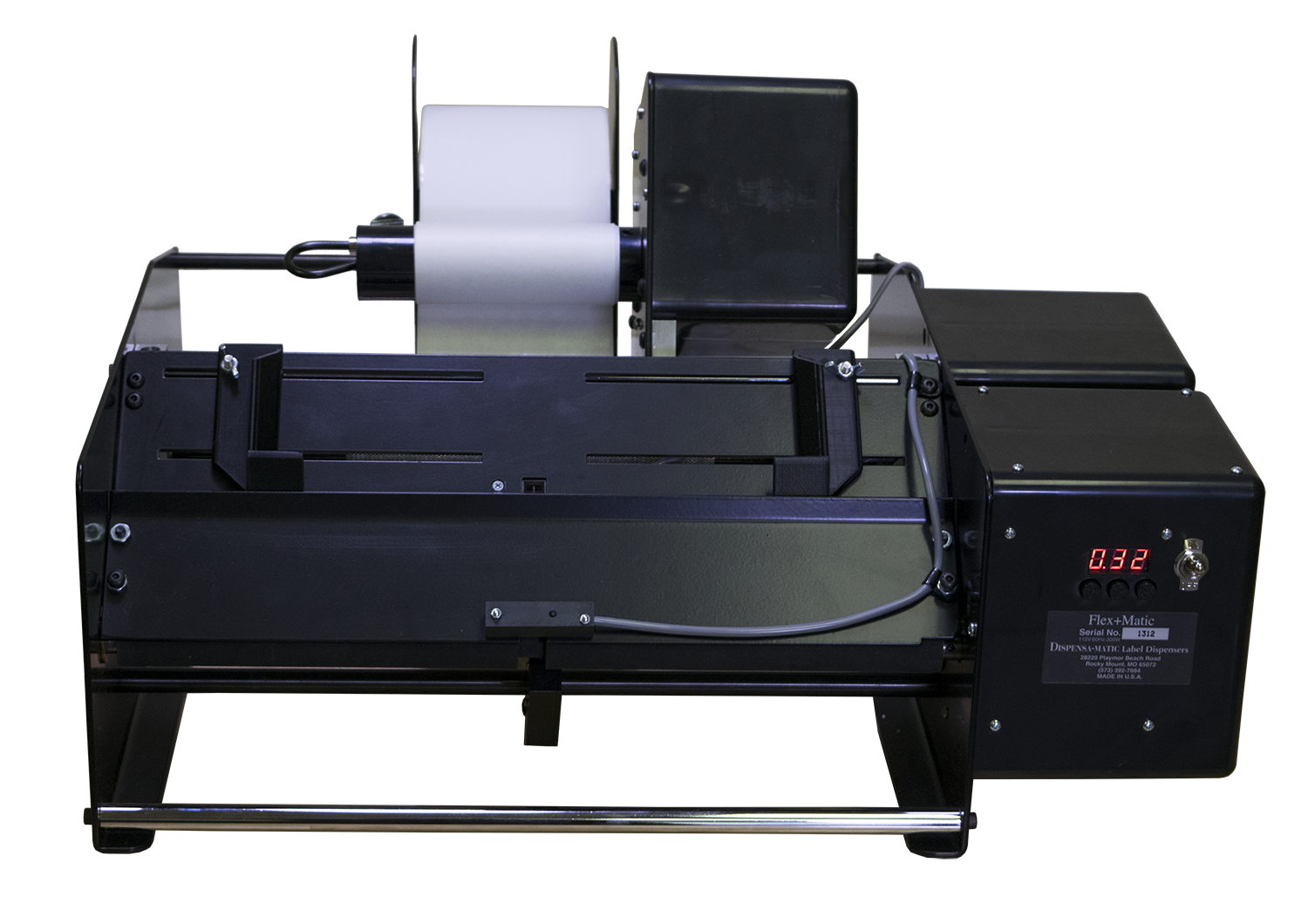

• Includes automatic Label Counter and waste Re-Winder
• Standard sensor is for opaque labels only.
• For transparent labels: An optional “black line” sensor is available on request (special order lead time, no charge).

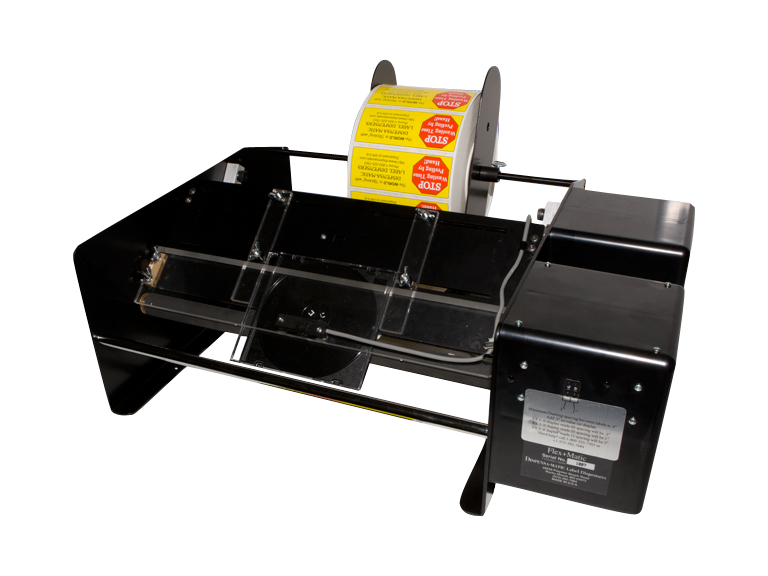

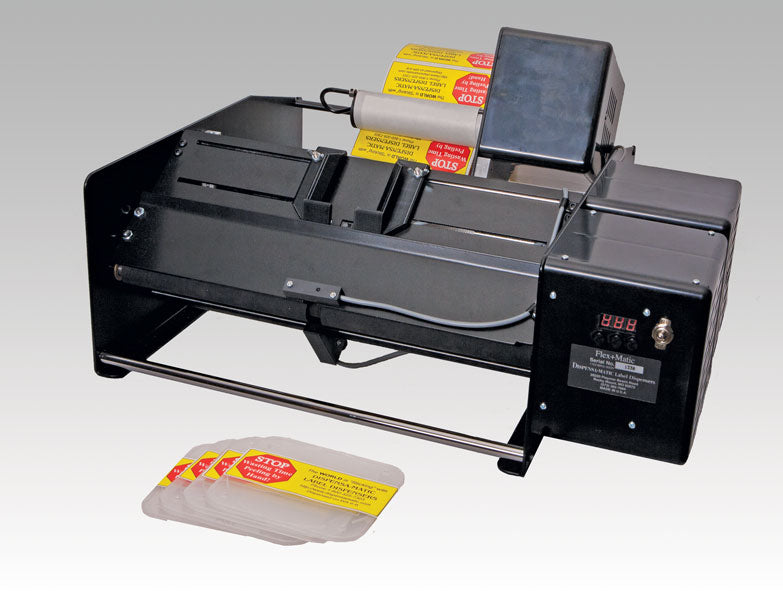

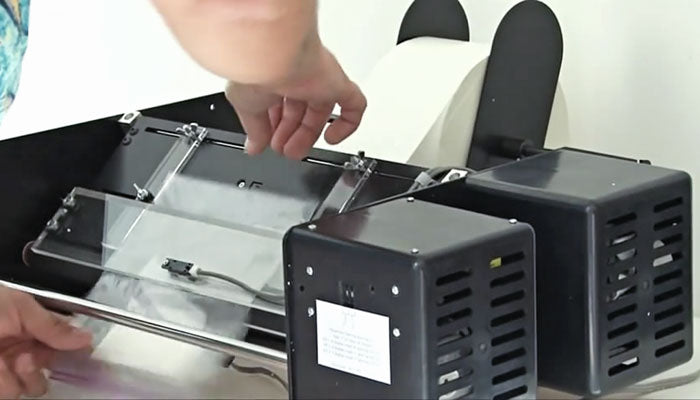

Flex+Matic label applicator enables the user to label all kinds of flat objects by simply setting the desired spacing using the digital readout and guides. Then insert the flat object. Once the object is inserted the label is applied automatically. Now, Insert the next one, as fast as you feed the machine, it will label! Bags, envelopes, pouches, PCBs, and even slimline CD/DVD cases. With our 5″ per second feed, most objects are labeled in less than 2 seconds! This allows the user to quickly insert another to start the procedure again. Once a rhythm is established objects are labeled VERY quickly. Loading is a “snap”, just feed the labels between the dispensing tables then through the patented feed-roll assembly and “snap” into place.
The Flex-Matic has a 11 3/4″ width space to label your flat object! This applicator can label any flat object fast and accurately up to 1/4″ thick at speeds up to 1,200 pieces per hour!
Product Details:
Side frames: Laser-Cut from the drawing quality steel then formed, countersunk, de burred, and inspected one at a time at our facility.
Dispensing Tables: formed out of 6061-T6 Aluminum. The peel edge is hand milled to spec within .001″ using a special hand-made cutting tool to get that perfect peeling edge needed to dispense labels without tearing the backing paper. (35 years of perfecting the peeling action) Dispensing tables are POLISHED with ultra-fine polishing compound so paper flows freely around the plate.
Motors: The Flex+Matic uses DUAL motors that are shaded pole AC, and made in the USA to our specifications. (No CHEAP 12v motors here!)
