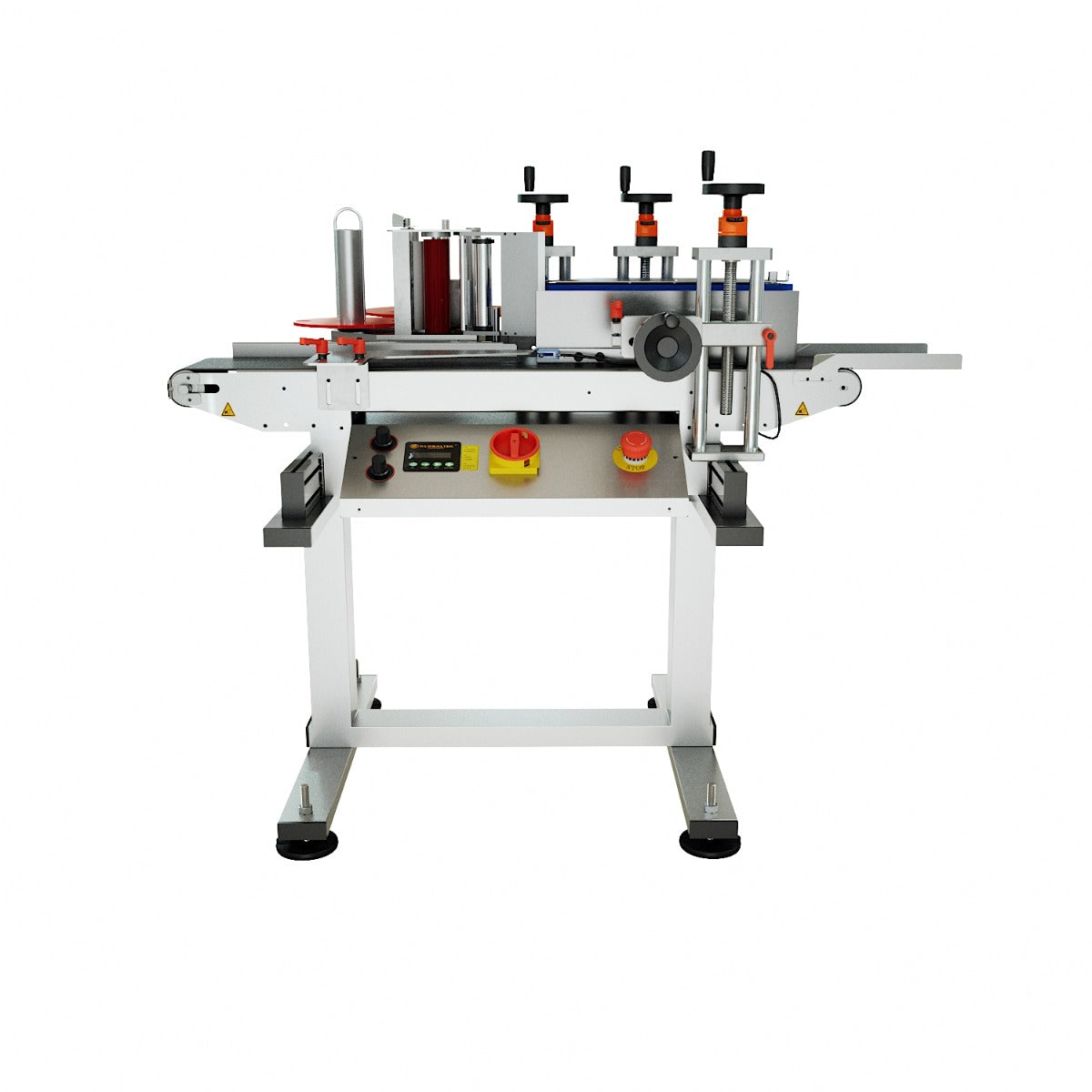

LAB-1100 Inline Automatic Wrap-Around Labeler

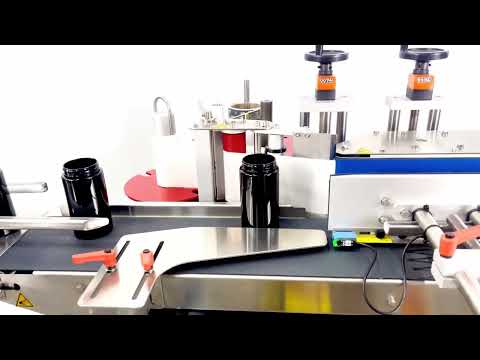

LAB-1100 Inline Automatic Wrap-Around Labeler is an automatic bottle labeling machine built to apply wrap-around labels to cylindrical containers with consistent placement and dependable inline performance. Its compact footprint makes it a practical fit for pharmaceutical, food processing, beverage, and other packaging lines.

The LAB-1100 combines a stepper-motor drive, adjustable conveyor and wrap belt, integrated controls, and accurate optical sensing for smooth operation and repeatable labeling. It handles bottles from 16–90 mm in diameter and 30–160 mm in height.

Label Size Range

• Minimum label size: 10 mm L × 10 mm W
• Maximum label size: 300 mm L × 100 mm W

The clearly defined label range helps you confirm material compatibility before specifying the machine for your packaging line.

Machine Footprint

• Length: 1090 mm = 42.9 in, approximately 42-15/16 in
• Width: 840 mm = 33.1 in, approximately 33-1/16 in
• Height: 440 mm = 17.3 in, approximately 17-5/16 in

Overall footprint: approximately 43 in L × 33 in W × 17.3 in H.

Technical Specifications

• Operating speed: 10 meters/min
• Labeling speed: approximately 20–40 bottles per minute, subject to actual label size
• Labeling accuracy: ±1 mm
• Bottle dimensions: 16–90 mm diameter × 30–160 mm height
• Label roll diameter: 75 mm inside diameter; 300 mm outside diameter
• Driven motor: stepper motor
• Power supply: 110 V, 50/60 Hz, single phase, or 220 V, 50/60 Hz, single phase
• Amperage requirement: 2 A
• Electric power: 115 W

Main Features

• Simple operation with quick, easy product changeover
• Motorized conveyor and wrap belt with speed control
• Integrated control panel for straightforward adjustments
• Microprocessor-controlled operation for easy maintenance
• Accurate optical fiber sensor for precise label dispensing
• Stainless-steel frame construction with adjustable height
• Suitable for automatic inline operation
• Quiet, smooth stepper-motor drive

Optional Features

• Clear label sensor
• Bottle spacing wheel
• Hugger belt transfer

Warranty

12 months, limited warranty.
