What is an inline conveyor and what does it do?

An inline conveyor is a motorized moving tabletop that carries bottles, jars and packages from one step of a production line to the next, a lot like the moving belt at a grocery store checkout. Almost every bottle of shampoo, salad dressing, sauce or cleaning spray on a store shelf rode on a conveyor like this while it was being filled, capped and labeled. Here is how Cleveland Equipment's plastic tabletop inline conveyors work: (1) bottles are set on the belt or come off a filling machine, (2) the belt carries them forward at a speed you set with a dial, (3) side guide rails keep them lined up in a single row, (4) they pass by your capper, labeler, coder or inspection point, and (5) they arrive at the end of the line ready to pack. The conveyors come in 4.5, 7.5 and 12-inch belt widths and lengths from 4 to 20 feet.

Is there a machine that moves bottles from one machine to the next for you instead of carrying them by hand?

Yes. A plastic tabletop inline conveyor from Cleveland Equipment moves bottles from your filler to your capper, labeler and packing table for you, replacing carrying trays of bottles, sliding them along a table or handing them from person to person. You set the speed with a knob, up to 200 feet per minute, so bottles arrive at each machine at a steady pace instead of in bunches, and toolless guide rails keep them lined up and upright. Pick the 4.5-inch belt for single-file bottles and jars, the 7.5-inch belt for wider containers, or the 12-inch belt for wide containers, cases and packing areas, in lengths from 4 to 20 feet. They plug into a standard 115-volt outlet, and they are often the piece that turns separate machines into one connected packaging line.

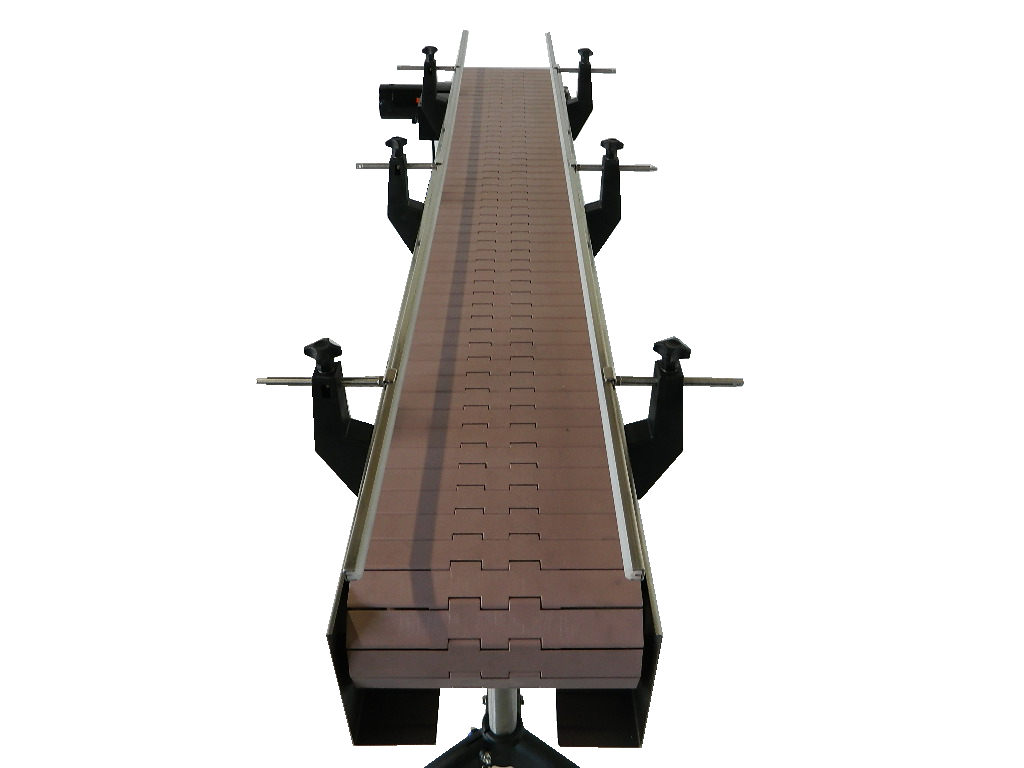

What is a plastic tabletop conveyor?

A plastic tabletop conveyor moves containers on a flat plastic chain belt instead of a rubber belt. Cleveland Equipment's inline conveyors use a low-friction acetal (Delrin) tabletop plastic belt on a stainless steel frame, which lets bottles, jars and packages slide and accumulate smoothly as they move between packaging machines.

Which belt width do I need: 4.5, 7.5 or 12 inches?

Match the width to your container footprint and what the conveyor has to do. The 4.5-inch belt suits single-file bottles, jars and small containers. The 7.5-inch belt handles wider containers or gives extra room for guide rails. The 12-inch belt is for wide containers, cases and packed product, or for hand-pack and accumulation areas. If you're not sure, call Cleveland Equipment at 866-410-9628 with your container dimensions and we'll size it for you.

What lengths are available?

Standard conveyor lengths run from 4 feet up to 20 feet depending on the model, and other sizes are available upon request. The length you need is usually the distance between the two machines you're connecting, plus room for accumulation.

How fast does the conveyor run, and how much weight can it carry?

These inline conveyors run at variable speeds up to 200 ft/min, and the maximum weight capacity is 150 lbs per linear foot. Speed is set with a knob on the variable speed control, so you can match the pace of the machine feeding the conveyor.

What power does a plastic tabletop conveyor need?

The machine electrical requirement is 115 volts, 1 phase, 60 Hz, and 110 VAC electricity needs to be available near the electrical box. The drive is a Bodine DC gearmotor rated 3/8 HP, 83 RPM and 248 lb-in.

How high does the conveyor sit, and can I adjust it?

Floor-to-belt height is adjustable from 35 to 40 inches using the adjustable bases on the welded legs. Guide rails adjust too: rail height from 0 to 5 inches, and rail opening from the belt width to 5/8 inch wider than the belt, using toolless adjustable rail brackets.

Can this conveyor connect my filler, capper and labeler?

Yes. That's what it's built for. Transfer end plates handle container transitioning between machines, so containers move from one conveyor or machine to the next without tipping. A side transfer plate for conveyor-to-conveyor transfer is available as an option.

Is the conveyor washdown rated and safe for food plants?

The frame is stainless steel and the belt is low-friction acetal plastic, and the machine is made in the USA with 100% UL certified components. A washdown motor and speed control is available as an option. Do not spray water onto the motor, speed control, flange bearing or electrical connections. Keeping the conveyor clean is essential to proper operation and sanitation guidelines.

How do I clean a stainless steel conveyor?

Clean stainless surfaces with a soft cloth and a mild detergent intended for use with stainless steel, flush with clean water or wipe down with a clean wet cloth, then wipe dry to avoid streaking and spotting. Chlorinated detergents and sanitizing agents will damage stainless steel unless thoroughly flushed or wiped away. Check cleaning solutions for pH: any value below 4.5 or above 9.0 will damage the stainless steel and plastic parts. During work periods, keep the conveyor relatively clean of accumulated debris.

Why is my conveyor belt squealing or not running smoothly?

A squeal usually means the slider pan surface is dirty, so clean it. If the belt doesn't run smoothly, check for excessive slack in the belt or the drive chain and remove it, and look for an object under the belt. If the motor runs but the belt doesn't, check for a loose set screw on the drive pulley, check the gear box oil, and check the set screws through the bearing to the drive shaft. If the belt doesn't move at all, the speed control knob may be loose.

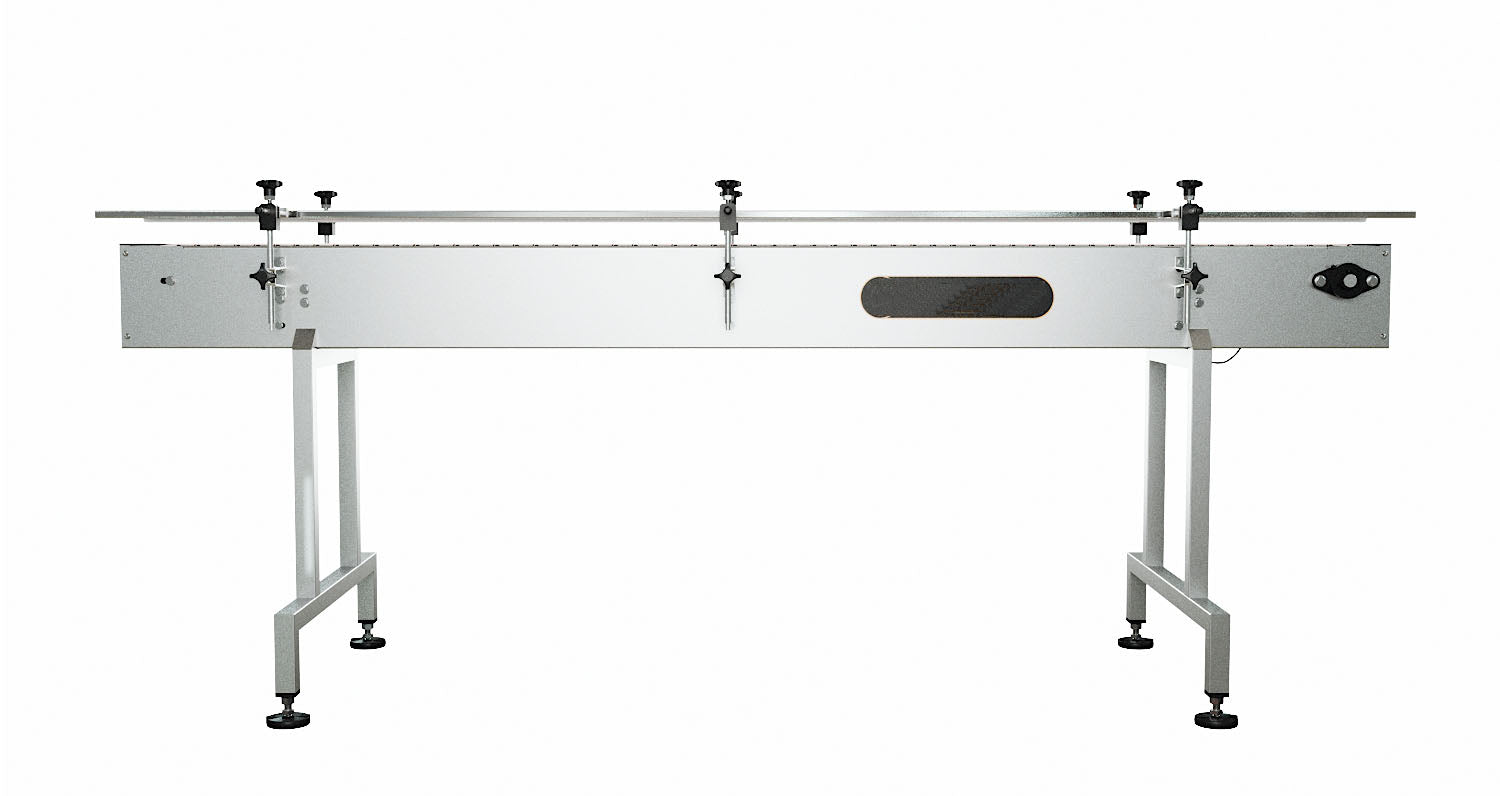

12"W Inline Conveyor with Plastic Table Top Belt - 10ft L

12-Inch Plastic Tabletop Inline Conveyor*

A 12-inch-wide variable-speed inline conveyor with a low-friction acetal plastic tabletop belt, stainless steel frame and adjustable guide rails. Supports wide containers and packaged products at up to 200 ft/min with a 150 lb-per-linear-foot capacity.

SKU#: CON-0412P

$5,083.00

Shipping calculated at checkout.

Conveyor Length: 04 Feet Long

04 Feet Long 06 Feet Long 08 Feet Long 10 Feet Long 12 Feet Long

or Request a Quote

866-888-6327

Details

Machine comes with a 1 year limited part warranty and tech support.

This 12-inch plastic tabletop inline conveyor provides a broad, stable conveying surface for wide containers, grouped products and packaged goods moving between production stations. The low-friction acetal plastic belt and variable-speed control support smooth product movement through filling, capping, labeling, coding, inspection and packing operations.

The stainless steel frame and welded dual-post base are designed for lighter and heavier production loads. Toolless guide-rail brackets simplify product changeovers, adjustable leveling pads stabilize the conveyor, and transfer end plates help products transition smoothly at the infeed and discharge.

Key Features

12-inch-wide low-friction acetal plastic tabletop belt
Variable belt speed up to 200 ft/min
Maximum load capacity of 150 lb per linear foot
Stainless steel frame with welded dual-post base
Toolless adjustable guide-rail brackets
Guide-rail height adjusts from 0 to 5 inches
Guide-rail opening adjusts from belt width to 5/8 inch wider than the belt
Transfer end plates for smooth product transitions
Chain return guides for controlled belt travel
Adjustable leveling pads
Made in the USA with UL-certified components

Available Conveyor Lengths

Select from the configured 4-, 6-, 8-, 10- and 12-foot conveyor lengths to suit your packaging line and floor layout.

Performance and Electrical Requirements

Motor: 3/8 HP DC gearmotor
Motor speed: 83 RPM
Rated torque: 248 lb-in
Electrical service: 115 V, single phase, 60 Hz
Floor-to-belt height adjustment: 35 to 40 inches

Production-Line Applications

The 12-inch belt gives wider products more surface support as they travel between processing or packaging equipment. Use it with liquid fillers, cappers, labelers, coders, inspection stations, accumulation tables and hand-packing areas. Operators can adjust the rails without tools and tune the conveyor speed to manage spacing and reduce backups.

Setup and Care

Install the conveyor on a firm, level surface and adjust the welded-leg bases until the machine is stable. Set the guide rails for the product being conveyed and verify the required voltage before connecting power. During cleaning, do not spray water on the motor, speed control, flange bearings or electrical connections. Disconnect and lock out power before service or adjustment.

Available options referenced in the manual: hand-pack station, dual guide rails, 4-inch stainless steel guide rail, alternate belt styles, side-transfer plate, washdown motor and speed control, explosion-resistant motor and speed control, and locking casters. Confirm optional configurations before ordering.

Specifications

Conveyor Specifications

Belt width: 12 in
Belt type: Low-friction acetal plastic tabletop belt
Speed: Up to 200 ft/min
Maximum capacity: 150 lb per linear foot
Floor-to-belt height: 35–40 in
Guide-rail opening: Belt width to 5/8 in wider than belt
Guide-rail height: 0–5 in
Configured lengths: 4, 6, 8, 10 and 12 ft

Motor and Electrical

Motor: 3/8 HP DC gearmotor
Motor speed: 83 RPM
Rated torque: 248 lb-in
Electrical requirements: 115 V / 1 PH / 60 Hz

Construction

Frame: Stainless steel
Base: Dual-post welded stainless steel
Components: UL certified
Country of manufacture: USA

Downloads

CE-CON 12PCN Inline Conveyor with Plastic Table Top Belt 12W Product Brochure (Size: 194.8 KB)

CE-CON 12PCN Inline Conveyor with Plastic Table Top Belt 12W Product Brochure
Inline Conveyor with Plastic Table Top Belt Manual (Size: 1.5 MB)

Inline Conveyor with Plastic Table Top Belt Manual
