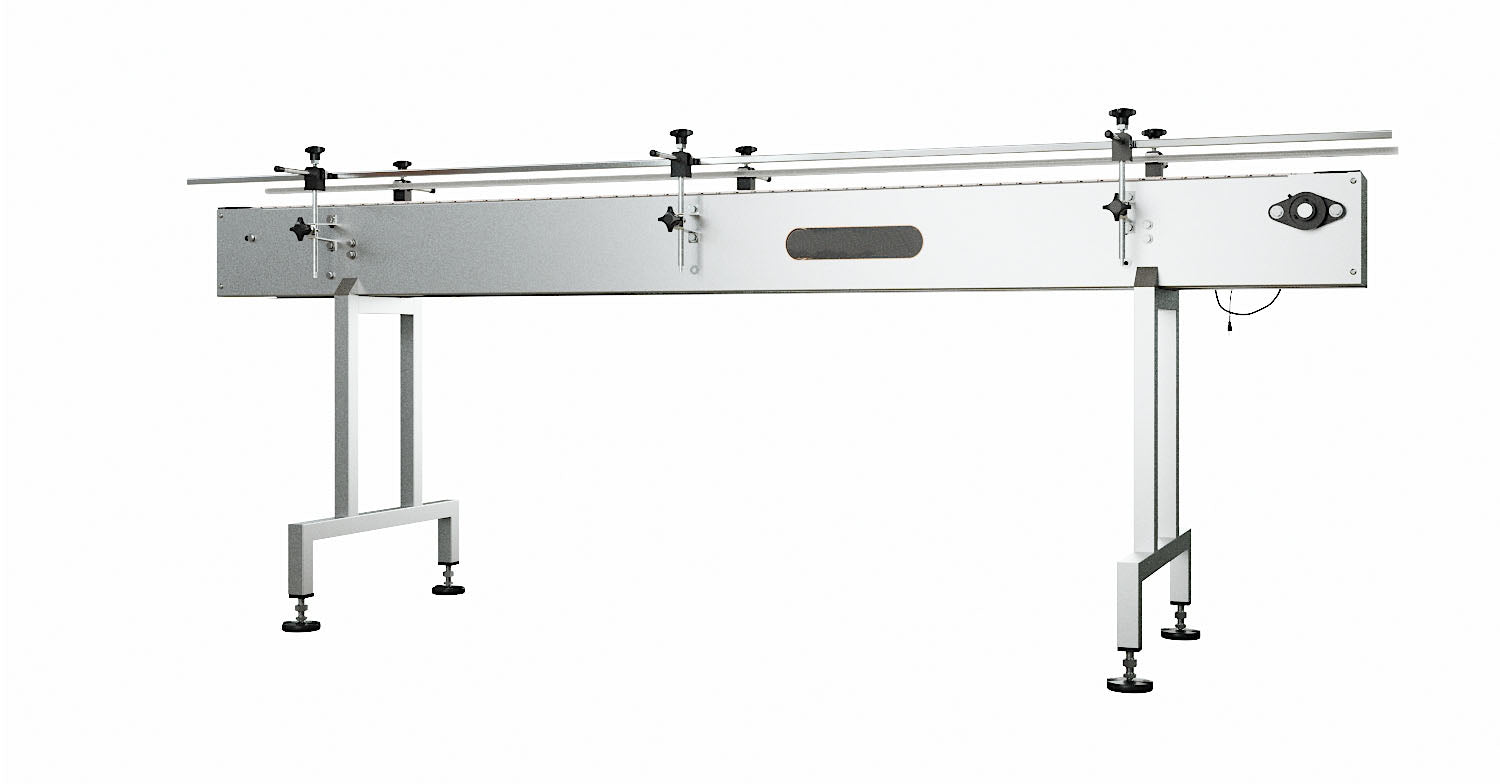

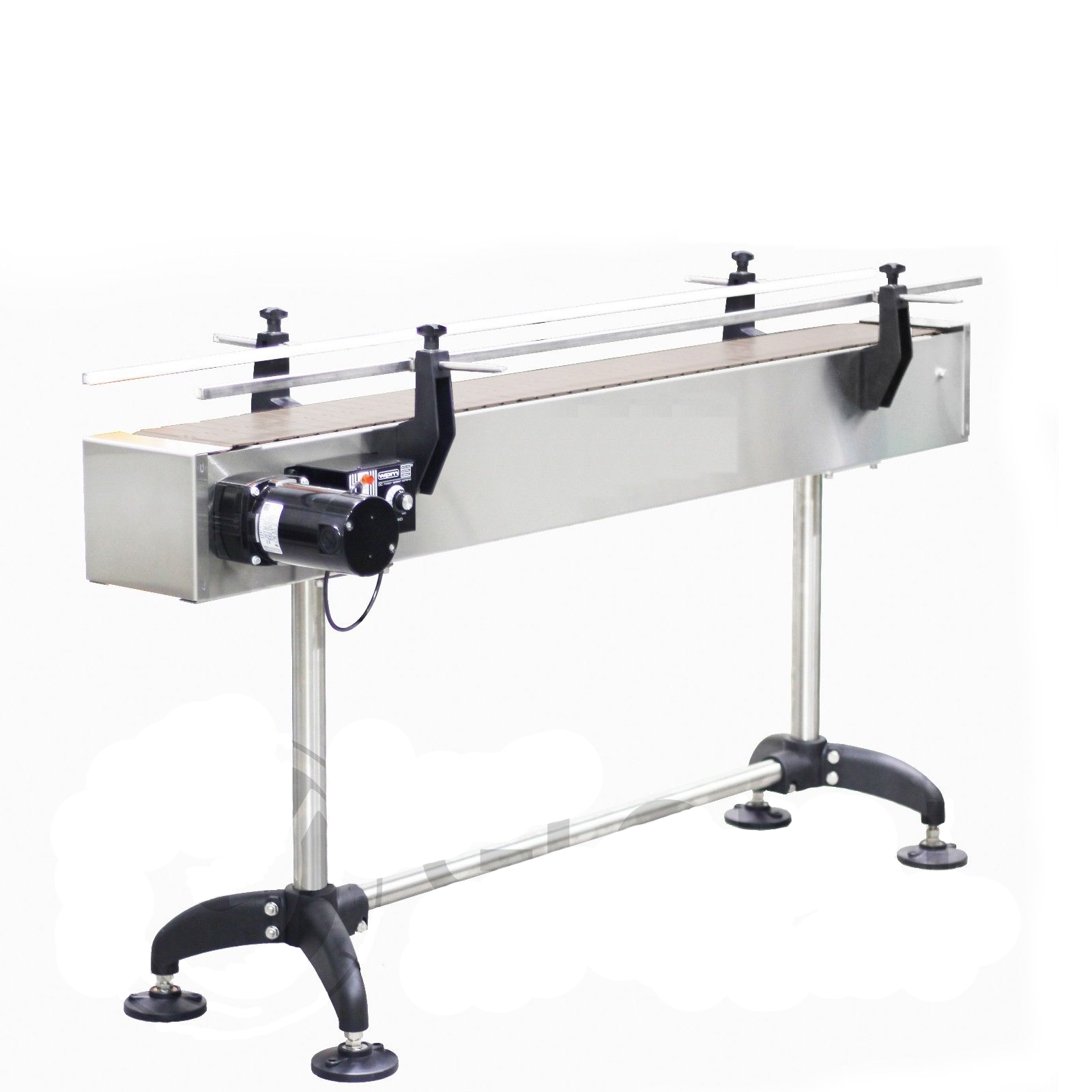

7.5"W Inline Conveyor with Plastic Table Top Belt - 12ft L

Inline Conveyor with Plastic Table Top Belt 7.5"W - With CrossBar & EndPlates

Adjustable Guide Rails, Up To 7.5"
90 V 1/8 Hp Gear Motor
Speed Control
Electrical Requirements: 115v/1/60
Legs Are Height Adjustable 35-40" Height

SKU#: CON-0475P

$4,400.00

Conveyor Length: 04 Feet Long

04 Feet Long 06 Feet Long 08 Feet Long 10 Feet Long 12 Feet Long 20 Feet Long

or Request a Quote

(866) 520-3248

Details

Adjustable Guide Rails, Up To 7.5"
90 V 1/8 Hp Gear Motor
Speed Control
Electrical Requirements: 115v/1/60
Legs Are Height Adjustable 35-40" Height

Available in 6', 8', 10' & 12' lengths.

Specifications

Construction: Stainless Steel Construction
UL certified components

Control: Variable speed control Bodine 0791 : 0 - 200 ft/min

Dimensions: Conveyor dimensions: 6’L x 4”W x 35”H

Conveyor Adjustable Height: up to 35-40”

Adjustable Guide Rail Width: 0 - 7.5”W

Adjustable Guide Rail Height: ¾ “ - 2 ½ ” H

Capacity: 150 lbs per Linear Feet

Motor: Bodine 5044 - 90V 3/16 hp, 58 rpm

Power Supply: 115V / 1PH / 60HZ

Downloads

Inline Conveyor with Plastic Table Top Belt Manual (Size: 1.5 MB)

Inline Conveyor with Plastic Table Top Belt Manual
CE-CON-75PCY Inline Conveyor with Plastic Table Top Belt 7.5W Product Brochure (Size: 194.4 KB)

CE-CON-75PCY Inline Conveyor with Plastic Table Top Belt 7.5W Product Brochure

Videos
