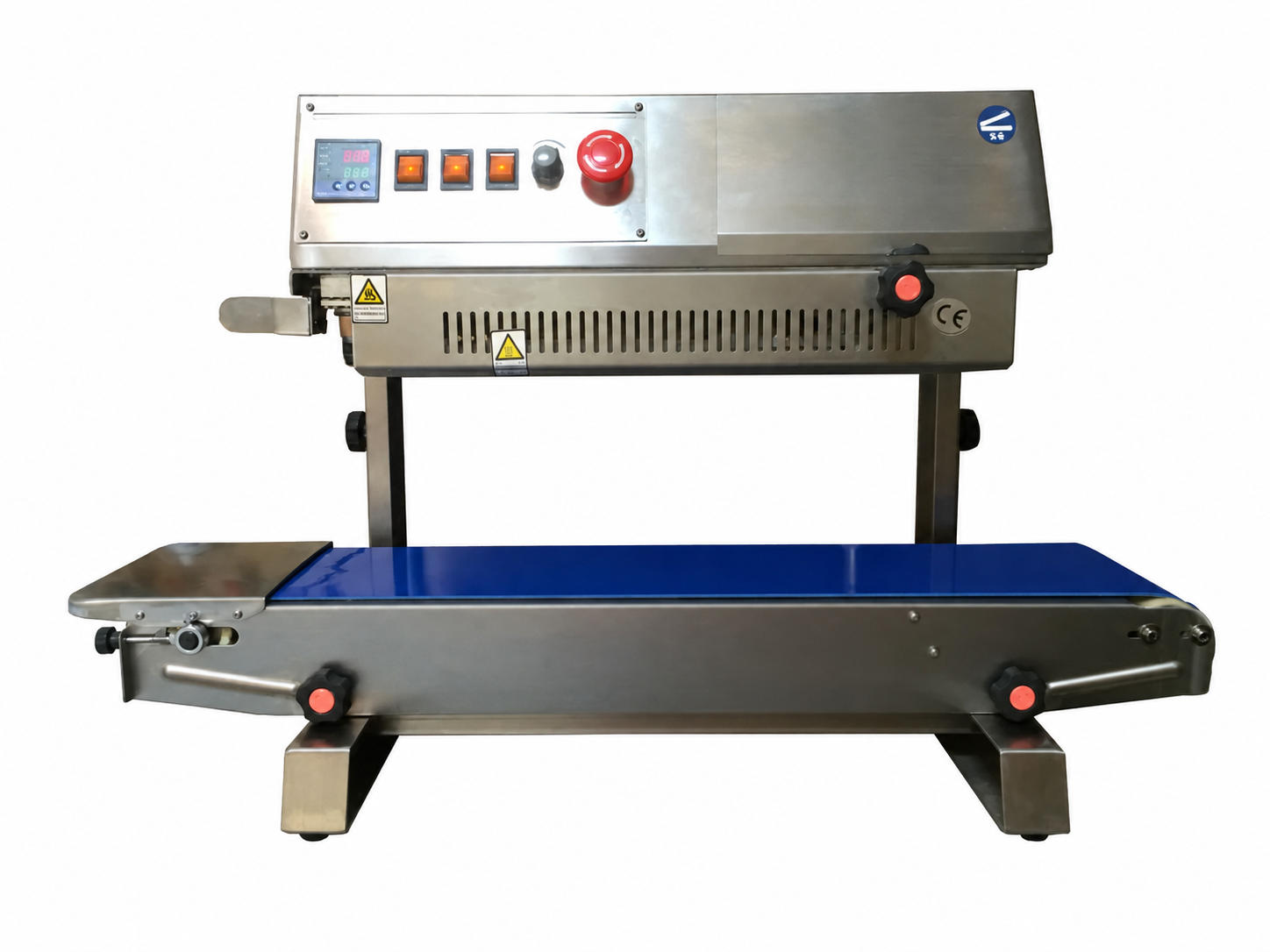

INP-2500 Vertical Continuous Band Sealer

INP-2500 Vertical Continuous Band Sealer — Vertical Operation

The INP-2500 Vertical is an entry-level vertical-configuration continuous band sealer built for packaging operations that need reliable, consistent heat seals without the complexity of higher-end systems. Suitable for sealing all types of thermoplastic materials and bags — including PE, PP, and laminates — it accommodates filled bags from 7.8" to 12" in height and can seal 20–26 six-inch wide poly bags per minute.

The left-to-right feed integrates seamlessly with filling equipment or operates as a standalone unit. Knurled pressure rolls with variable pressure adjustment and paired heating and cooling blocks ensure a clean, professional seal every time — with minimal operator training required.

Standard configuration: left-to-right feed.

Key Features

• Vertical configuration — accommodates filled bags from 7.8" (min) to 12" (max) in height
• Entry-level design — straightforward operation with minimal setup
• Durable stainless steel construction for washdown-compatible environments
• Solid-state temperature controller maintains seal bars at optimal temperature for consistent seal quality
• Fast warm-up time — minimal downtime between production runs
• Motorized rubber conveyor with variable speed control (0–630 in/min)
• Knurled pressure rolls with variable pressure adjustment
• Constant/direct heat sealing with paired heating and cooling blocks
• Seals any thermoplastic material including PE, PP, and laminates
• Embossing wheel — marks on the seal line without ink
• Emergency stop button for operator safety
• Easy to operate — minimal training required

Included Spare Parts Kit

Each unit ships with a manufacturer's spare parts kit containing: PTFE sealing belt, drive belt, PC board, tools, and typesets (numbers 0–9 and letters EXD).
