INP-3000 Vertical Continuous Band Sealer

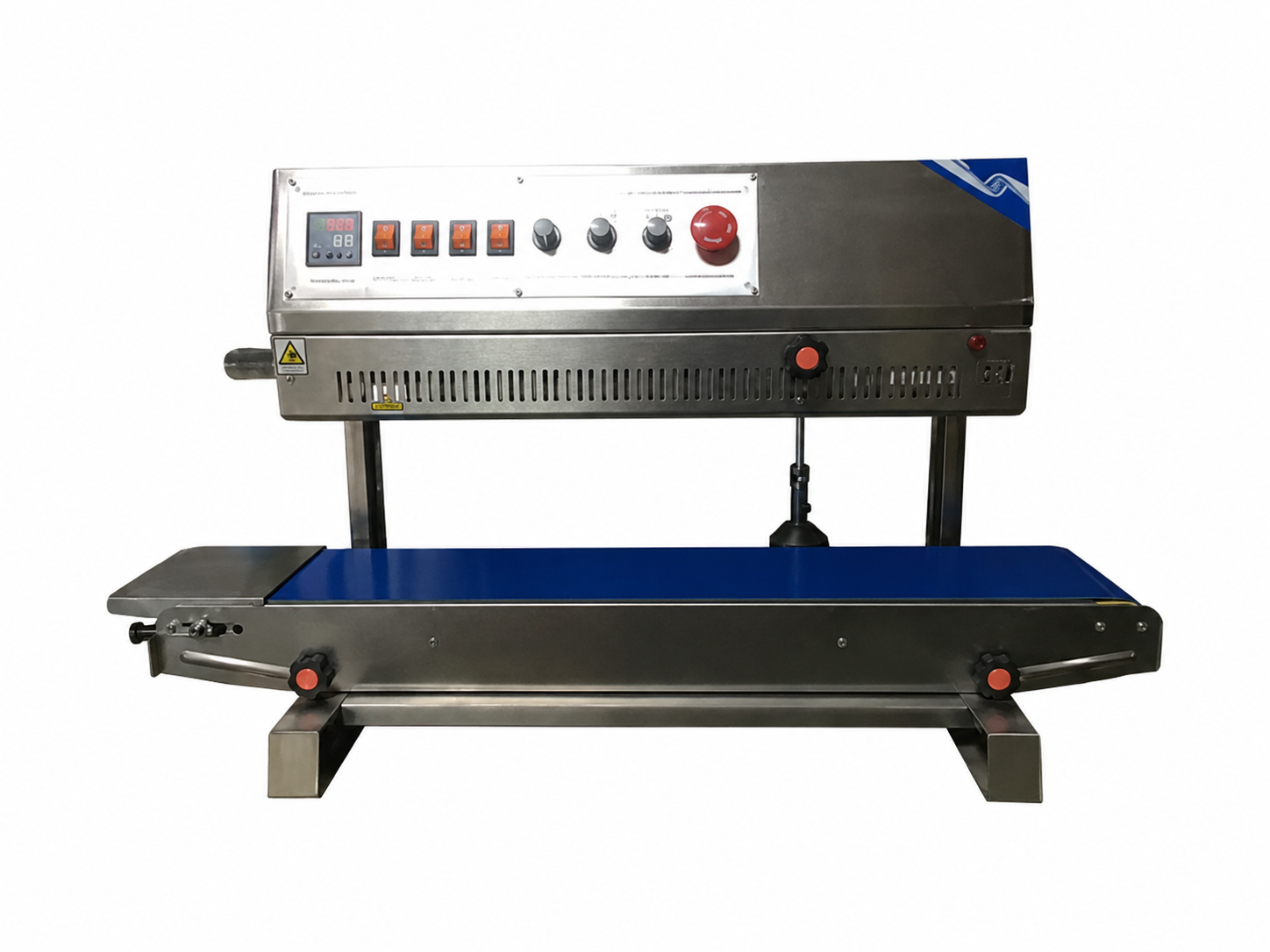

INP-3000 Vertical Continuous Band Sealer — Vertical Operation

The INP-3000 Vertical is a vertical-configuration continuous band sealer engineered for high-volume packaging lines that demand consistent, repeatable heat seals. Designed for vertical operation, it accommodates filled bags from 7" to 12" in height and delivers fast, airtight seals on a wide range of plastic bag types — including mylar, poly, and composite films — with a built-in dry ink coder that prints lot codes, expiration dates, and batch information directly on the seal line, all in a single pass.

The left-to-right feed integrates seamlessly with filling equipment or operates as a standalone unit. Knurled pressure rolls with variable pressure adjustment and paired heating and cooling blocks ensure a clean, professional seal every time — with minimal operator training required.

Standard configuration: left-to-right feed.

Key Features

• Vertical configuration — accommodates filled bags from 7" (min) to 12" (max) in height
• Durable stainless steel construction for washdown-compatible environments
• Solid-state temperature controller maintains seal bars at optimal temperature for consistent seal quality
• Fast warm-up time — minimal downtime between production runs
• Fully adjustable conveyor — height and depth adjustable relative to seal bars
• Motorized rubber conveyor with variable speed control (0–630 in/min)
• Knurled pressure rolls with variable pressure adjustment
• Constant/direct heat sealing with paired heating and cooling blocks
• Dry ink coding prints on the seal line — lot codes, dates, batch info
• Standard left-to-right feed
• Emergency stop button for operator safety
• Easy to operate — minimal training required

Included Spare Parts Kit

Each unit ships with a manufacturer's spare parts kit containing: PC board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, tweezers, and typesets (numbers 0–9 and letters EXP, MFD).
