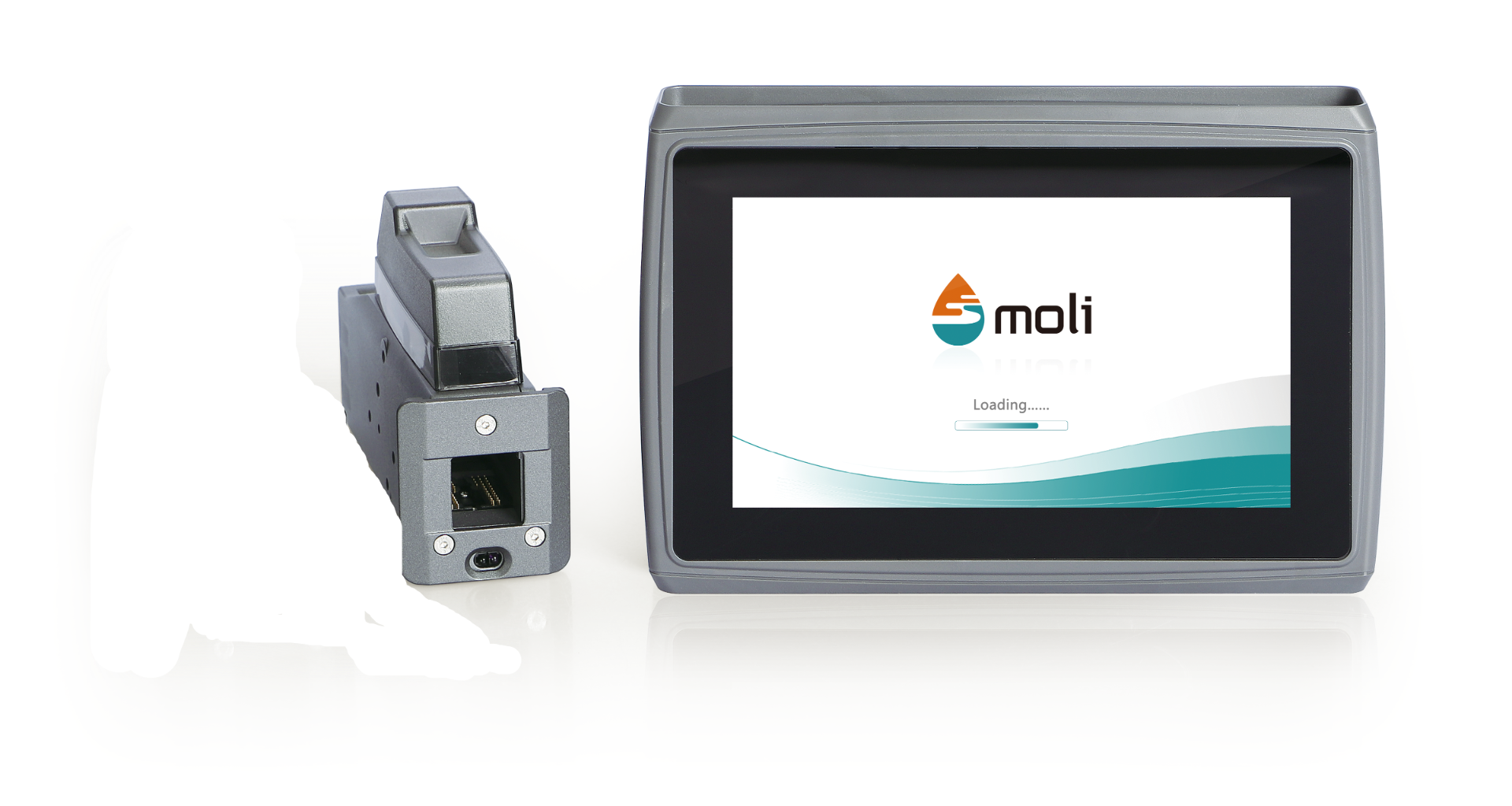

MoEco 2000 Series Thermal Inkjet Printer

The MoEco 2000.1 is a single head thermal inkjet printer. It has up to 600 V x 1,200 H dpi resolution per head and a 7” touchscreen display. The single printhead produces a 1/2” high print line. The MoEco 2000.1 can use either water based or solvent base ink cartridges.

Water based inks are available in black or red colors and solvent based inks are available in black, blue, red, white yellow and cyan colors. Call for pricing.

Note: the alarm light, coder, and sensor options require the 3-1 splitter cable.

STANDARD FEATURES

• 1 print head
• ½” line height
• 600 V dpi x 40-1200 H dpi
• 60 m/min print speed
• Independent controller
• 7” full color display
• programable software
• 500 message storage
• low ink alert
• mounting brackets
• CE & FCC certifications

System Specifications

Print Technology   HP Thermal Inkjet 2.5 Technology

Dimensions   224 x 151 x 38 mm (MoTix 2000) | 281 x 184 x 38 mm (MoTix 4000)

Print Height   1.0 – 25.5 mm (MoTix 2000) | 1-50.8 mm (MoTix 4000)

Multi-Line Printing   Group multiple messages together for multi-line printing

Number of Print Lines   1, 2, 3, 4 or more lines of high resolution codes

Print Resolution   Vertical 600 dpi Horizontal 40-1200 dpi (single head)

Maximum Print Speed  Up to 200 m/min

Time & Date   Real-time internal clock

Product Sensor   Built-in optical photo-eye

Portal Interface   Ethernet, USB 2.0, and 8 pin + 12 pin aviation connector

Display   7 in (MoTix 2000) | 10 in (MoTix 4000)

Ink Management   Built-in measuring system for ink consumption

Low Ink Indicator   Alert on touchscreen display; alarm light beacon is optional

Working Environment   ‘-10°, +55°C

Storage Environment   ‘-20°, +70°C

Agency Certifications   CE, FCC

Software Specifications

Time & Date Custom time and date formatting, including exp date and Julian’s date

Logos BMP, JPG, PNG

Item Numbering Incremental counter for item sequencing or production count

Shift Codes Customizable shift code times and naming with automatic rollover

Barcodes All standard barcode types, including 2D barcodes

Printing Features R-L, L-R, Invert, Rotate, Repeat

Message Length Up to 9.8 ft (3m)

Message Storage Store up to 500 messages

Ink Usage Automatically calculated for each message and displayed on the screen

Database Capability Ethernet communication protocol for external communication

Languages English, Korean, and French

Printable Materials Porous, semi-porous, and non-porous surfaces
