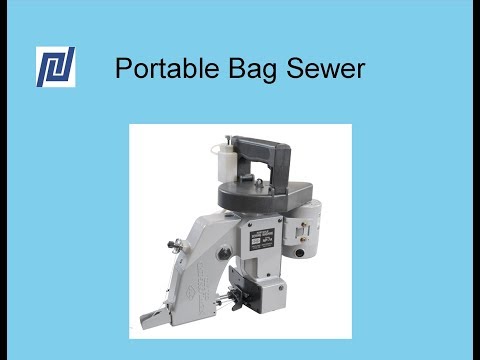

NP-7A Portable Bag Closer

NP-7A portable bag closer for handheld bag sewing

The NP-7A is a hand-held portable bag closing machine designed for light industrial packaging. Its single-thread chain stitch closes Kraft paper, PP/PE woven cloth, cotton, hessian, and jute bags, making it a flexible choice when operators need a mobile bag sewing machine for varied materials.

Built for dependable production use, the NP-7A combines steel cams, automatic oil-pump lubrication, and a built-in thread cutter. The fixed 8.5 mm stitch length creates a consistent chain-stitch closure while the portable format keeps the machine easy to position around filled bags.

NP-7A specifications

• Stitch: single-thread chain stitch
• Fixed stitch length: 8.5 mm
• Operating speed: 1,700 to 1,900 RPM
• Needle: DNx1 #25
• Thread: Vinylon, synthetic, or cotton, size 20/6
• Bag materials: Kraft paper, PP/PE woven cloth, cotton, hessian, and jute
• Net weight: 6 kg (including thread cone)
• Machine dimensions: 361 × 246 × 321 mm
• Power options: 110–120V AC, 220V AC, 230–240V AC, 12V DC, or 24V DC; 50–60 Hz, single phase where applicable
• Lubrication: automatic oil pump
• Thread cutting: built-in automatic thread cutter
• Noise level: 75–84 dB(A)

Bag-closing applications

Use the NP-7A for portable closing of filled bags and sacks made from paper, woven plastic, cotton, hessian, or jute. It is a practical fit for light industrial and agricultural packaging operations where the operator needs to move the sewing head from bag to bag.

An optional crepe-tape binding and cutter assembly is available as a special-order configuration. Confirm the required voltage and any optional attachments before ordering.

Read the instruction manual before operation. Use the specified voltage, connect the machine to a proper electrical ground, and disconnect power before maintenance, adjustment, cleaning, or parts replacement.
