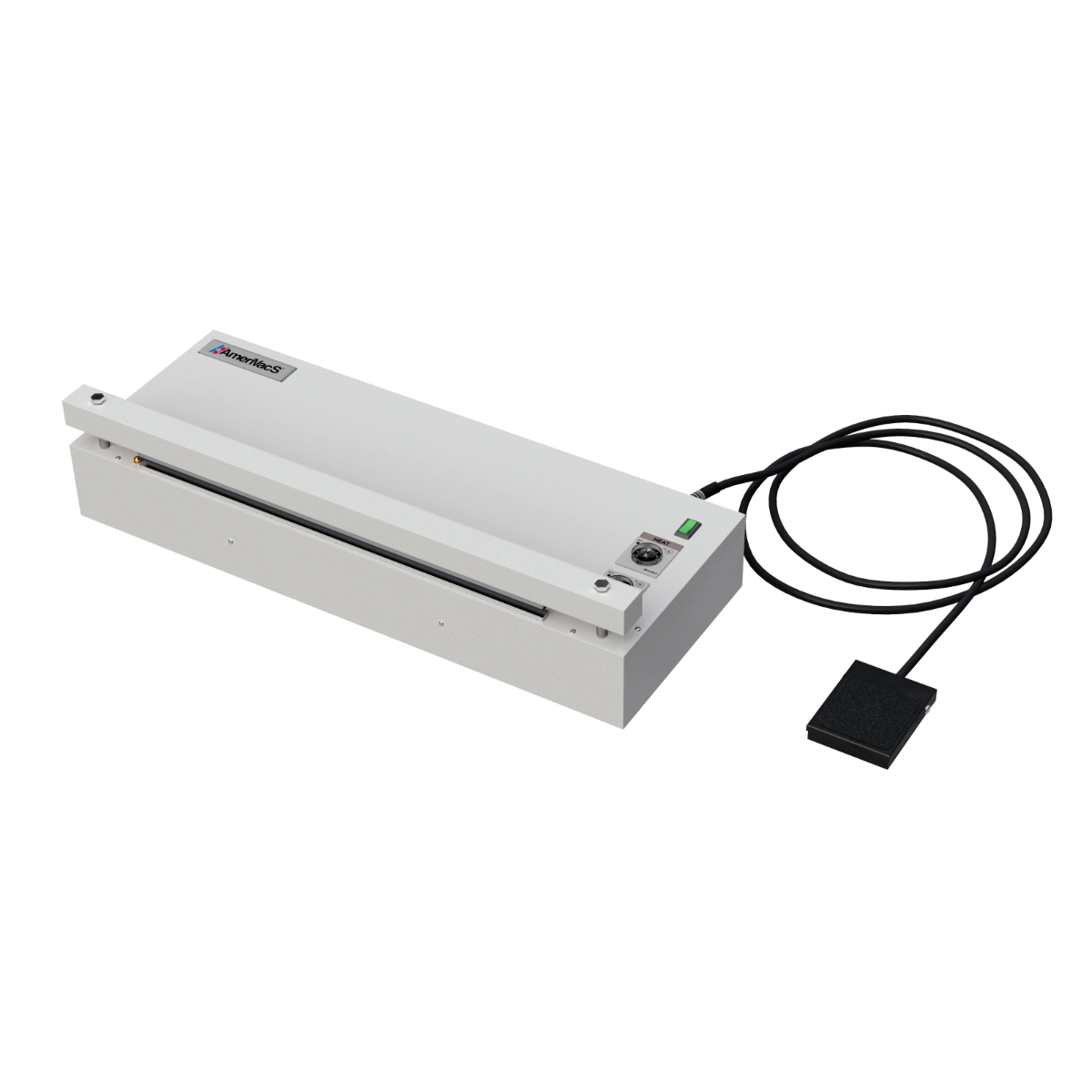

CE-AVP Pneumatic Impulse Sealer

Name: CE-AVP Pneumatic Impulse Sealer
Brand: AmeriVacs
SKU: CE-AVP
Price: 1595.00 USD
Availability: InStock

The AVP series was designed for heavy-duty applications. A one-tap steel-encased foot switch provides hands-free operation.

SKU#: CE-AVP

$1,595.00

or Request a Quote

(866) 520-3248

Details

The CE-AVP Series' side-mounted heat and cool timers, fitted to a powder coated steel chassis, regulate seal parameters that are critical to obtaining airtight and watertight seals. The CE-AVP will not fire an impulse until the upper and lower jaw completely meet, further ensuring operator safety and uncompromised seal integrity. The pressure bar is powder coated aluminum. Made of professional grade components, the AVP is lightweight enough (29 lbs.) to be moved effortlessly in your facility.

Specifications

Max Seal Length: 20, 25, 30, 35, 50

Power Supply: 8, 9, 13, 15, 15 Amps @120 Volts A.C.

Seal Width: 1/4

Chamber Size (in): N/A

Seal Length (in): 20, 25, 30, 35, 50

Seal width (in): 1/4

Vacuum Flow (CFM): N/A

Max Vacuum Pressure (inHg): N/A

Air Requirements (CFM): 1

Amps @120 Volts A.C.*: 8, 9, 13, 15, 15

Unit Size (in)*: (28, 33, 40, 45, 60) L x 10W x 7H

Unit Weight (lbs)*: 35, 41, 55, 62, 100

Max Temperature**: 500F

Ship Weight (lbs)*: 34, 41, 56, 69, 89

Ship Dims (in)*: (37, 41, 47, 53, 67) L x 18W X 16H

Downloads

CE-AVP Pneumatic Impulse Sealer Brochure (Size: 254.3 KB)

CE-AVP Pneumatic Impulse Sealer Brochure
