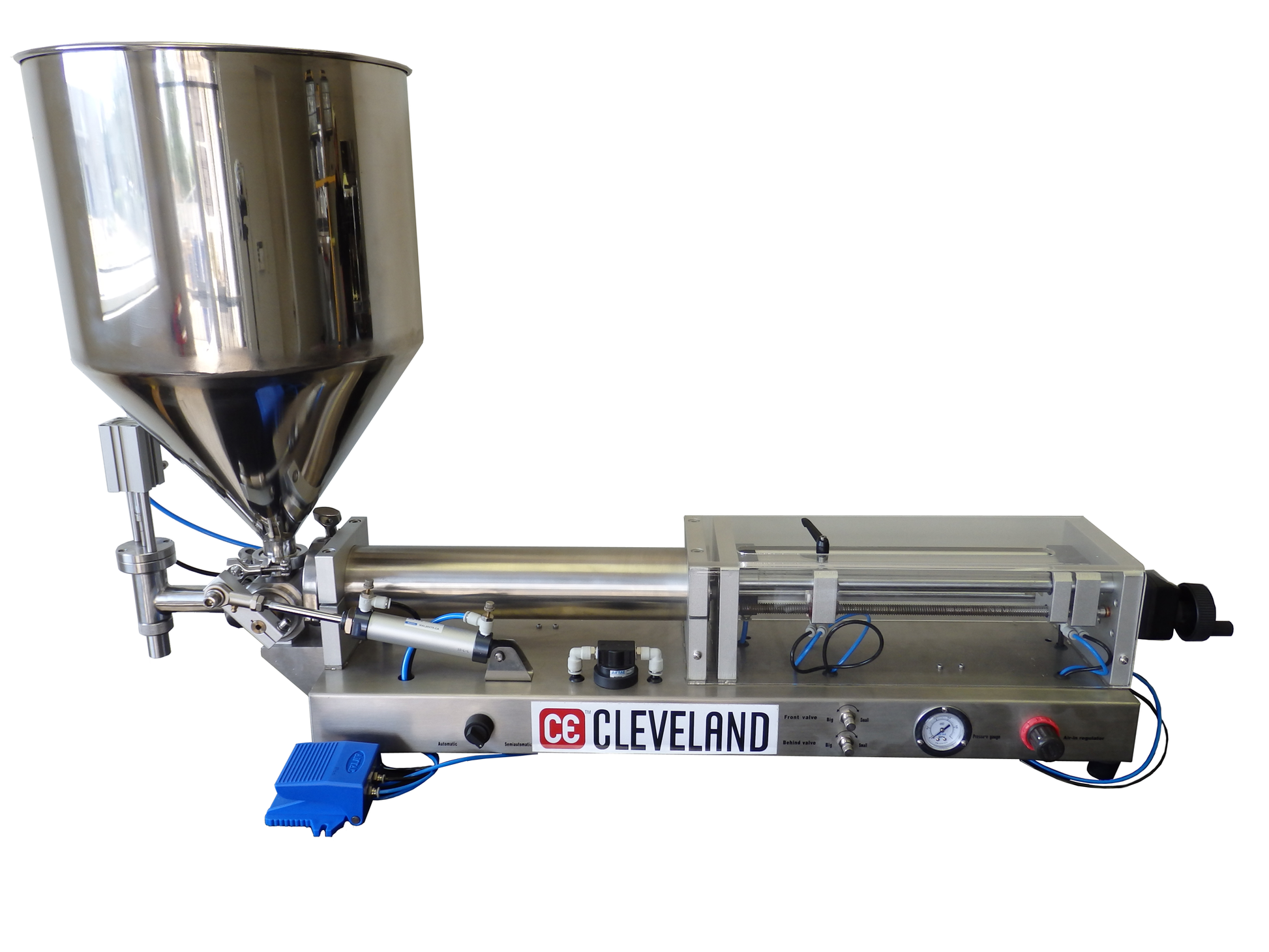

SGP Cream & Liquid Piston Filler Machine

The Cleveland SGP Series liquid piston fillers do not require electricity. The SGP series work great in environments in which 110V electricity is not available and in extremely wet environments. The fill cycle is actuated by a foot pedal which triggers the fill cycle. Ideal for chemical and flamable applications.

This single head liquid piston filler fills capacities from 0.34 - 2.0 oz (10ml - 60ml) at accuracies of +/-1% for liquids and +/-2% for creams and pastes. The SGP-60 liquid piston filler has an output of 0-50 cycles per minute. Comes with standard 3 Gallon Supply tank upgradable up to 15 gallons.

Model: SGP-60

Capacity: 0.34 - 2.0 oz / 10ml - 60ml

Fill Range: 0.34 - 2.0 oz / 10ml - 60ml

Head: Single

Supply: 3 Gallon
*Upgrade 5 or 8 gal

Construction: 316 stainless steel (food grade)
Fully Pneumatic

Output: 0-50 cycles per minute

Power Supply: Air: 30 gal Air Compressor 5 cfm 90 psi

Warranty: 1 Year Warranty

Accuracy: +/-1% Liquids, +/-2% Creams
