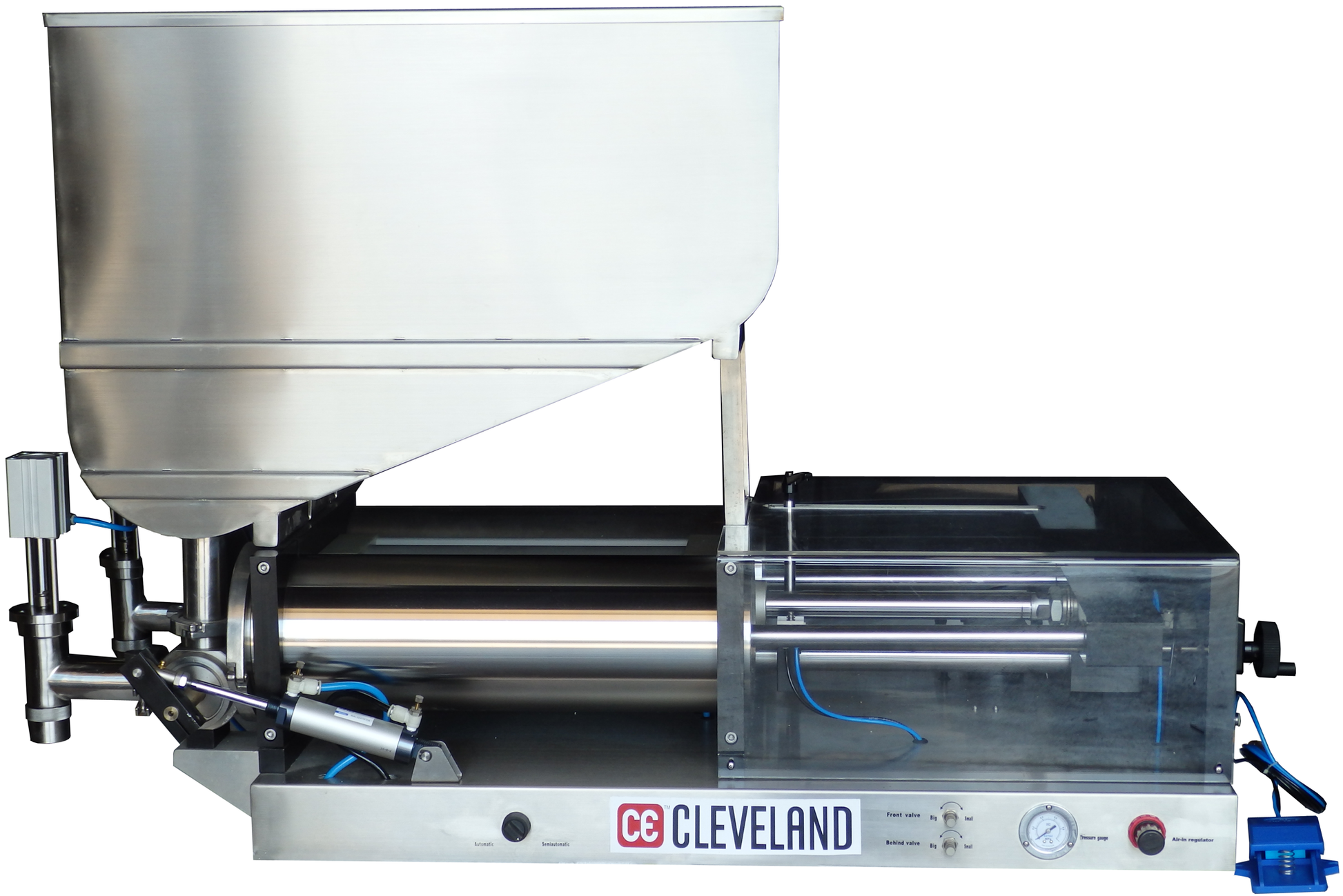

SGP Dual Head Cream & Liquid Piston Filler Machine (Large Capacity)*

Name: SGP Dual Head Cream & Liquid Piston Filler Machine (Large Capacity)*
Brand: Shifeng Pack
SKU: SGP-1000-D
Availability: OutOfStock
Rating: 5.0 (13 reviews)

Fill Range: 4.0 - 33.5 oz / 100ml - 1000ml
Air Supply: 5 cfm @ 90 psi
Accuracy: +/-1% Liquids, +/-2% Creams

Standard with Custom 26 Gallon Hopper

SKU#: SGP-1000-D

$7,255.00

Shipping calculated at checkout.

Filling Capacity: SGP-1000-D (Fill 100-1000ml)

SGP-1000-D (Fill 100-1000ml) SGP-5000-D (Fill 500-5000ml)

or Request a Quote

866-888-6327

Details

The Cleveland SGP Series liquid piston fillers do not require electricity. The SGP series work great in environments in which 110V electricity is not available and in extremely wet environments. The fill cycle is actuated by a foot pedal which triggers the fill cycle. Ideal for chemical and flamable applications.

Specifications

Model: SGP-D-1000-2

Capacity: 3.5 - 33.5 oz / 100ml - 1000ml Per Head

Head: Dual

Supply: 26 Gallon

Construction: 316 stainless steel (food grade)
Fully Pneumatic

Output: 0-30 cycles per minute per head

Power Supply: Air: 30 gal Air Compressor 5 cfm 90 psi

Warranty: 1 Year Warranty

Accuracy: +/-1% Liquids, +/-2% Creams

Downloads

SGP series Breakdown (Size: 8.2 MB)

SGP series Breakdown
SGP Series Piston Filler Product Brochure (Size: 383.6 KB)

SGP Series Piston Filler Product Brochure
SGP-5000 Fully Pneumatic Piston Filling Machine -Operator Manual (Size: 4.9 MB)

SGP-5000 Fully Pneumatic Piston Filling Machine -Operator Manual

Videos

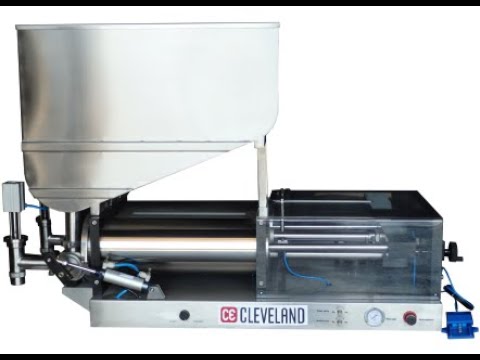

Dual Head Liquid/Cream Piston Filler | SGP-5000-D |
