SGY Dual-Head Semi-Automatic Liquid Piston Filler (10–5,000 ml)

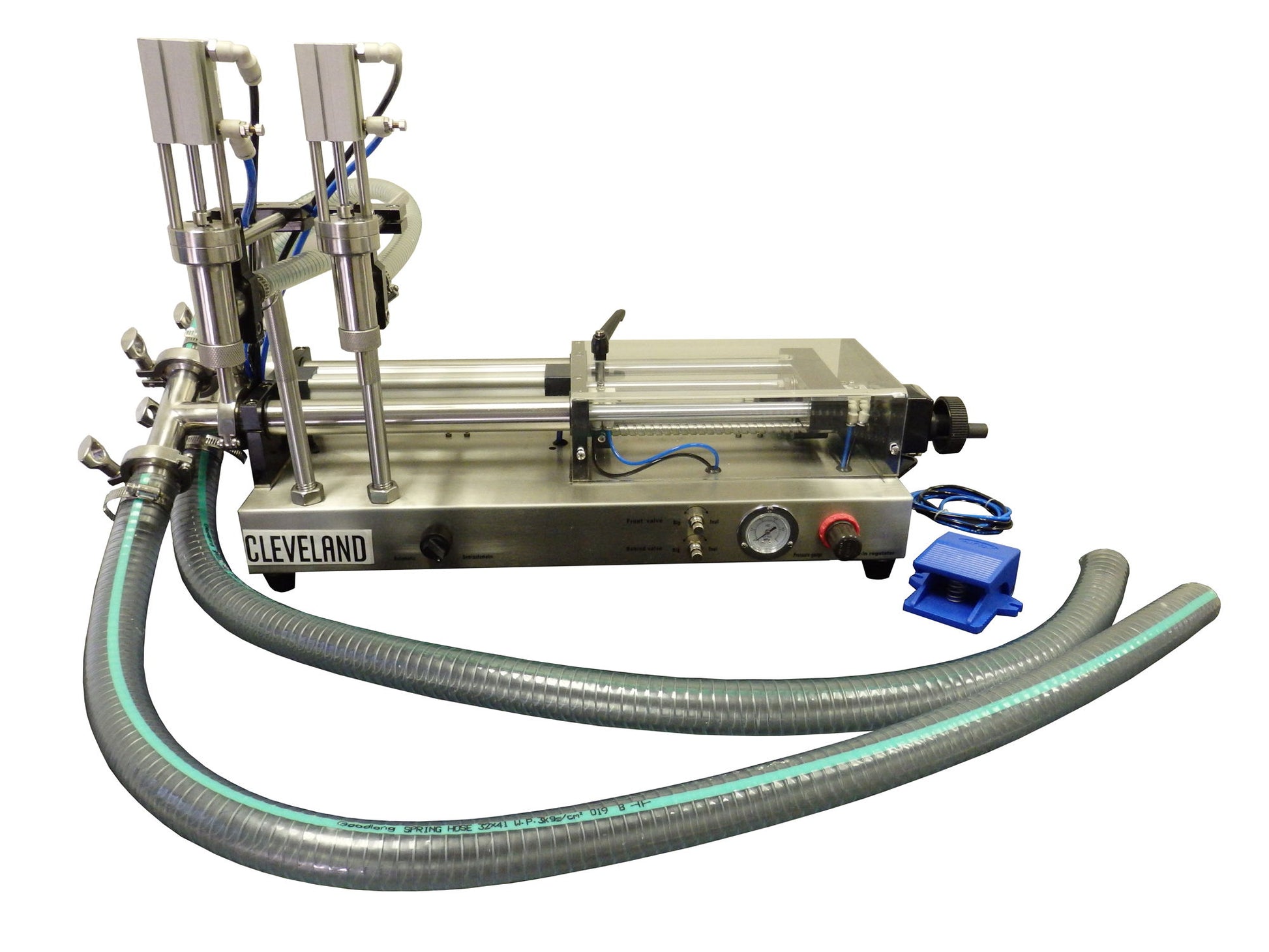

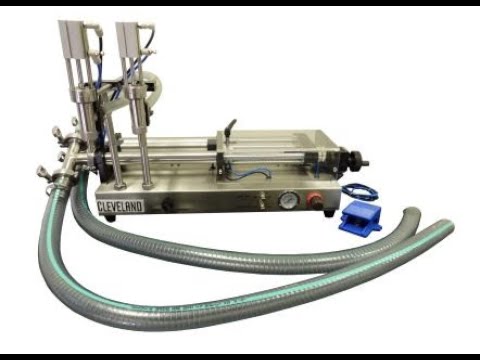

The SGY Dual-Head Piston Filler from Cleveland Equipment is engineered specifically for free-flowing liquids — water, juices, oils, tinctures, cleaning solutions, and other low-to-medium viscosity products. With two synchronized filling heads and five capacity variants spanning 10 ml to 5,000 ml, it delivers precise, repeatable fills at double the throughput of a single-head machine.
Note: The SGY series is designed for liquid products. For creams, gels, pastes, or highly viscous products, see the SGP series.
Key Features
-
Dual-head design — fills two containers simultaneously for maximum throughput
-
Wide capacity range — five variants from 10–60 ml up to 500–5,000 ml to match your production needs
-
Liquid-optimized — precision-tuned for free-flowing liquids with ±1% fill accuracy
-
Semi-automatic operation — foot pedal activation for operator control
-
Stainless steel contact parts — food-grade and compliant for beverage, pharmaceutical, and personal care applications
-
Easy breakdown — fast disassembly for cleaning and product changeovers
Capacity Variants
- SGY-60-D: Fill range 10–60 ml
- SGY-120-D: Fill range 30–120 ml
- SGY-250-D: Fill range 45–250 ml
- SGY-1000-D: Fill range 100–1,000 ml
- SGY-5000-D: Fill range 500–5,000 ml
Ideal Applications
The SGY Dual-Head is ideal for food & beverage (juices, oils, sauces, water), personal care (serums, toners, mouthwash), pharmaceuticals (liquid medications, tinctures), and household & industrial (cleaning solutions, lubricants). If your product flows freely and you need dual-head speed, the SGY is your machine.
Cleveland Equipment — Industrial Packaging Specialists
Cleveland Equipment supplies semi-automatic and automatic packaging machinery to manufacturers, co-packers, and production facilities across the United States. Our team provides pre-sale consultation and after-sale support to help you select the right filling solution for your line.
