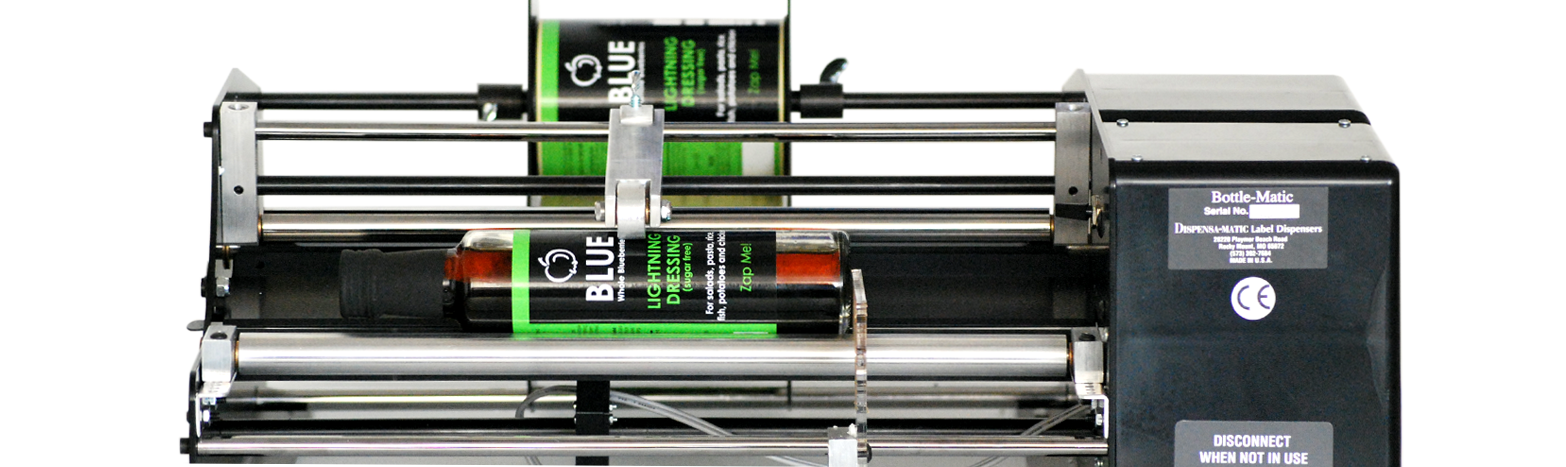

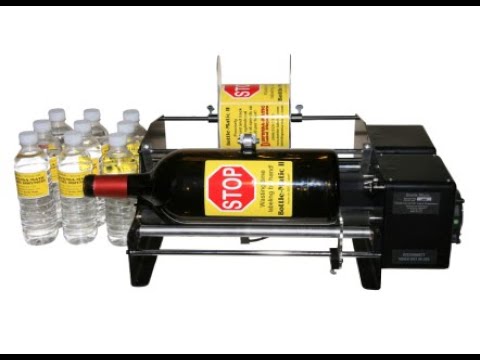

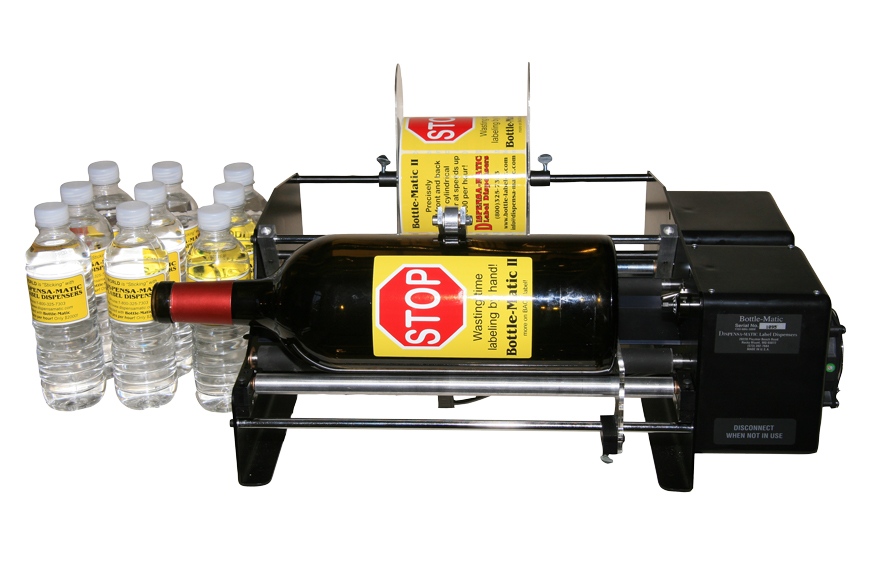

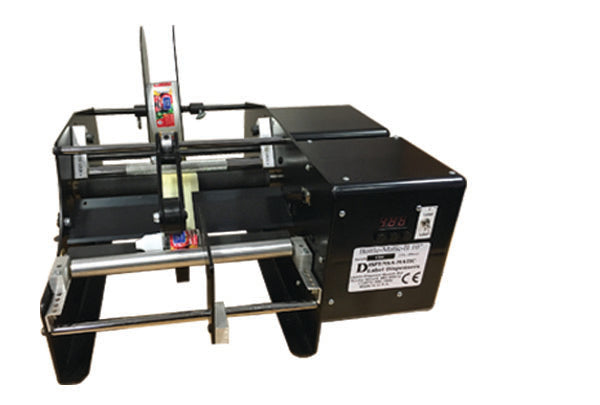

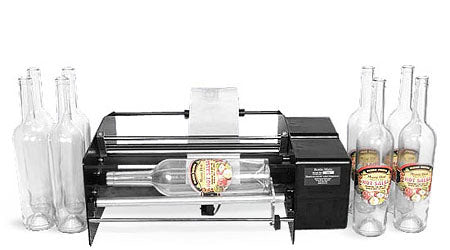

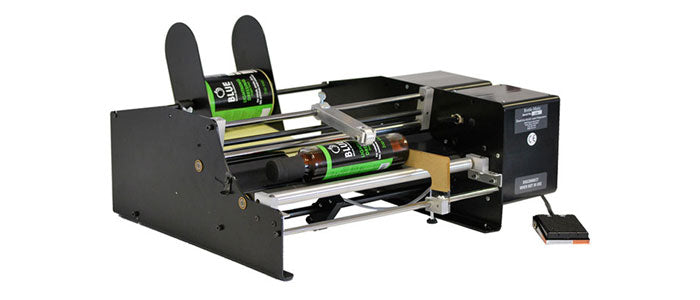

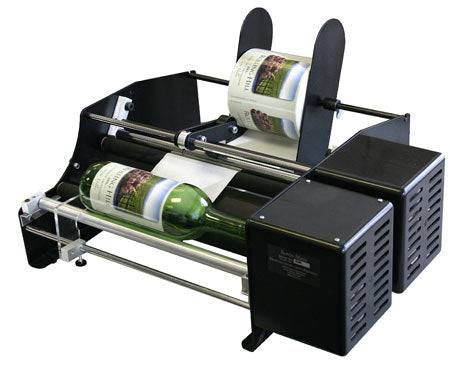

Bottle-Matic Semi-Automatic Bottle Label Applicator

If you're ready to step up your production, it's time for the Bottle-Matic bottle labeler. Bottle-Matic is the perfect machine for labeling your cylindrical objects! It can wrap your bottles, cans, tubes, and jars by simply pressing the foot-switch! It can even do tapered objects without customizing! With this premium quality equipment, you can wrap cans, bottles, tubes and jars of various shapes and sizes by just pressing the foot switch. You can even label tapered wine bottles. The labels are applied at more than 4.5 inches per second, with most water bottles in under 2 seconds.

• Container diameter: 1/2 inch to 6 inches
• Label widths: 0.5 inches to 8 inches
• Maintains 0.0625 inches side-to-side accuracy
• Handles more than 1000 pieces per hour with average dexterity
• Micro-switch activated; works with various types of labels

Accuracy: Accuracy within 1/64th" side to side on most containers.

Bottle Diameter: 1/2" - 6" in diameter

Bottle Height: 2"- 9" length (or longer if the item has a neck)

Minimum Label Size: Minimum gap between the die cut labels for the machine to work is 1/8". Patent Pending.NOTE: Narrow labels will work, but must be on backing paper of at least 1½" wide.

Label Core Size Diameter: 3" core and the core must be the same width as the label liner. Some fan-fold labels as long as the labels feed thru the web freely.

Construction: Bottle-Matic uses DUAL AC shaded pole gear motors, made in the USA

Maximum Roll Size: 9" diameter roll *Optional Upgrade 15" Diameter Roll

Output: 1200 pcs per hour with average dexterity

Power Supply: 15v standard. Optional 220v available.

Warranty: 3 Year Warranty
