CE-4500HVE Vertical Band Sealer
Couldn't load pickup availability
Details
Details

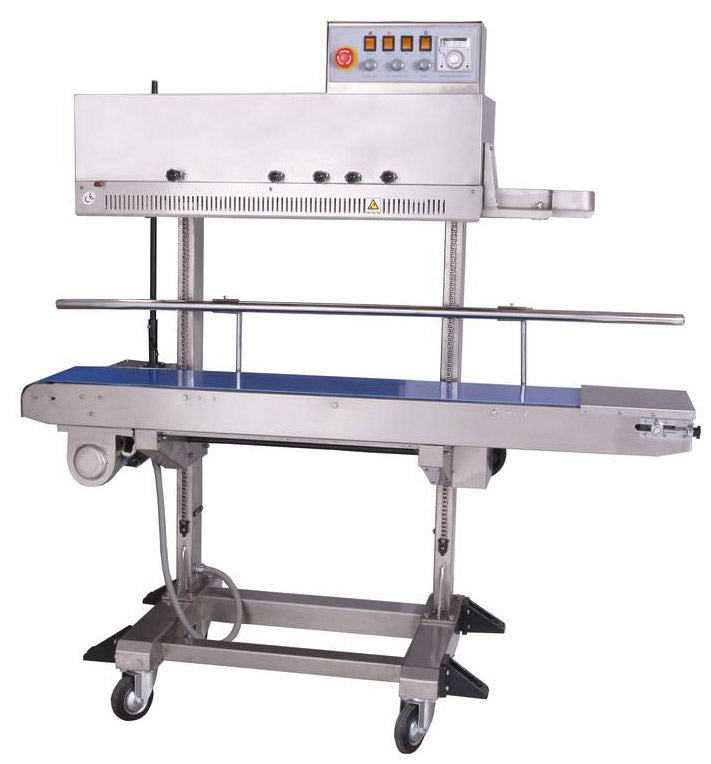

CE-4500HVE Vertical Band Sealer is a Vertical, Free Standing, Coding continuous band sealer that is suitable for sealing stand up pouches, liquid-type products, and all types of thermoplastic materials and bags. Perfect for application in the food, medical, and cosmetic industries. The CE-4500HVE is suitable for a wide range of bag heights with an adjustable sealing head and conveyor. Equipped with dry ink coding to print numbers or letters on the seal line.
- Durable stainless steel construction
- Easy Operation with Minimal Training
- Fast warm up time
- Ideal for medium duty and heavy duty applications
- Digital Thermostat (not shown)
- Product Counter (not shown)
- Vertical configuration makes this suitable for any product including liquids
- Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality
- Motorized rubber conveyor for speed control
- Knurled pressure wheels with variable pressure adjustment
- Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks
- Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)
- Dry ink coding allows for printing at the seal line
- Unit feeds from Right to Left
- Spare parts includes: PC Board, PTFE belt, wheel belt, fuse, motor brush, heating element, silica gel ring, silicone pin, and type set
| UNIQUE FEATURES | ADJUSTABLE SEALING HEAD |
| FEEDING | RIGHT TO LEFT |
| POWER | 110V / 60HZ |
| MOTOR POWER | 230 (1//3 HP) |
| SEALING SPEED | 0-394 INCHES/MINUTE |
| SEAL WIDTH | 8MM |
| TEMPERATURE RANGE | 0-300° C |
| SEALING POWER | 300 X 2 |
| CONVEYOR SIZE | 55" X 10" |
| SINGLE CONVEYOR LOAD | 11 LBS |
|
MAX CONVEYOR LOAD |
33 LBS |
| BAG SIZE (FILLED) | 3.9" - 27.0" |
| DISTANCE FROM CONVEYOR TO FLOOR | 19.6" - 41.3" |
| PRINTING HEATING POWER (W) | 40 X 2 |
| PRINTING OPTIONS | 20 CHARACTERS / LINE |
| DIMENSIONS | 57" X 27" X 58" |
| SHIPPING DIMENSIONS | 62" X 28" X 68" |
| WEIGHT | 344 LBS / 450 (gw) |
Specifications
Specifications
Downloads
Downloads
-
CE-4500HVE Continuous Band Sealer Product Brochure (Size: 600.4 KB)
CE-4500HVE Continuous Band Sealer Product Brochure
-
CE-4500-HVE Continuous Sealer Operation Manual (Size: 2.2 MB)
CE-4500-HVE Continuous Sealer Operation Manual
